sorin XTRA - List of Operator-Replaceable Parts; Pump Rotor; Figure 15-6 Sensors Located on Machine Top

Maintenance
15-6
20077/021 US XTRA Operator’s Manual
Sensors
Do not use abrasive cleaning solutions (refer to “External Surfaces” on page 15-2) on the following
sensors (pictured in Figure 15-6):
a. Bar Code Sensor
b. Hct Indicator
c. Transparency Indicator
d. Fluid Loss Sensor
e. RBC Line Clamped Sensor
f. RBC Sensors

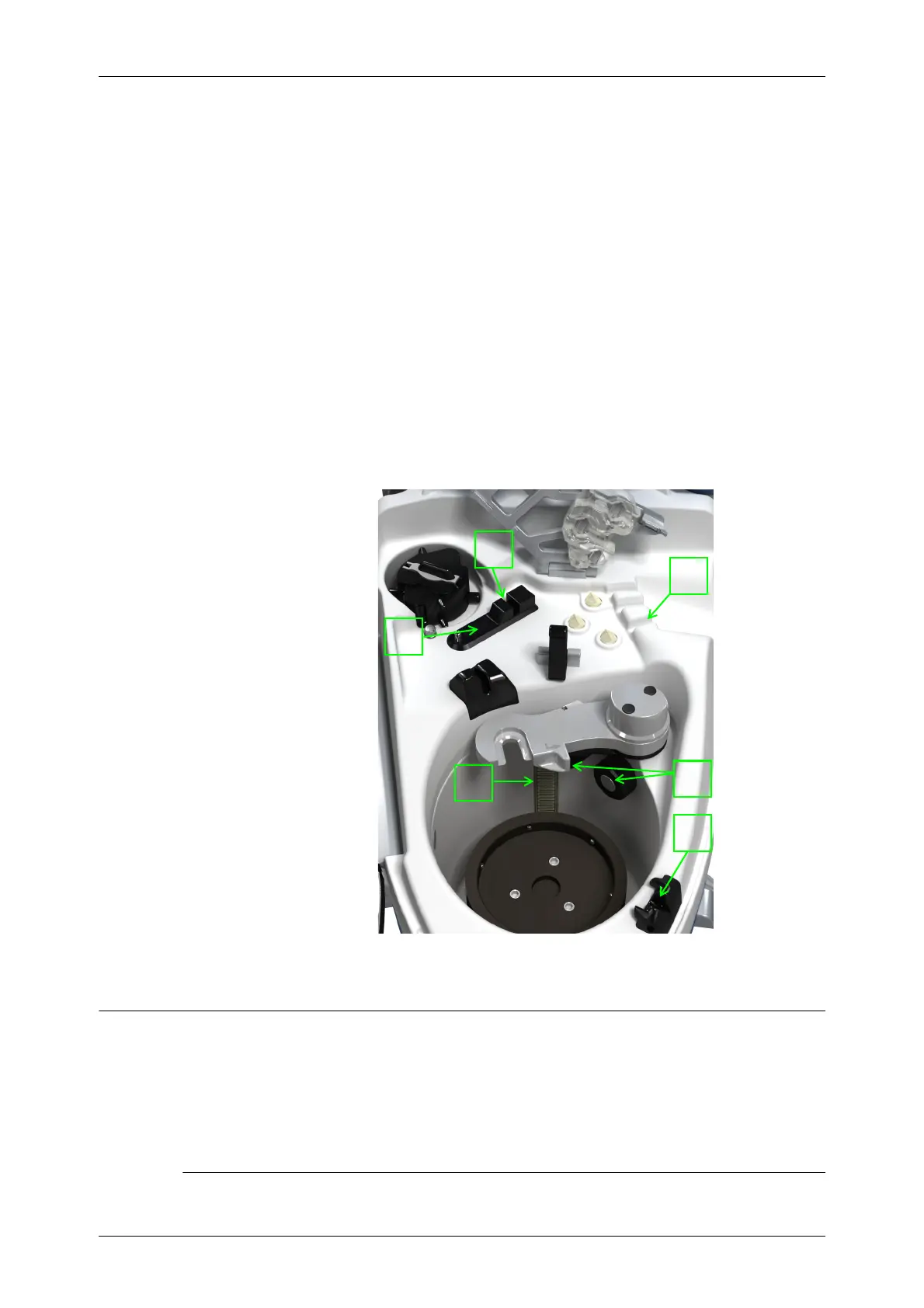

Figure 15-6 Sensors Located on Machine Top
List of Operator-Replaceable Parts
Some parts for the XTRA may be replaced directly by the operator and do not require installation by a
service technician.
The following parts are not expected to need replacement by the operator; however, an operator may
replace any of the following:
Pump Rotor
• Open the centrifuge cover;
CAUTION
Incorrect assembly of the vacuum overflow trap or assembly using damaged
components could allow an overflow to enter the machine and damage
internal vacuum system parts.
B
C
A
D
E
F
