System Description
X
TRA Operator’s Manual 20077/021 US 3-1
Chapter 3: System Description
Machine Components
The following two figures illustrate the major components of the XTRA system as viewed from the front
and the back.

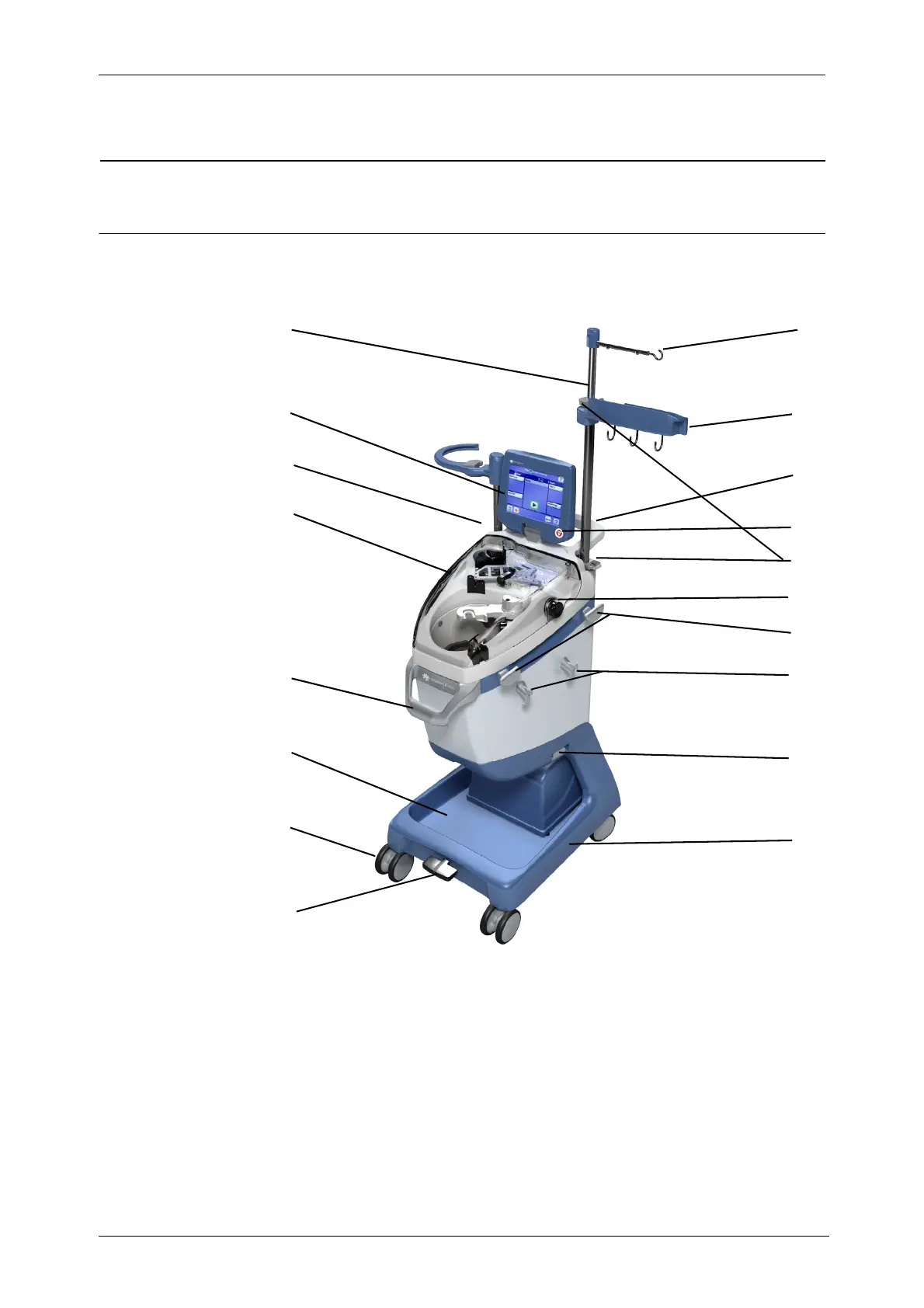

Figure 3-1 XTRA Front View
1IV pole 10Lower IV pole arm and hooks
2 Touch screen display panel 11 Rear handle
3 Reservoir holder 12 Stop button
4 Centrifuge lid 13 IV pole locking levers
5 Front handle 14 Centrifuge lid lock
6Storage area 15Tray holders
7Wheels 16Waste Bag Holder and Lateral
hooks
8 Parking brake pedal (on
front wheels)
17 Cart unlocking lever
9 Upper IV pole arm and hook 18 Cart
91
3
2
4
5
6
8
7
10
11
12
14
16
17
18
13
15
