sorin XTRA - Blood Collection Reservoir

System Description
3-18
20077/021 US XTRA Operator’s Manual
Blood Collection Reservoir
The XTRA Blood Collection Reservoir (see Figure 3-25) is a rigid 3,800 ml reservoir with a graduated
fluid level scale located in three positions at 120°.

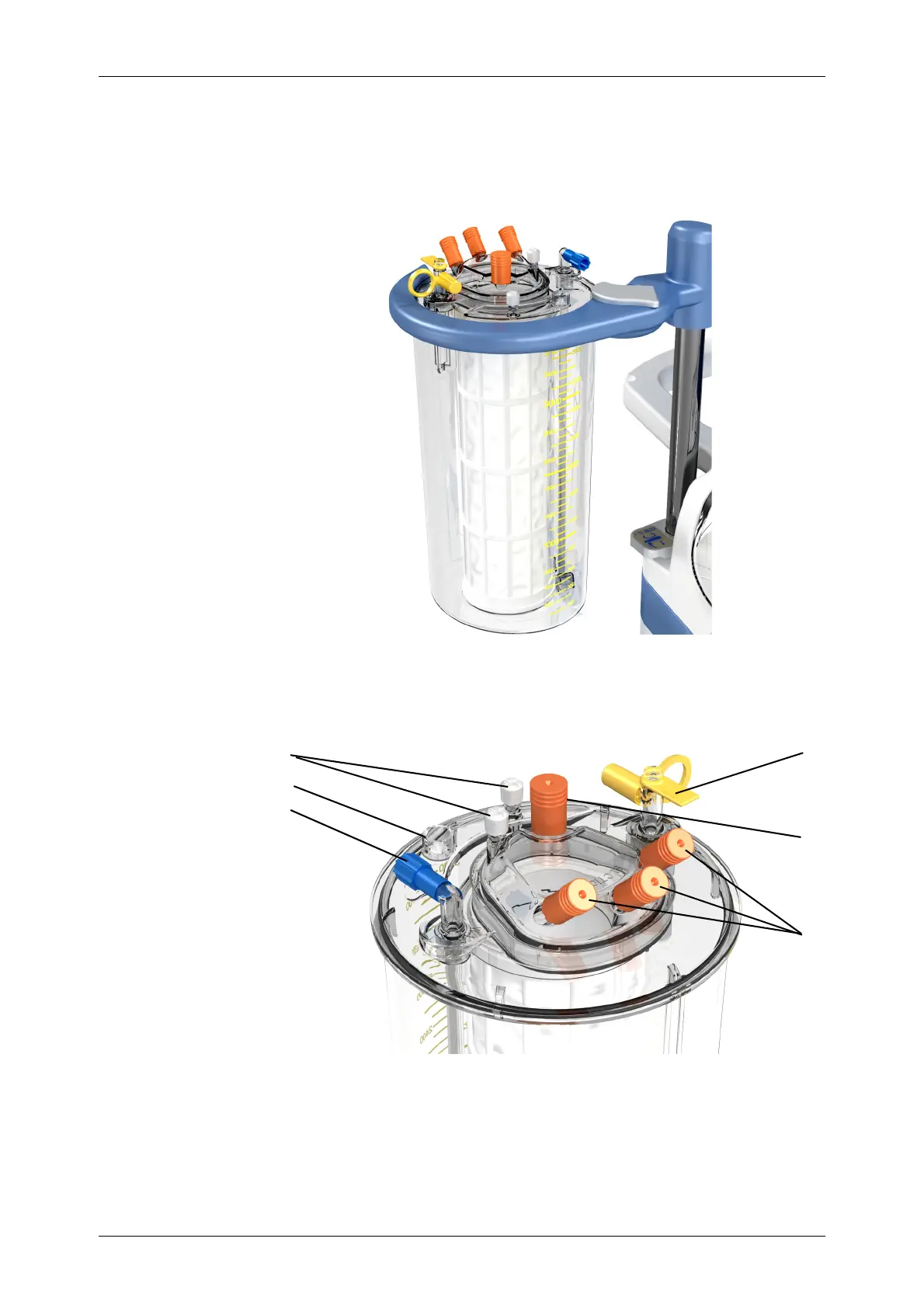

Figure 3-25 XTRA Collection Reservoir (TOP version)
Several ports are located on the top of the collection reservoir (see Figure 3-26). The vacuum port
(yellow port protector attached) is designed to accept 1/4 inch (6.4 mm) inside diameter tubing. The
three angled (45º) blood inlet ports are designed to accept a 1/4 inch (6.4 mm) slip fit connector.
Figure 3-26 Collection Reservoir Lid Ports
The two vent ports with luer cap (one filtered and one unfiltered) as well as the self-pressure relief
valve are located on the reservoir lid. The self-pressure relief valve is designed to relieve high vacuum
1 Luer-lock ports 4 Vacuum port
2 Pressure self-relief valve 5 3/8” vertical blood inlet port
3 Outlet port (TOP version) 6 1/4” angled inlet ports (3)
