Maintenance
15-4
20077/021 US XTRA Operator’s Manual
Clamps and Pump Loop Ejector

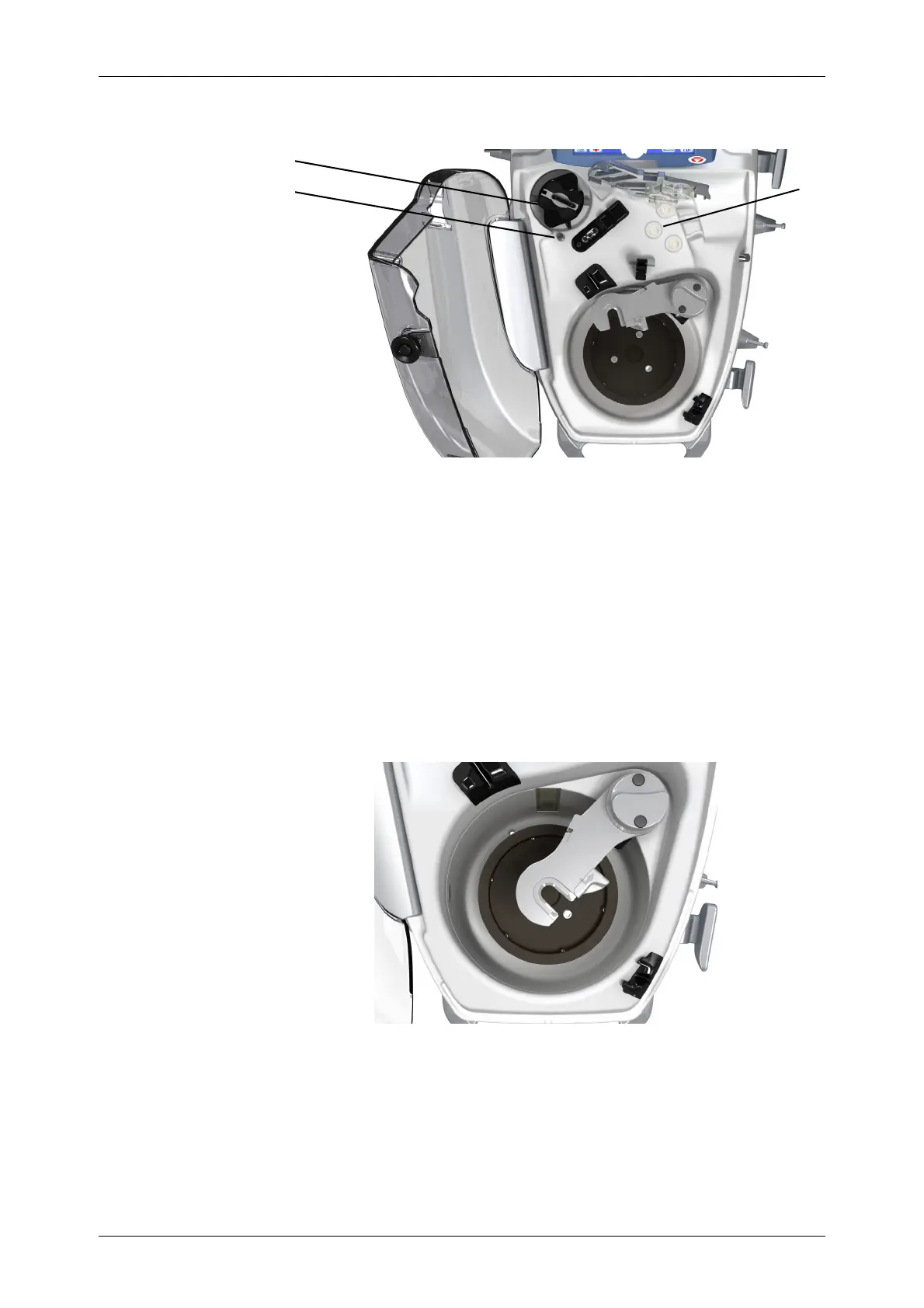

Figure 15-2 Clamps and Pump Loop Ejector
To clean clamps (see Figure 15-2), unlatch the clamp lid, lift it and follow the indications reported in
section “External Surfaces” on page 15-2. Follow the same indications for the pump loop ejector (see
Figure 15-2).
Pump Rotor
Remove the rotor (see Figure 15-2 and refer to “Pump Rotor” on page 15-6) and clean the area
underneath it following the indications reported in section “External Surfaces” on page 15-2.
Centrifuge Well
Swing open the centrifuge arm (see Figure 15-3) and clean the well following the indications reported
in section “External Surfaces” on page 15-2.
Figure 15-3 Centrifuge Well
Centrifuge Well Fluid Container
Whenever organic fluids enter it, the container must be cleaned with suitable disinfectant solution or
alternatively, replaced. Refer to “Centrifuge Well Fluid Container” on page 15-8.
Vacuum System Overflow Trap
Accumulation of dust, dirt, or other debris within the trap assembly may block air passage or prevent
effective vacuum shutoff. Cleaning should be performed when liquid overflows into the trap.
1 Pump rotor 2 Pump loop ejector
3Clamps
3
2
1
