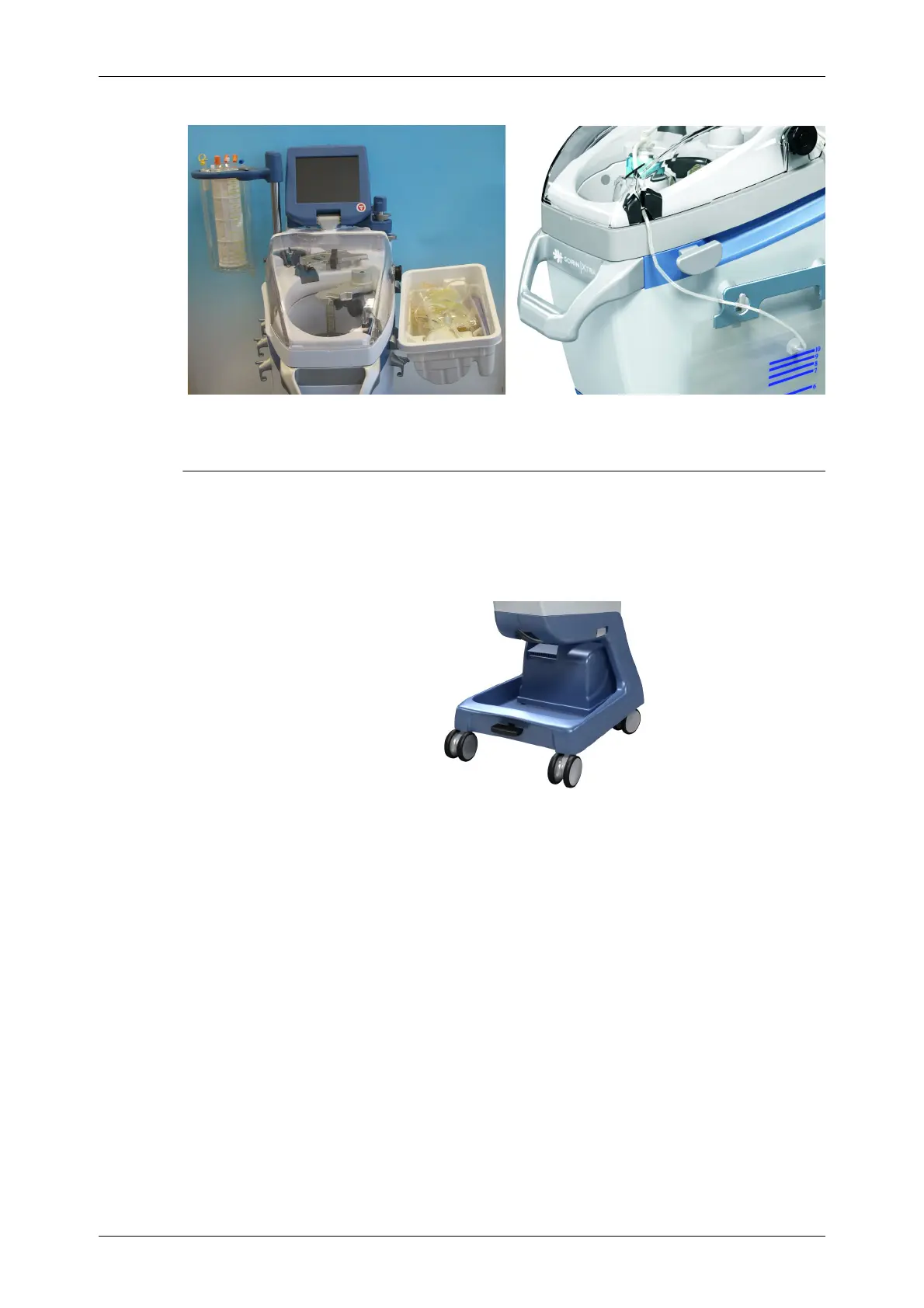

Figure 3-5 Left: Disposable Tray on Tray Holders; Right: Waste Bag on Right-Side Hooks
Cart
The XTRA cart provides high storage capacity, allows maneuvering the unit, and simplifies its transport
(see Figure 3-6).
The cart is a dedicated separate element, fixed to the body of the machine by means of two spring
levers.
Figure 3-6 Cart
Maneuverability
The XTRA cart has four free-swiveling large diameter wheels to enhance maneuverability. A foot lever,
located on the front of the machine, controls the locked/unlocked state of the front wheels.
The back wheels have an independent brake pedal for each wheel.
The foot lever may be set in one of two positions:
• Up position: the front wheels are free to rotate and swivel.
• Down position: locks the front wheels to prevent both rotation and swivel.
The two back wheel pedals can be in the following positions:
• Up position: the corresponding wheel is free to rotate and swivel.
• Down position: the corresponding wheel is locked to prevent rotation and swivel.
Storage Capacity
The XTRA cart provides a high storage capacity. It has been designed to store the following elements:
• One 5 liter saline bag (or two 2 liter saline bags, or five 1 liter anticoagulant bags),
To Next Page
