System Description
3-6
20077/021 US XTRA Operator’s Manual

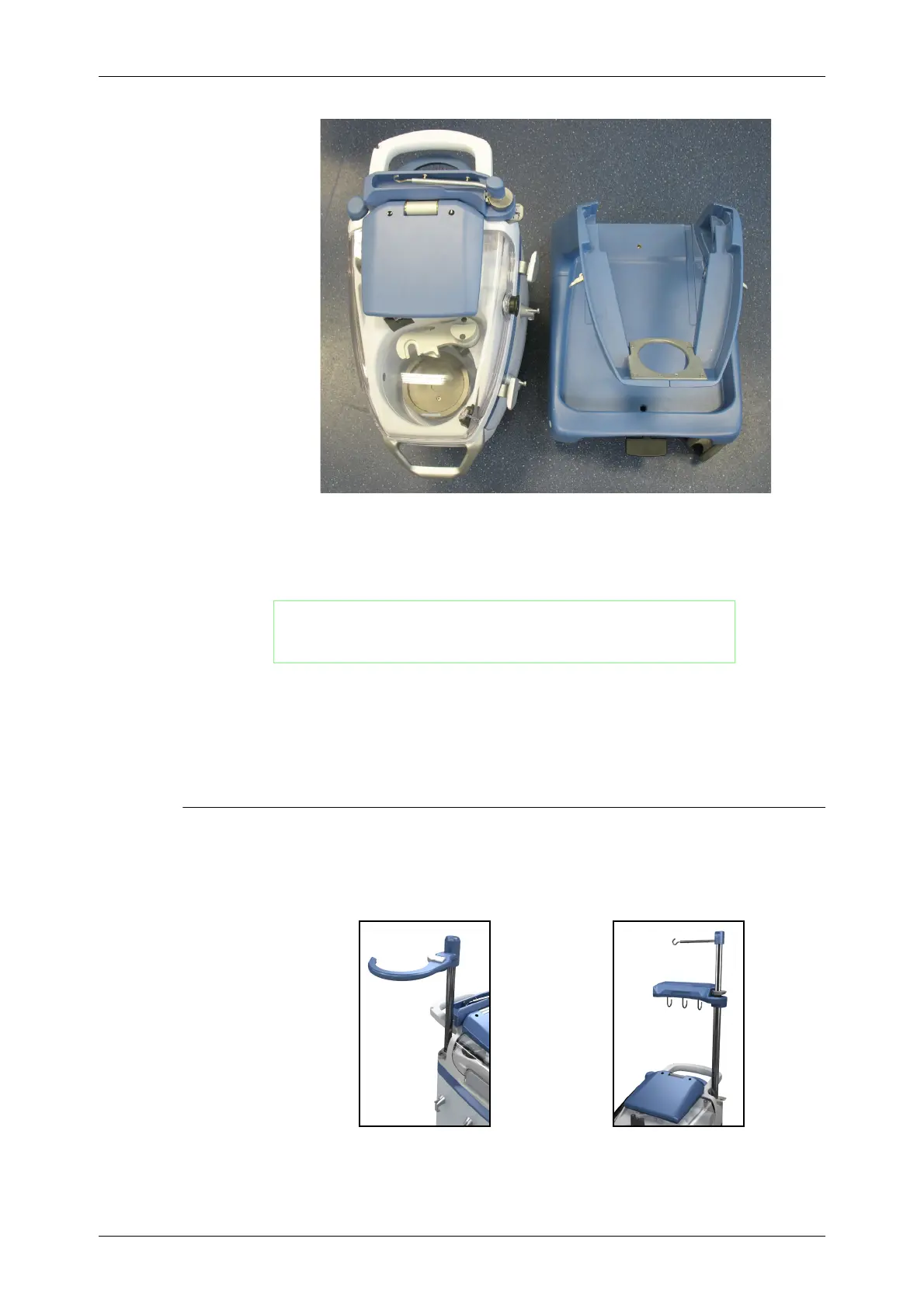

Figure 3-9 XTRA Body and Cart
When fixing the unit, ensure the body is aligned with the cart inserts, then close the two lateral pins
by closing the lateral spring levers, keeping both hands away from the pins.
IV Pole and Reservoir Pole
The two hook bars of the IV pole, as well as the reservoir pole and its holder, are designed to nest
when they are collapsed for transport or storage. As a result, the height of the X
TRA with the IV pole
and reservoir pole fully collapsed is compact. The IV pole and the reservoir are lifted by pulling the
pole up and lowered by releasing the corresponding locking lever.
Figure 3-10 Reservoir and IV Pole
WARNING
When closing the lateral pins, ensure your fingers are kept away
from the levers; otherwise you expose yourself to a serious risk of
injury.
CAUTION
Be sure to properly place and hook the machine to the cart in order to avoid
the danger of the machine falling.
