Note:
These Quick Operating Instructions represent only an
overview of the operating procedures. For a complete setup and
use of the machine, please refer to the Xtra Operator’s Manual.
XTRA Operator’s Manual 20077/021 US C-3

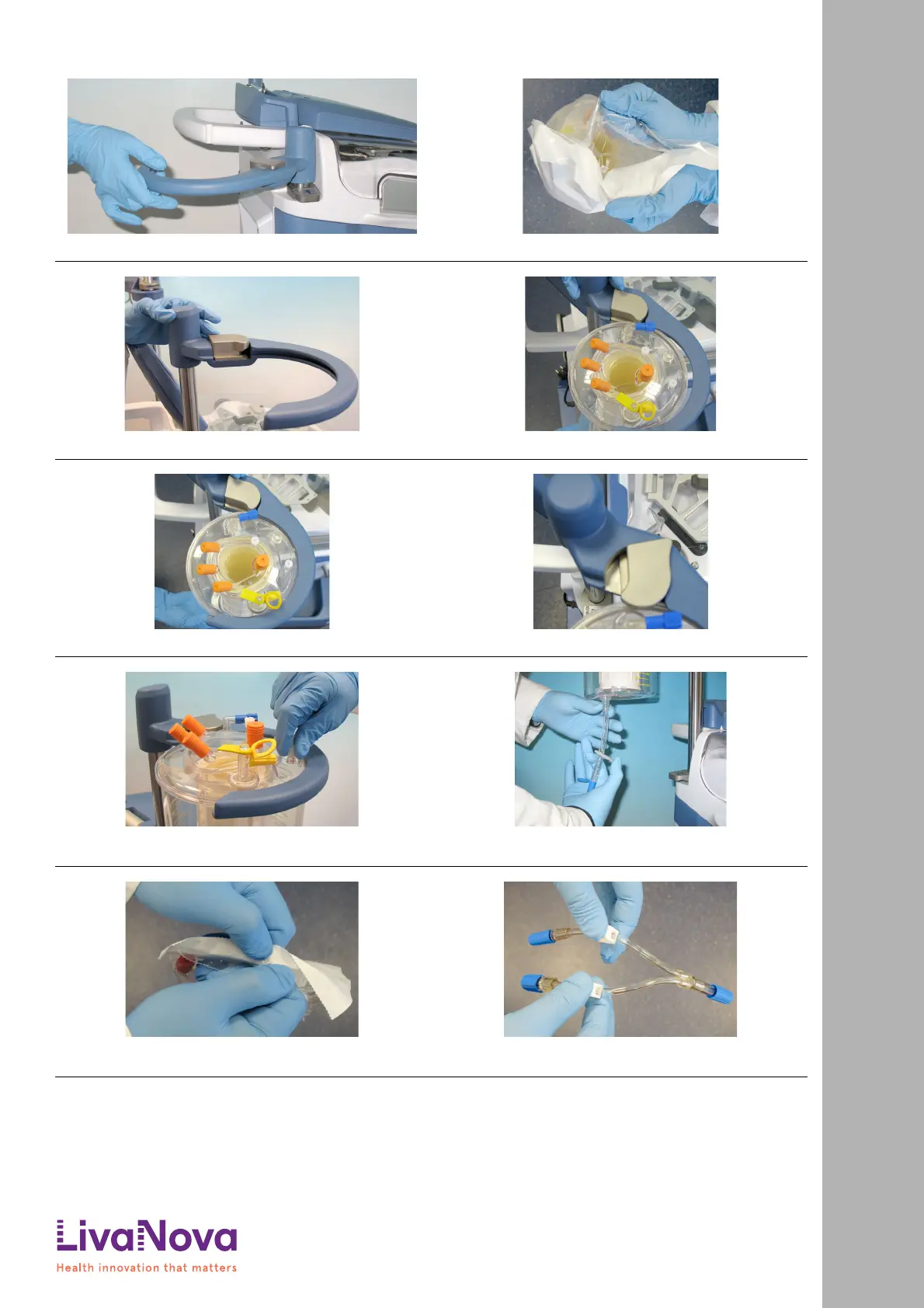

1. Install the Blood Collection Reservoir:
a. Swing open the reservoir holder and raise it to the desired height
1. Install the Blood Collection Reservoir:
b. Remove the Blood Collection Reservoir from its package
1. Install the Blood Collection Reservoir:
c. Keep the locking clip on the reservoir holder open
1. Install the Blood Collection Reservoir:
d. Slide the edge of the reservoir lid into the slot of the holder
1. Install the Blood Collection Reservoir:
e. Push the reservoir into position
1. Install the Blood Collection Reservoir:
f. Release the locking clip
1. Install the Blood Collection Reservoir:
g. Tighten all the caps and luer locks on the reservoir lid
1. Install the Blood Collection Reservoir:
h. In case you are using a Blood Collection Reservoir BOTTOM, connect the
outlet port and close the clamp on the bottom outlet port
1. Install the Blood Collection Reservoir:
i. Set up of the three-way adapter (Y adapter) for use in cardiac surgery (if
you are using it).
1. Install the Blood Collection Reservoir:
j. Close the clamps on the Y adapter branches waiting for subsequent
connections
Quick Start Instructions: Setting Up the Disposables
