Handles
The XTRA has three handles, designed to allow maneuverability and simplify the transport of the unit
(see Figure 3-3):
• Front handle for both transporting and maneuvering the system
• Rear handle at top of the machine for maneuvering the system
• Rear transport handle for lifting and transporting the machine body separate from the cart. This
handle is the under-side of the upper power cord wrap support.

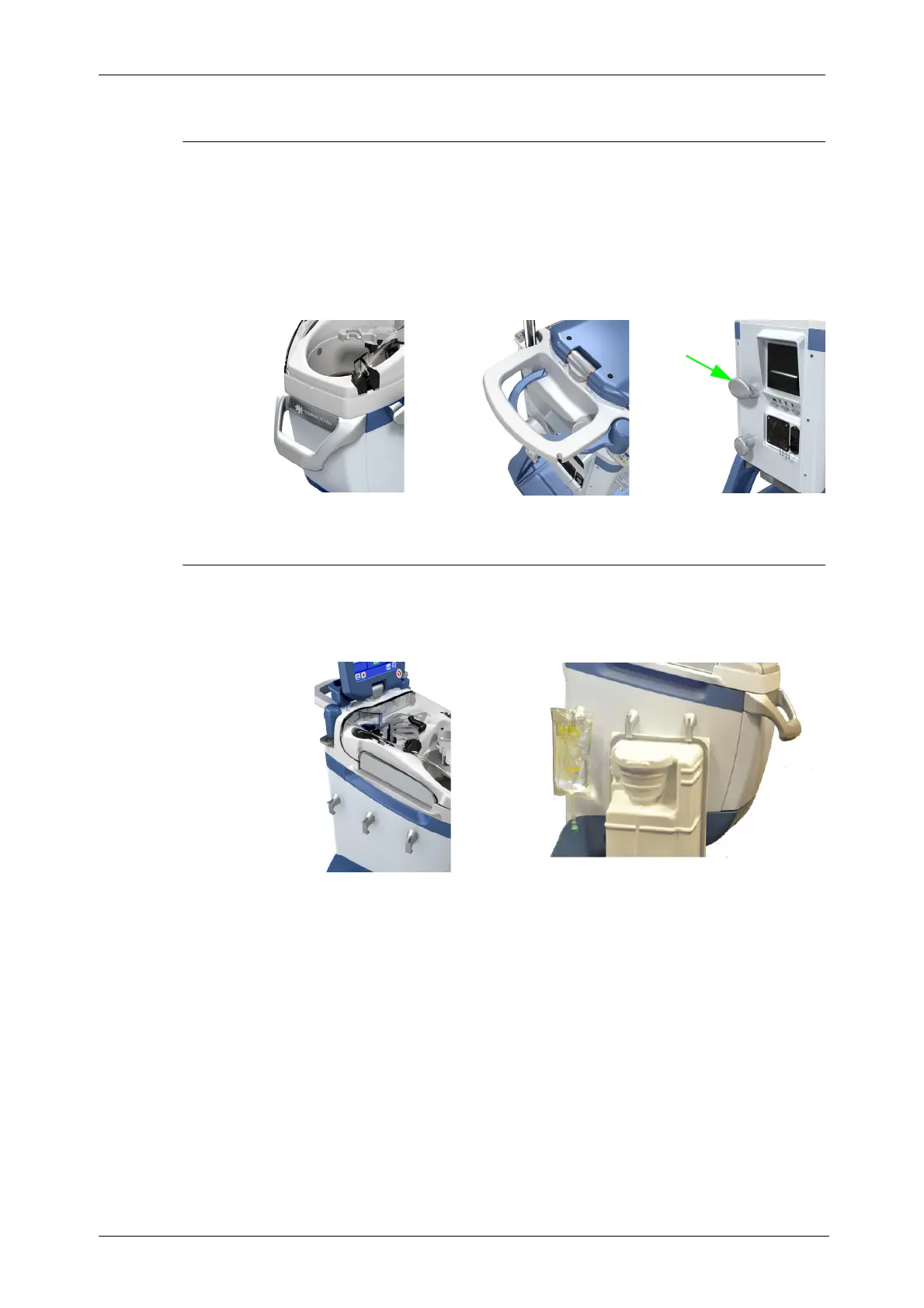

Figure 3-3 Front Handle (left), Rear Handle (center), and Rear Transport Handle (right)
Hooks and Tray Holders
In addition to the storage area present in the cart, the XTRA has three lateral hooks on the left side
(see Figure 3-4). These hooks are composed of an upper part designed to hang saline solution bags
and of a lower part designed to store the Bowl Set tray.
Figure 3-4 Hooks on Left Side of XTRA
In addition, a set of tray holders and hooks on the right side provide further storage capacity. The tray
holders support the tray of the Bowl Set during disposable set up, facilitating quick and easy
installation (see Figure 3-5 left). The two lateral hooks located below the tray holders are used to hold
the Waste bag during processing, and they provide additional storage capacity while not processing
(see Figure 3-5 right).
