sorin XTRA - Step 4: Installing the Bowl Set

Installing the Disposables
X
TRA Operator’s Manual 20077/021 US 4-7
Step 4: Installing the Bowl Set
Perform the following steps to install the Bowl Set:
1. Inspect the X
TRA Bowl Set tray for damage that may have occurred during shipment.
2. Hang the tray onto the two handles placed on the top right panel of the machine and open it.
3. Open the centrifuge lid (see Figure 4-5).

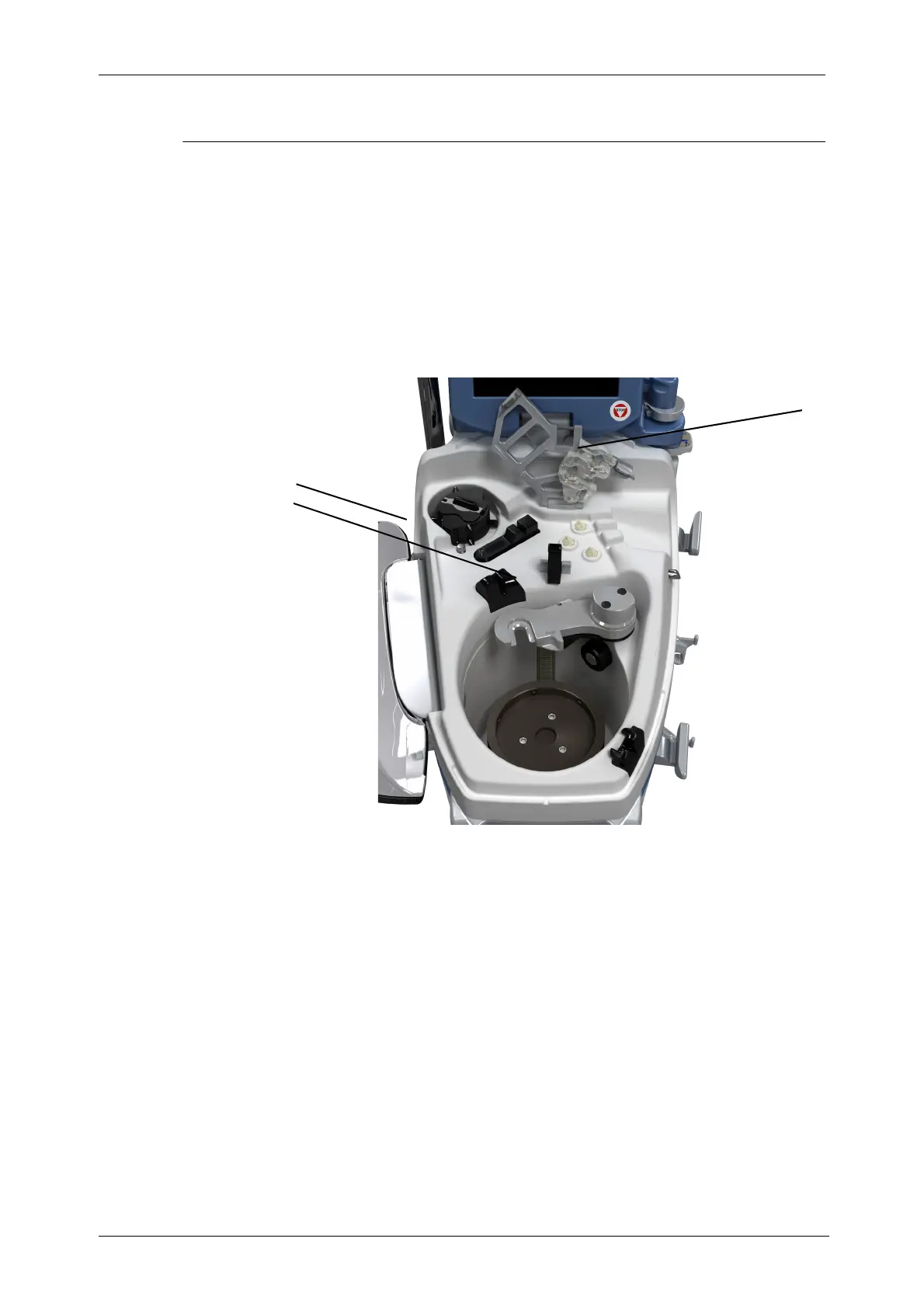

Figure 4-5 Machine Top
4. Swing open the centrifuge arm (see Figure 4-5).
5. Unlatch and open the clamp lid (see Figure 4-5).
6. Remove the bowl/tubing harness from the tray.
7. Remove the protective spacer from the upper part of the bowl
8. Lower the bowl onto the turntable.
9. Push the bowl straight down (see “A” in Figure 4-6) and close the centrifuge arm.
CAUTION
Use aseptic technique when installing disposables.
1 Centrifuge Cover 3 Clamp Lid
2Centrifuge Arm
1
2
3
