Chapter 1 — Library Overview Library Features
December 2019 User Guide—Spectra T200, T380, and T680 Libraries
34
5/12 VDC Power
Supply Modules
The 5/12 VDC power supply modules convert AC input to provide the 5 VDC
and 12 VDC power used by the robotics, drives, and QIPs or RIMs installed in
the DBAs. They also provide power to the LCD operator panel.

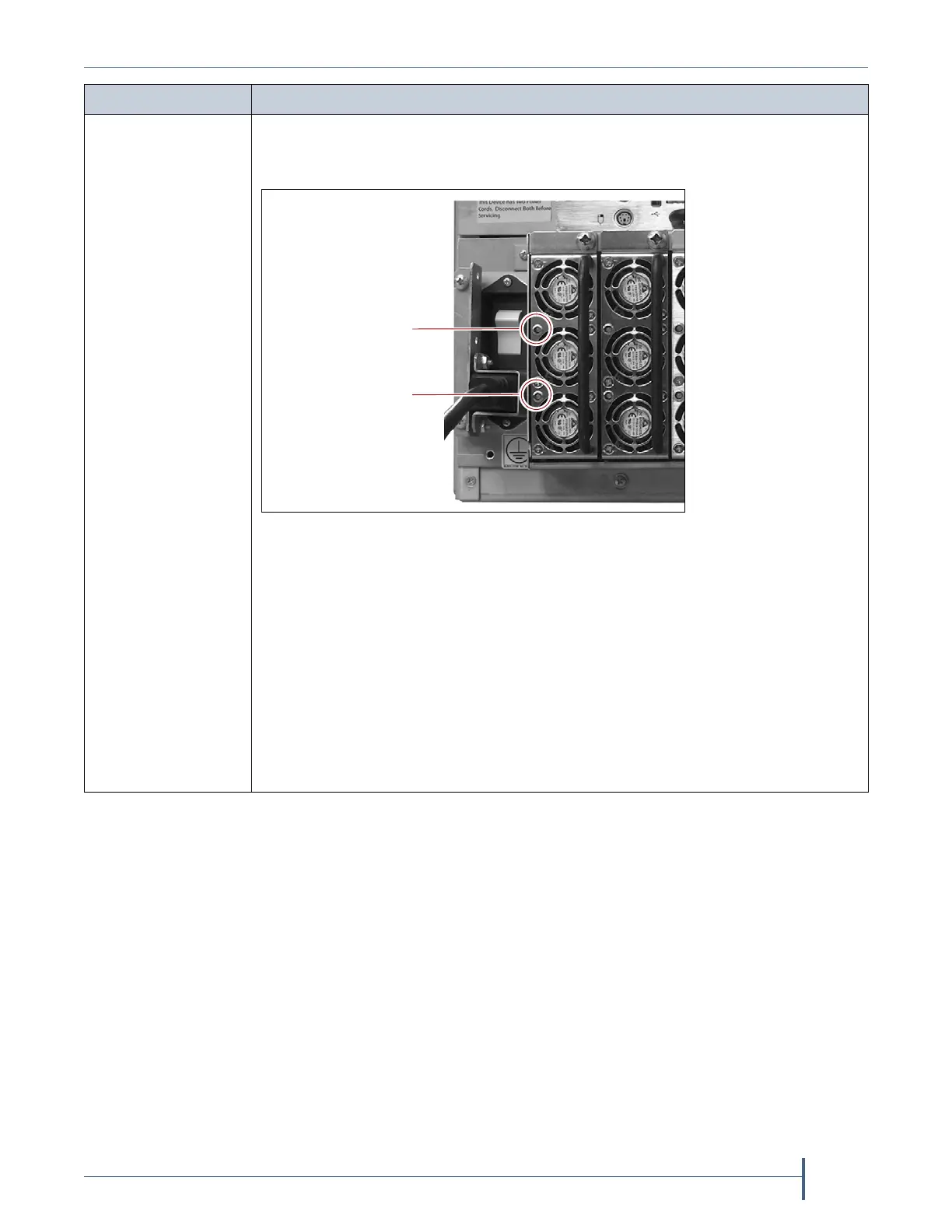

Figure 4 The 5/12 VDC power supply LEDs.
A minimum of one power supply per populated DBA is required. Installing an
optional N+1 power supply, where N is the number of populated DBAs,
provides redundancy and failover protection in the event that a single power
supply fails. See Redundant Power Supplies on page 73 for additional
information.
Each power supply module has two indicator LEDs, one for AC power status
and one for DC power status. The color of the LED indicates the status.
 Green—The power is on and functioning normally.
 Orange—The power supply has a fault condition.
 Off—The power is not on or the power supply module is not functioning
normally.
Component Description
DC power
AC power
status
status
