Tape Drives
The libraries support IBM LTO-2 and later generation Ultrium drives. T380
libraries also support TS11xx technology drives and T10K drives (not
shown). The drives are mounted in drive sleds, which are installed in the
DBAs. Each DBA can accommodate up to four drives. Drives are hot-
swappable to provide uninterrupted operation.
Notes:  SCSI drives require an F-QIP to be installed in the DBA where
they are installed to provide host connectivity.
 Beginning with BlueScale12.7.05, the library supports half-
height, Fibre Channel and SAS, LTO-7 and LTO-8 drives
using full-height drive sleds.

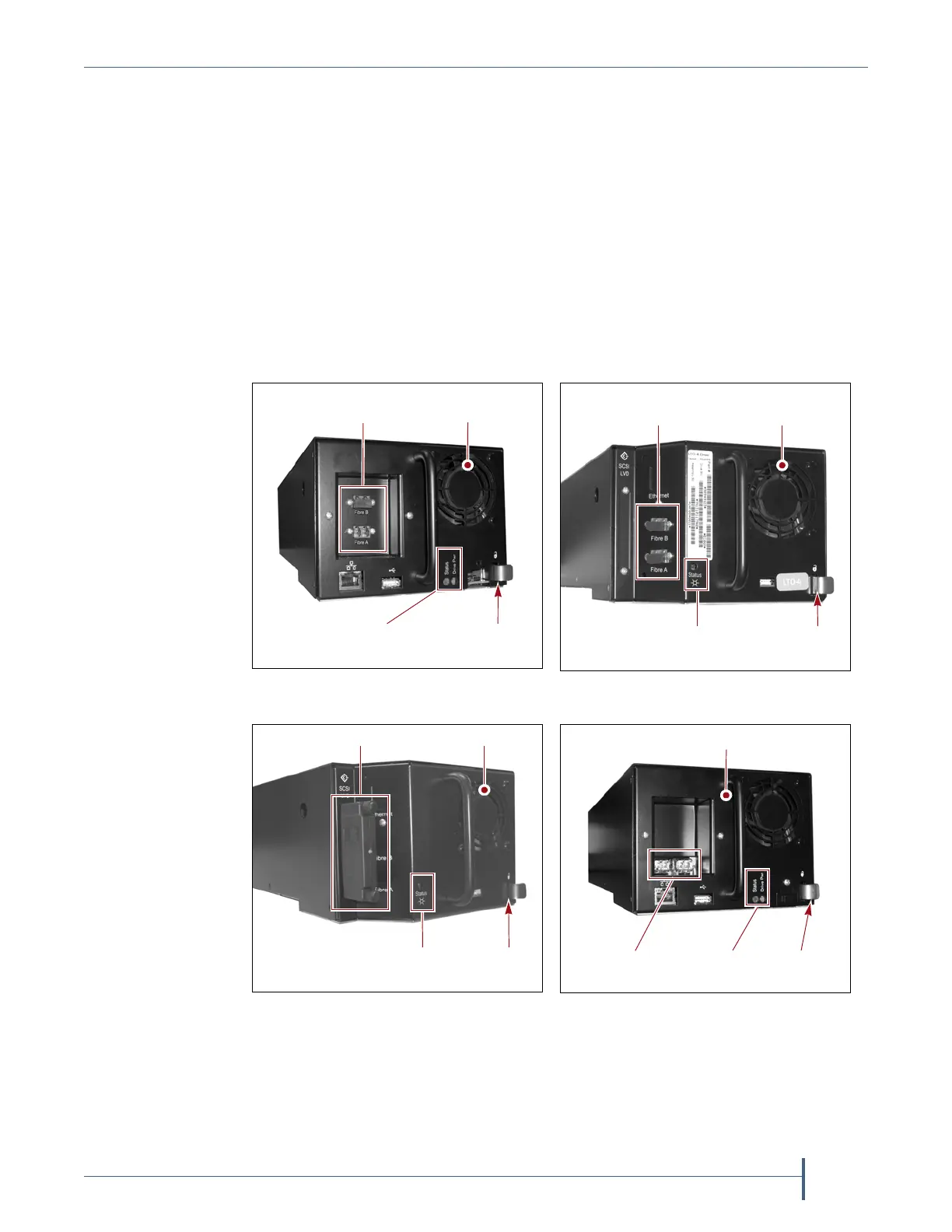

Figure 13 The Fibre Channel drive
sled (LTO-5 - LTO-7).
Figure 14 The Fibre Channel drive
sled (LTO-2 to LTO-4).
Figure 15 The SCSI drive sled. Figure 16 The TS11xx technology
drive sled.
Status and
Fibre Channel
connectors (2)
Lock
release
Drive sled
Power LEDs
Lock
release
Status
LED
Drive sled
Fibre Channel
connectors (2)
Lock
release
SCSI terminator
Drive sled
Status
LED
Fibre Channel
connectors (2)
Lock
release
Drive sled
Status and
power LEDs
