Chapter 2 ā Architecture Overview Fibre Channel Connectivity
December 2019 User GuideāSpectra T200, T380, and T680 Libraries
60

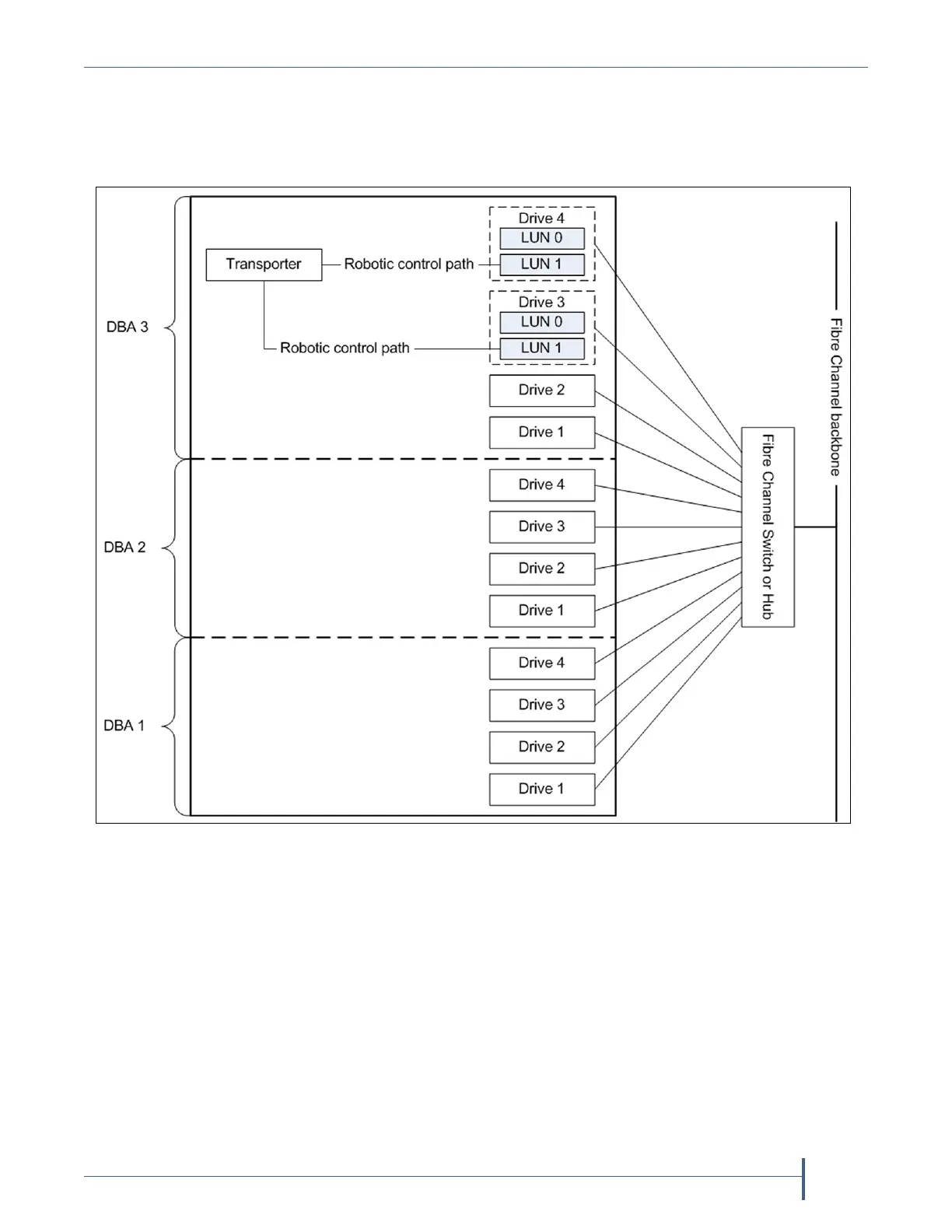

Figure 23 shows an example of a partition with two direct-attached Fibre
Channel drives providing the robotic control path. LUN 1 on the drives
provides the robotic control path over which the commands to the robotics
are received from the host.
Figure 23 An example of a partition with two direct-attached Fibre Channel drives providing the
robotic control path.
