Objet30 User Guide 6 Operating and Maintaining the Printer
DOC-34025 Rev. I 6-56
17. Using the Missing Nozzles ruler, determine the number of clogged
(“missing”) nozzles.

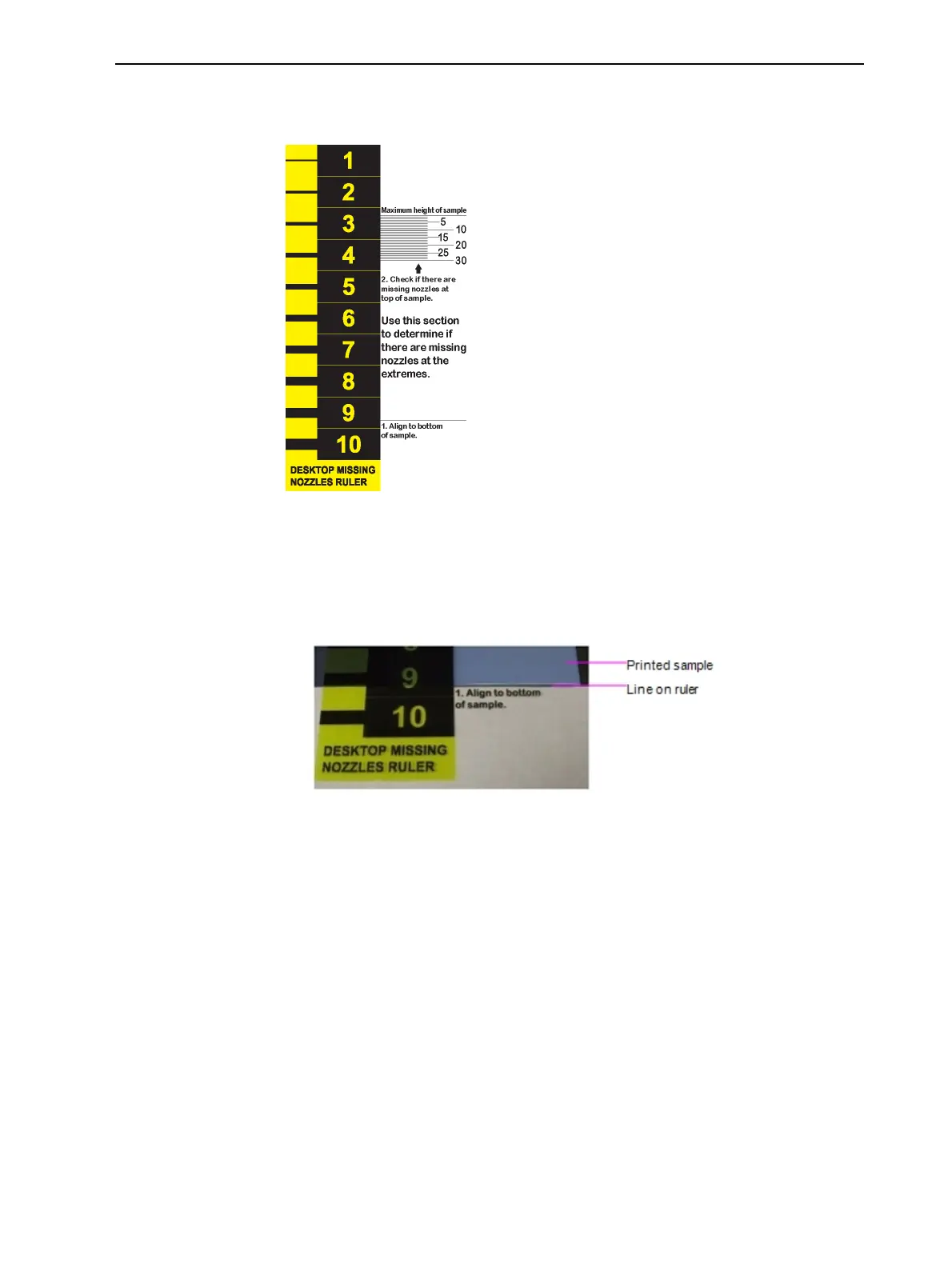

Figure 6-75 Missing Nozzles ruler
Clogged nozzles are seen in Weight Test samples as missing rows of
printed material.
a. Place the alignment line on the right side of the ruler next to the bottom
of the sample, as shown.
Figure 6-76 Aligning the ruler to the bottom of the sample
