Objet30 User Guide 6 Operating and Maintaining the Printer
DOC-34025 Rev. I 6-86
10. Extend the materials drawer to the end of its track, as follows:
a. Push the drawer slightly inward.
b. Lift the extension latch and pull out the drawer, all the way.

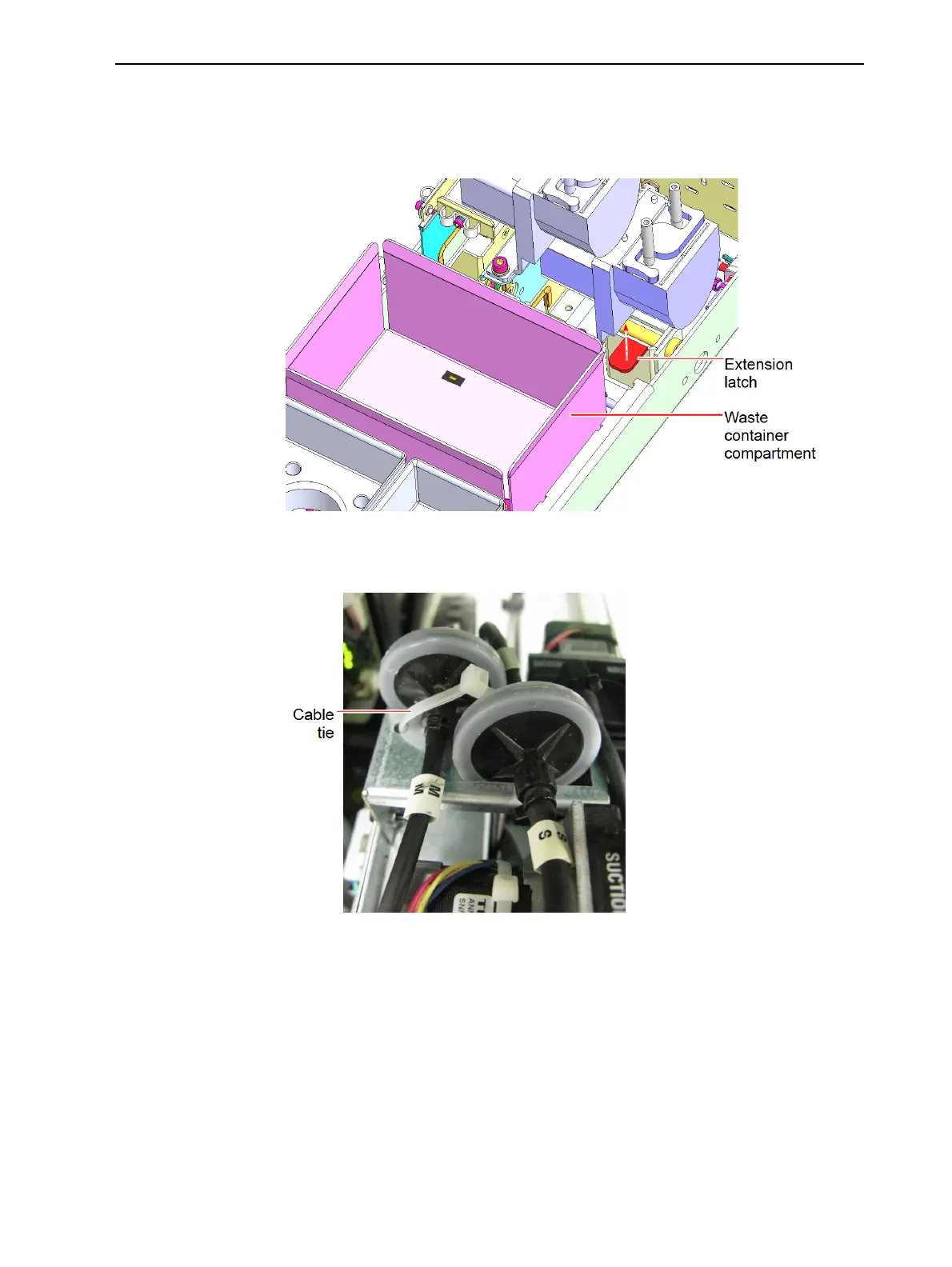

Figure 6-118 Materials drawer extension latch
11. Remove the cable tie securing the Model and Support filters to the printer.
Figure 6-119 Material filters secured to the printer
