Objet30 User Guide 6 Operating and Maintaining the Printer
DOC-34025 Rev. I 6-96
4. Disconnect the tubes with their fittings from the ends of the tube extending
from the pump.
If you experience difficulty disconnecting the tube fittings from tubes in the
pump, make a small slit in the tube, as shown.

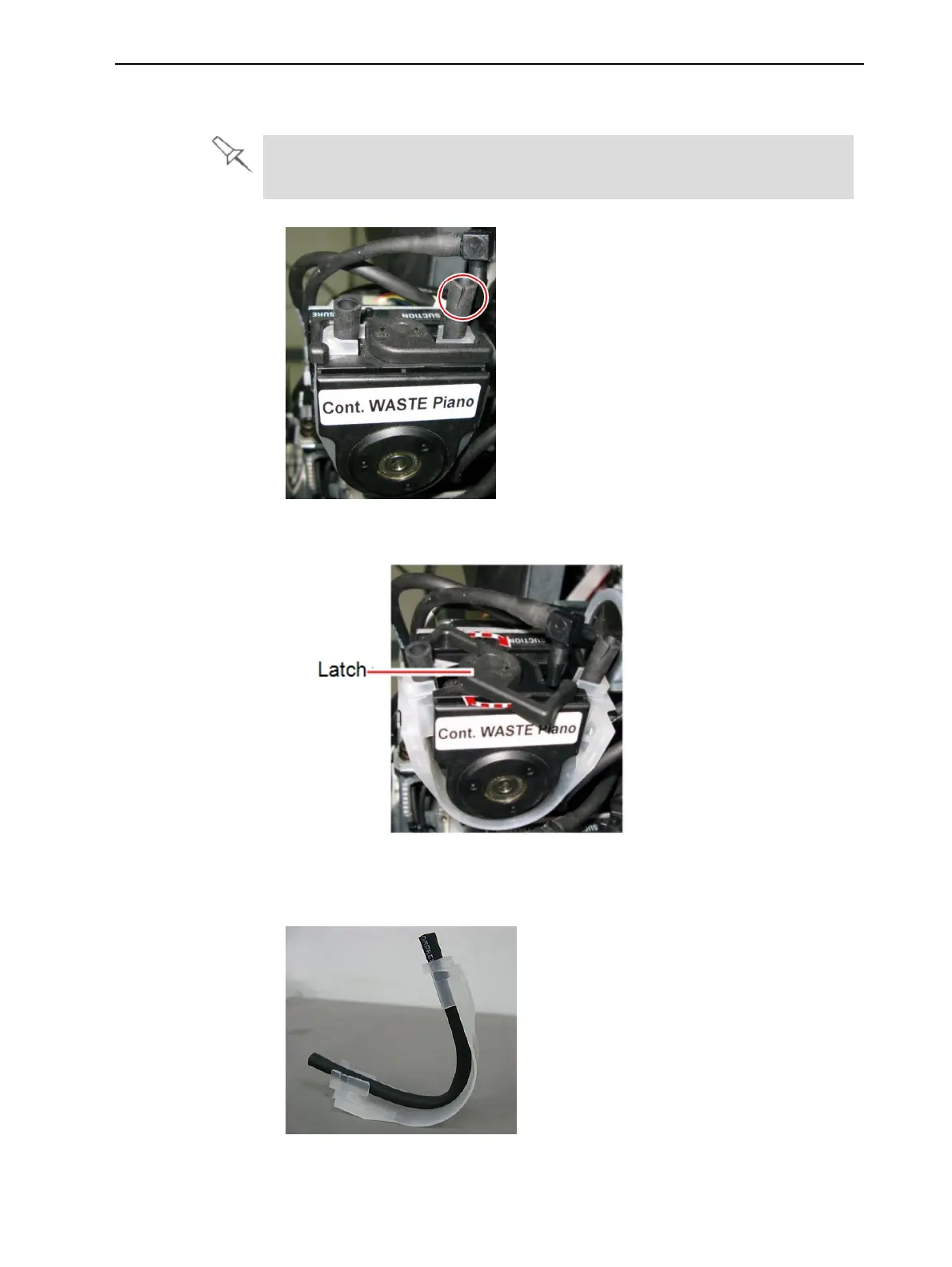

Figure 6-136 Tubes disconnected from the waste pump
5. Release the tube latch, as shown.
Figure 6-137 Releasing the tube latch
6. Remove the pump tube with its holder from the pump assembly.
Figure 6-138 Removed tube and tube holder
