097-55501-01 Revision M – January 2009 TimeHub 5500 Users Guide 159
Chapter 4 Testing and Configuring the TimeHub
Provisioning Master Shelf Parameters
Using TimeScan THC
1. Select Comm, Change TimeHub Target ID. The Set TimeHub System ID
window appears, as shown in Figure 4-10.

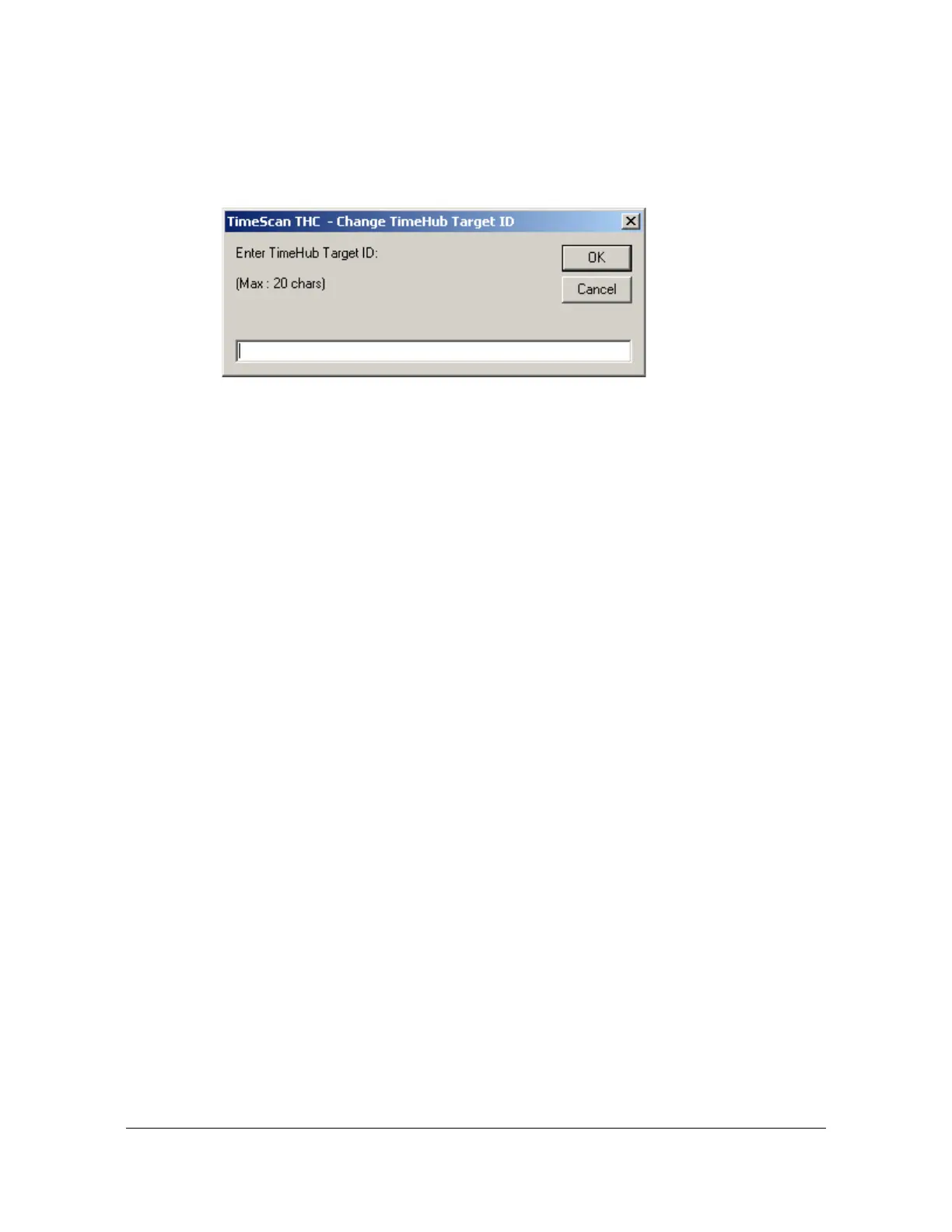

Figure 4-11. Set TimeHub Target ID Window
2. Type a name for the unit, using up to 20 characters, then click OK. The system
responds with the COMPLD message.
Using TL1 Commands
You enter the <tid> in the command line as you type the command. The syntax for
each command, shown in the TL1 Reference Guide, illustrates the location of the
<tid> in the command.
Verifying the Hardware Setup
After you install all the cards, verify that the shelf is configured as expected.
Using TimeScan THC
1. Select Mode, Command Response from the main menu to open the Command
Response window.
2. Select TL1Commands, RTRV-NETYPE-ALL, or press F2 to send the
RTRV-NETYPE-ALL query. A typical response is as follows:
SYMMBITS 04-10-19 11:14:33
M SV36 RTRV
"TSG:Symmetricom,5500,TSG"
"S0-IMC:,090-55542-01-A,,R4209C,J86746,D0TPN0NAAA,106063"
"S0-CLK1:,090-55514-02-A,,R4142B,J63939,D0TPKRJAAA,297083"
"S0-CLK2:,090-55512-02-A,,R4312A,K60716,D0TPVRKAAA,299460"
"S0-OUT1A:,090-55581-01-A,,R4236A,00M15316,D0TPJNMAAA,105045,CC,"
"S0-OUT2A:,090-55581-01-A,,R4236A,00M15320,D0TPJNMAAA,105045,CC,"
"S0-OUT3B:,090-55581-01-A,,R4236A,00M15317,D0TPJNMAAA,105045,CC,"
"S0-OUT4B:,090-55581-01-A,,R4236A,00M15360,D0TPJNMAAA,105045,CC,"
"S0-OUT5C:,090-55581-01-A,,R4236A,00M15358,D0TPJNMAAA,105045,CC,"
>
SYMMBITS 04-10-19 11:14:33
M SV36 COMPLD
thub0063
