66 TimeHub 5500 Users Guide 097-55501-01 Revision M – January 2009
Chapter 2 Engineering Ordering Information
Card Overview

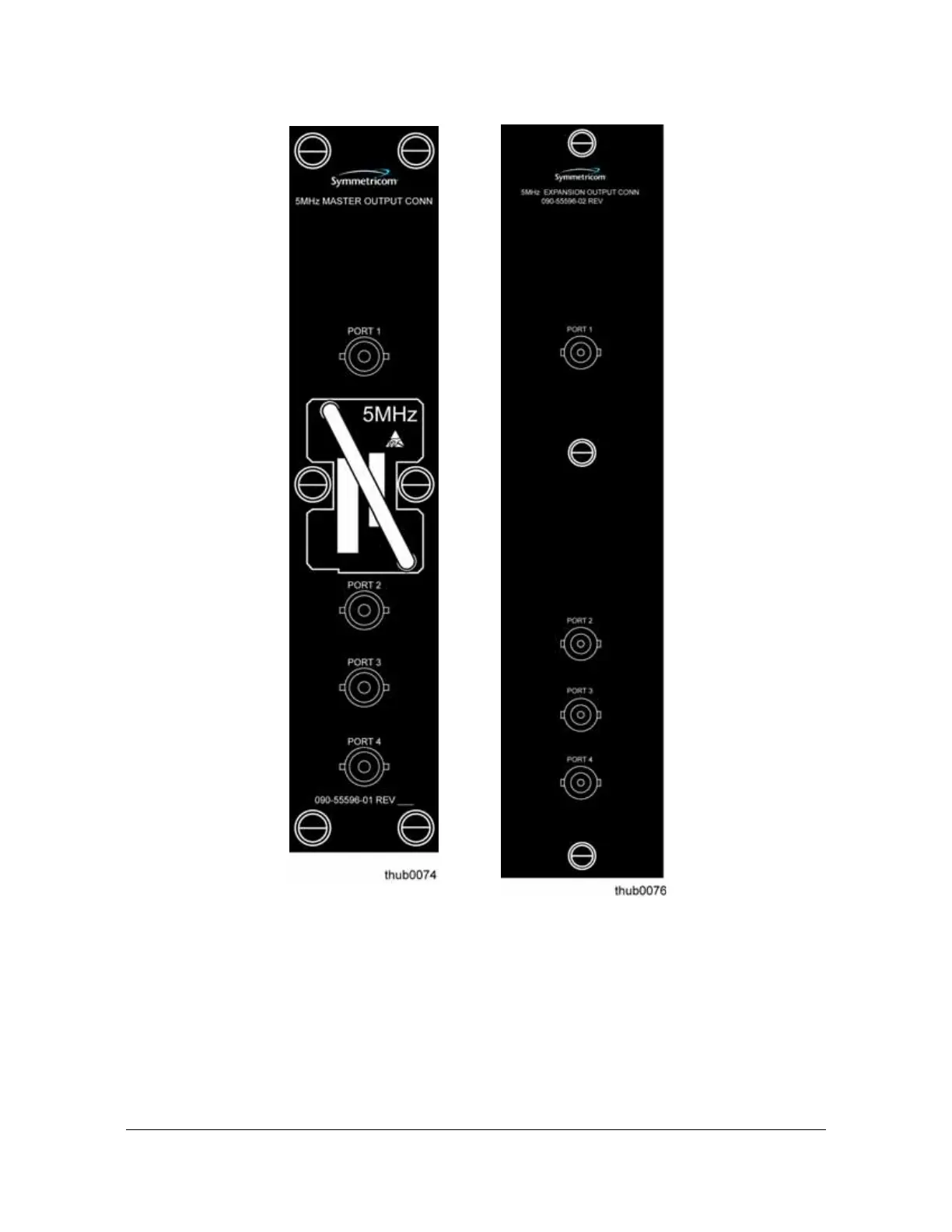

Figure 2-10. TimeHub 5 MHz Connector Modules
Connectors
Port 1 – 4 – These BNC connectors allow you to connect a 5 MHz output signal
to other Network Elements. A right-angle BNC adapter is installed on each
output.
