212 TimeHub 5500 User’s Guide 097-55501-01 Revision M – January 2009
Chapter 5 Maintaining the TimeHub 5500
Troubleshooting the TimeHub 5500
Troubleshooting the Clock Card
The front panel of the Clock card is shown in Figure 5-4. Use the LEDs on the front
panel and the actions in Table 5-1 to diagnose and resolve problems with the Clock
card.

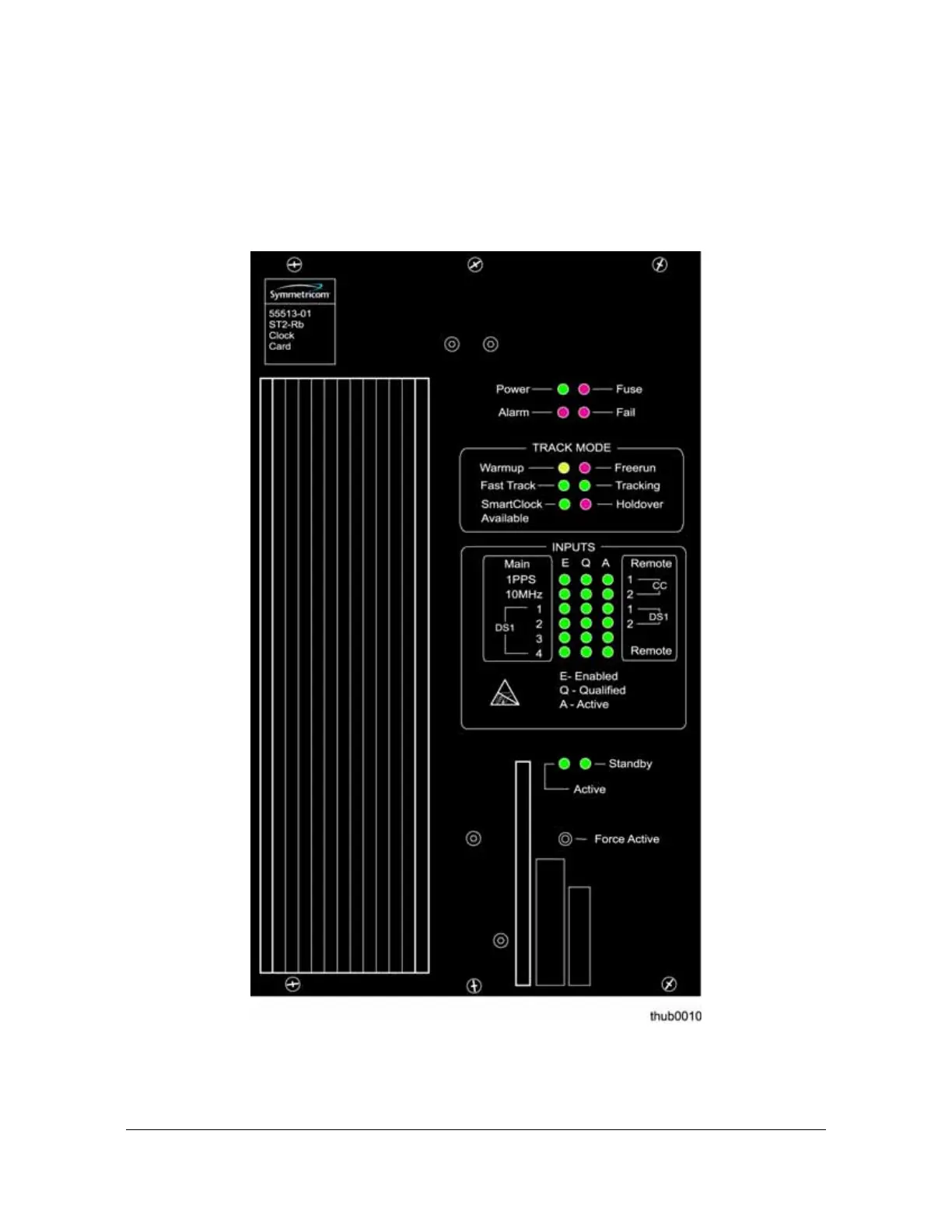

Figure 5-4. Front Panel of the Clock Card
