097-55501-01 Revision M – January 2009 TimeHub 5500 User’s Guide 253
Chapter 5 Maintaining the TimeHub 5500
Upgrading the Software
3. Type cd upgradepackage\ftp (or other appropriate path name) and press
Enter to set the command window to the FTP directory containing the files that
you want to download to the TimeHub.
Connecting to the TimeHub
4. Type
ftp <ip address> and press Enter to connect to the TimeHub, where <ip
address> is the address of the TimeHub. In the example shown in Figure 5-17,
the address is 192.168.5.172. The TimeHub requests a user name.

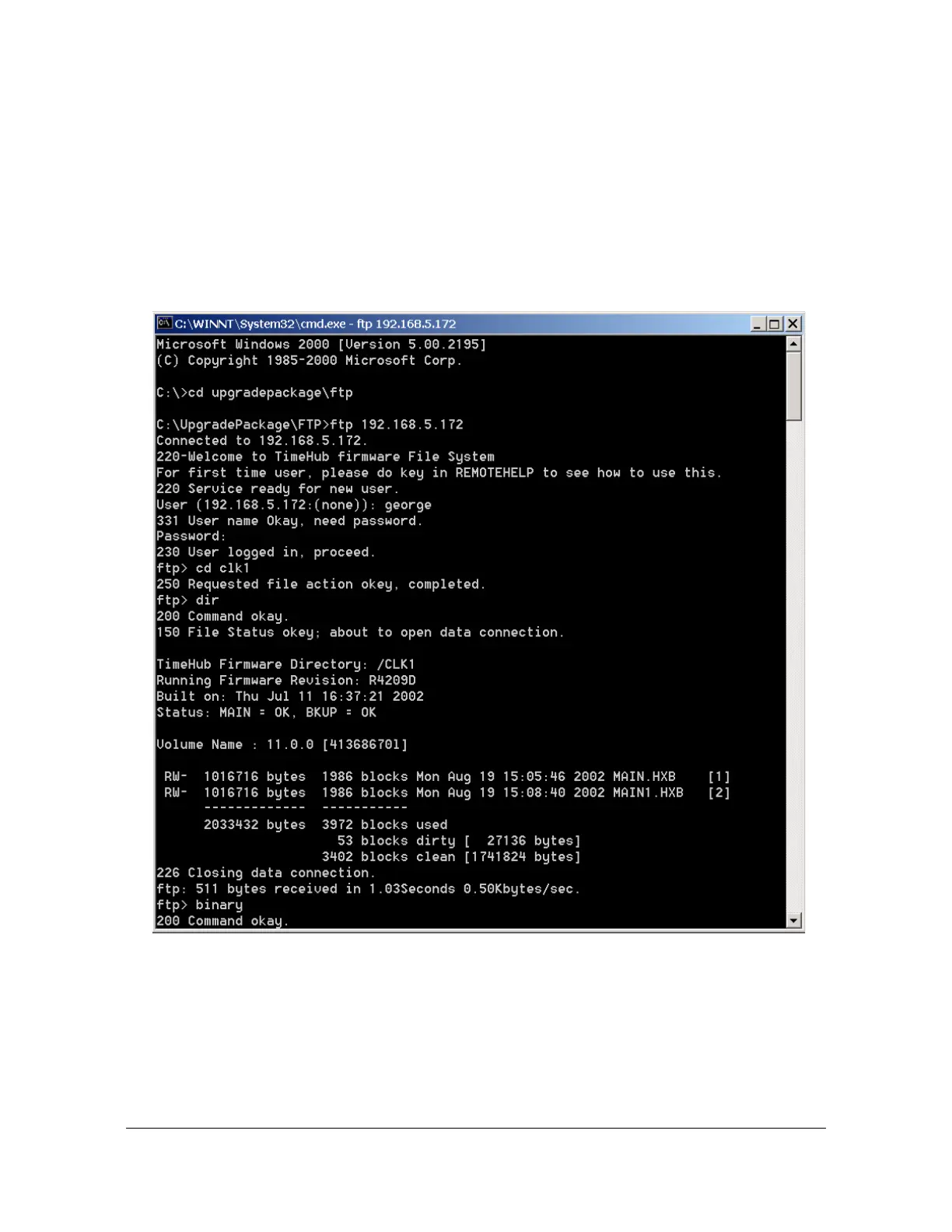

Figure 5-17. Example FTP Download Process, Part 1
5. .Type a valid Security-level user name and press Enter. The TimeHub requests a
password.
6. Type the password for the user and press Enter. The TimeHub responds with
230 User logged in, proceed. If you do not succeed in logging in, check that
you correctly entered the user name and password, and ensure that the user
To Next Page
