Symmetricom TimeHub 5500 User Manual

097-55501-01 Revision M – January 2009 TimeHub 5500 User’s Guide 233
Chapter 5 Maintaining the TimeHub 5500
Troubleshooting the TimeHub 5500
Troubleshooting the 5 MHz Output Driver Card
The front panel of the 5 MHz Output Driver card is shown in Figure 5-9. Use the
LEDs on the front panel and the actions in to diagnose and resolve problems with
the 5 MHz Output Driver card.

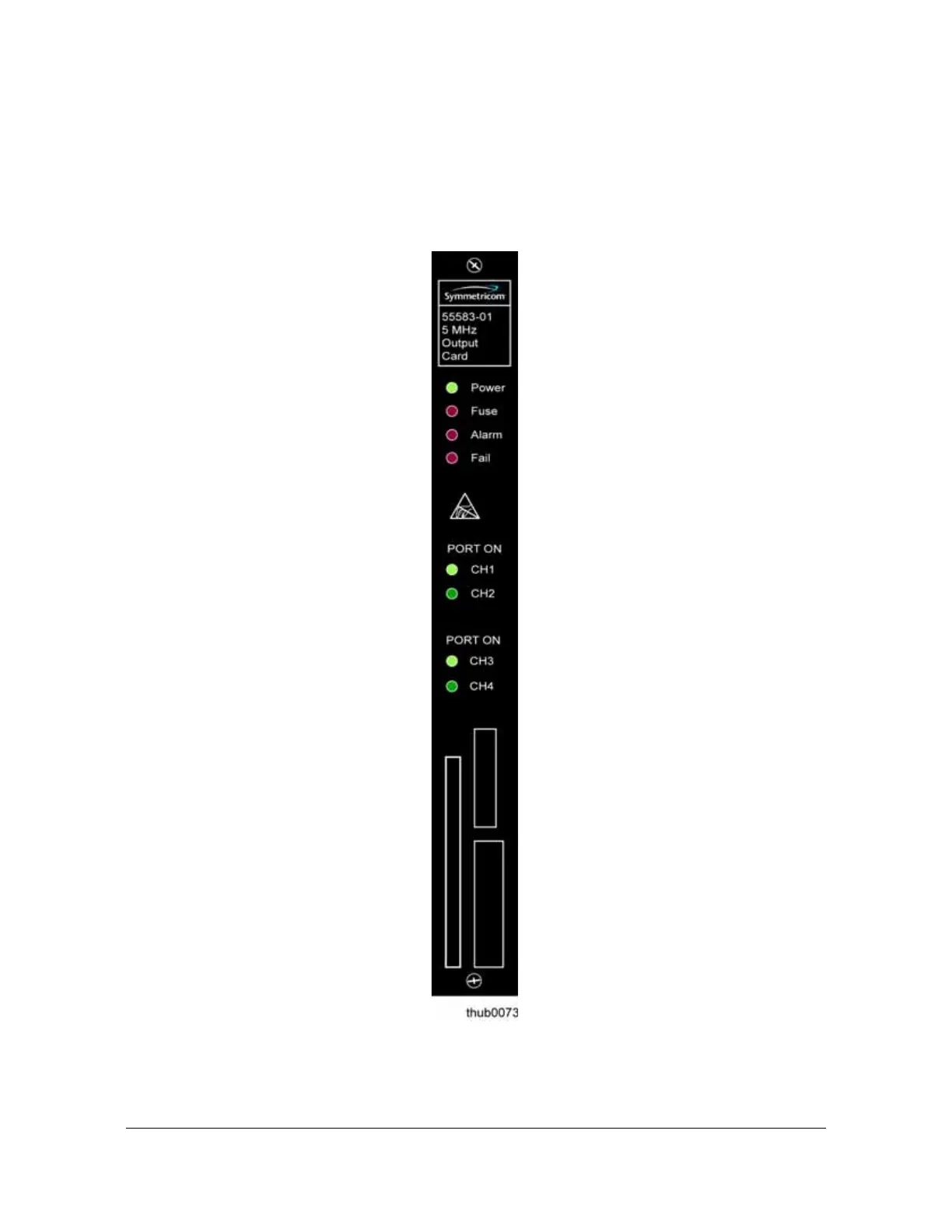

Figure 5-9. Front Panel of the 5 MHz Output Driver Card
