Symmetricom TimeHub 5500 User Manual

097-55501-01 Revision M – January 2009 TimeHub 5500 User’s Guide 65
Chapter 2 Engineering Ordering Information
Card Overview

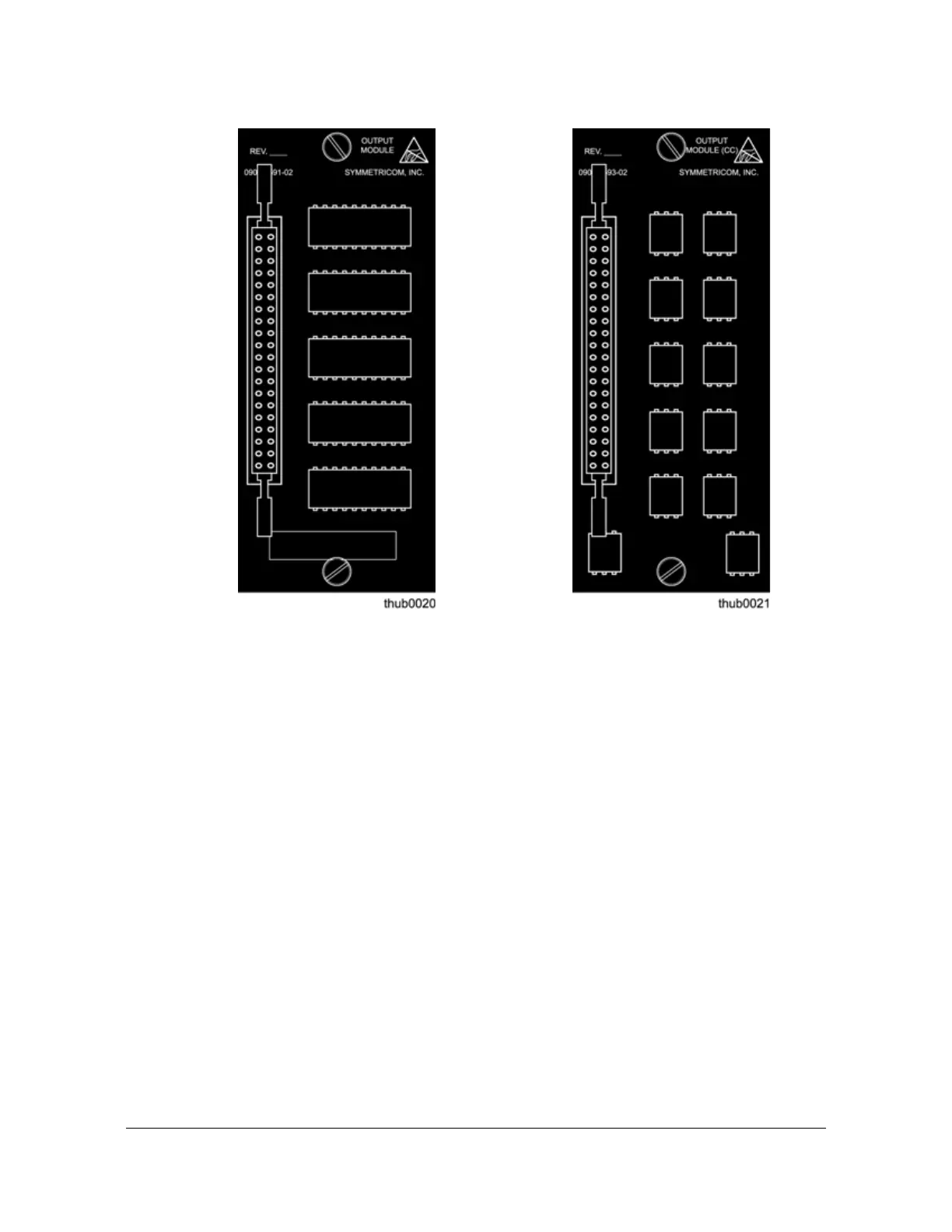

Figure 2-9. Output Connector Modules for the Expansion Shelf: DS1 (left) and CC (right)
You can install up to seven Output Connector modules on a Master/Remote shelf,
and up to 16 Output Connector modules on an Expansion shelf. See Installing Rear
Panel Modules, on page 109, for instructions on installing Output Connector
modules; Making Signal Connections, on page 114, provides instructions on
connecting the Output Connector modules to the Output panels.
5 MHz Output Connector Modules
The 5 MHz Output Connector module provides an interface for all external signal
connections necessary for 5 MHz operations (Figure 2-10). Two 5 MHz Output
Connector modules are available: one for the Master shelf and one for use in an
Expansion shelf.
