097-55501-01 Revision M – January 2009 TimeHub 5500 User’s Guide 129
Chapter 3 Installing the TimeHub 5500
Installing Expansion Shelves
Making Expansion Shelf Connections
Two cables provide timing and data to the Expansion shelf from either the Master
shelf or to an upstream Expansion shelf. Two additional cables provide timing and
data to a downstream Expansion shelf. This section describes the procedures to
connect a single Expansion shelf and multiple Expansion shelves.
Connecting a Single Expansion Shelf
You make the connections on the rear panel of the Master and Expansion shelves,
as shown in Figure 3-23. You need two cables (060-55505-01), one gender changer
(128-55505-01), and two Termination Connectors (090-55505-01), which are
included with the Expansion shelf kit.

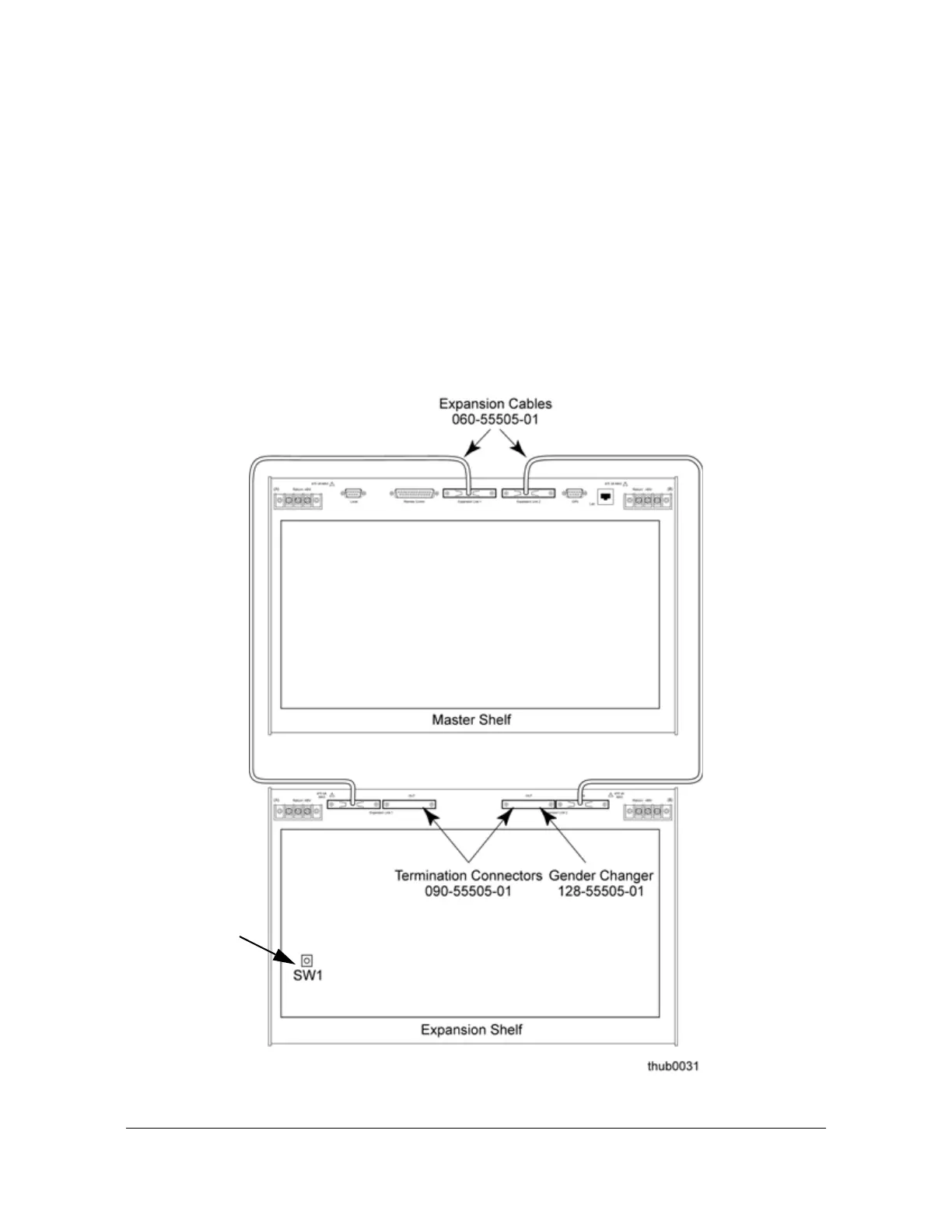

Figure 3-23. Connecting a Single Expansion Shelf
Address
Switch SW1
set to “1”
To Next Page
