SteeringControlValve(Formachinesserialnumberabove
403450001)
g301554

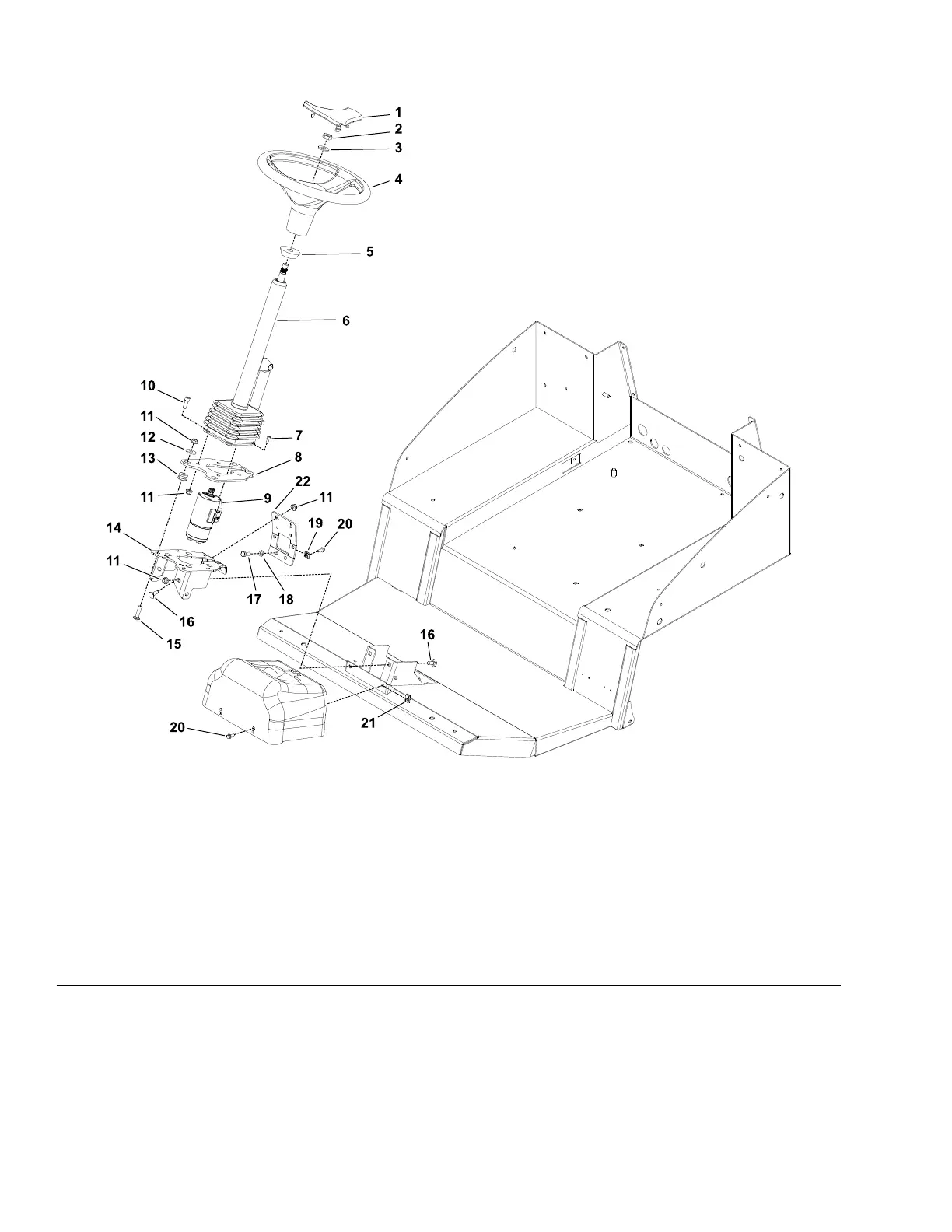

Figure118
1.Steeringwheelcover9.Steeringcontrolvalve17.Bolt(2each)
2.Hexnut
10.Bolt(4each)18.Lockwasher(2each)
3.Flatwasher
11.Nut(14each)19.Speednut(2each)
4.Steeringwheel12.Washer(4each)20.Bolt(4each)
5.Foamcollar
13.Mount(4each)21.Clip(2each)
6.Steeringshaft
14.Mountassembly
22.Columnsupport
7.Bolt(4each)15.Carriagebolt(4each)
8.Steeringmountplate16.Carriagebolt(6each)
Removal(Figure118)
1.Parkthemachineonthelevelsurface,lowerthecuttingdecks,stopthe
engine,applyparkingbrakeandremovethekeyfromthekeyswitch.
2.Removethesteeringcovertoallowaccesstothesteeringcontrolvalve.
3.Supportthesteeringtowertopreventitfromfalling.
HydraulicSystem:ServiceandRepairs
Page5–134
Groundsmaster
®
5900&5910
16227SLRevB
