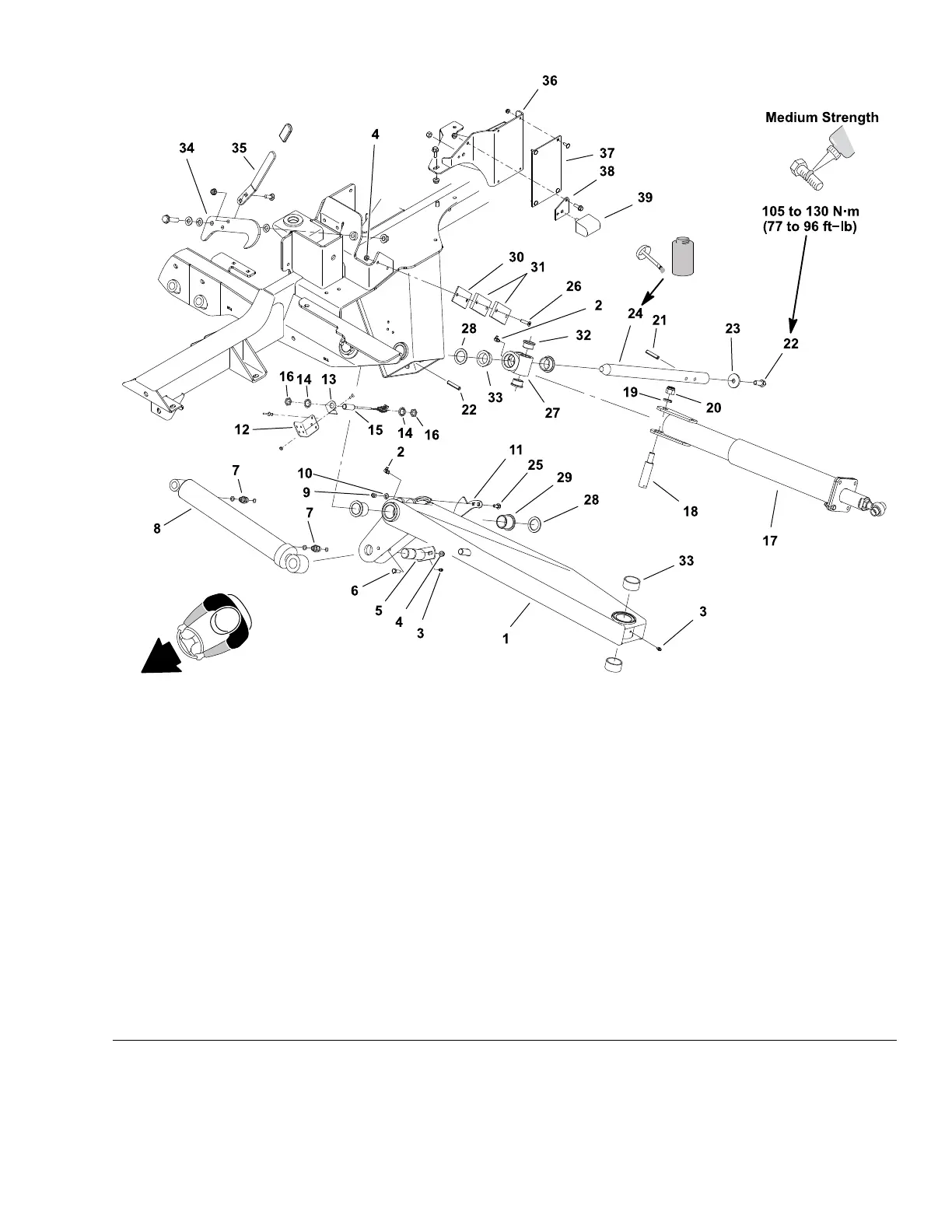

WingDeckLiftArms
g298890
Figure302
1.Liftarm(LHshown)14.Lockwasher(2)
27.Pivothubassembly
2.Greasetting15.Wingdeckpositionswitch(machine
serialnumbersabove316000200
shown)
28.Thrustwasher(2)
3.Greasetting16.Locknut(2)29.Flangebushing(2)
4.Flangenut17.Impactarmassembly
30.Shim
5.Cylinderpin
18.Pivotshaft31.Bumperpad(2)
6.Capscrew
19.Lockwasher
32.Bushing(2)
7.Hydraulictting
20.Locknut
33.Flangebushing(2)
8.Liftcylinder21.Rollpin(2)
34.Latch
9.Locknut(2perplate)22.Capscrew
35.Latchhandle
10.Flatwasher(2perplate)
23.Thrustwasher36.Transportpad
11.Sensingplate24.Liftarmpivotshaft
37.Rollerpad
12.Bracket
25.Carriagescrew(2perplate)38.Shim
13.Sensormount26.Screw(2)
39.Bumper
Note:Forwingdeckliftcylinderremovalandinstallationinformation,seeWing
CuttingDeckLiftCylinders(page5–148).
Groundsmaster
®
5900&5910
Page7–21
Chassis:ServiceandRepairs
16227SLRevB
