SteeringColumn(Formachinesserialnumberabove403450001)
g301554

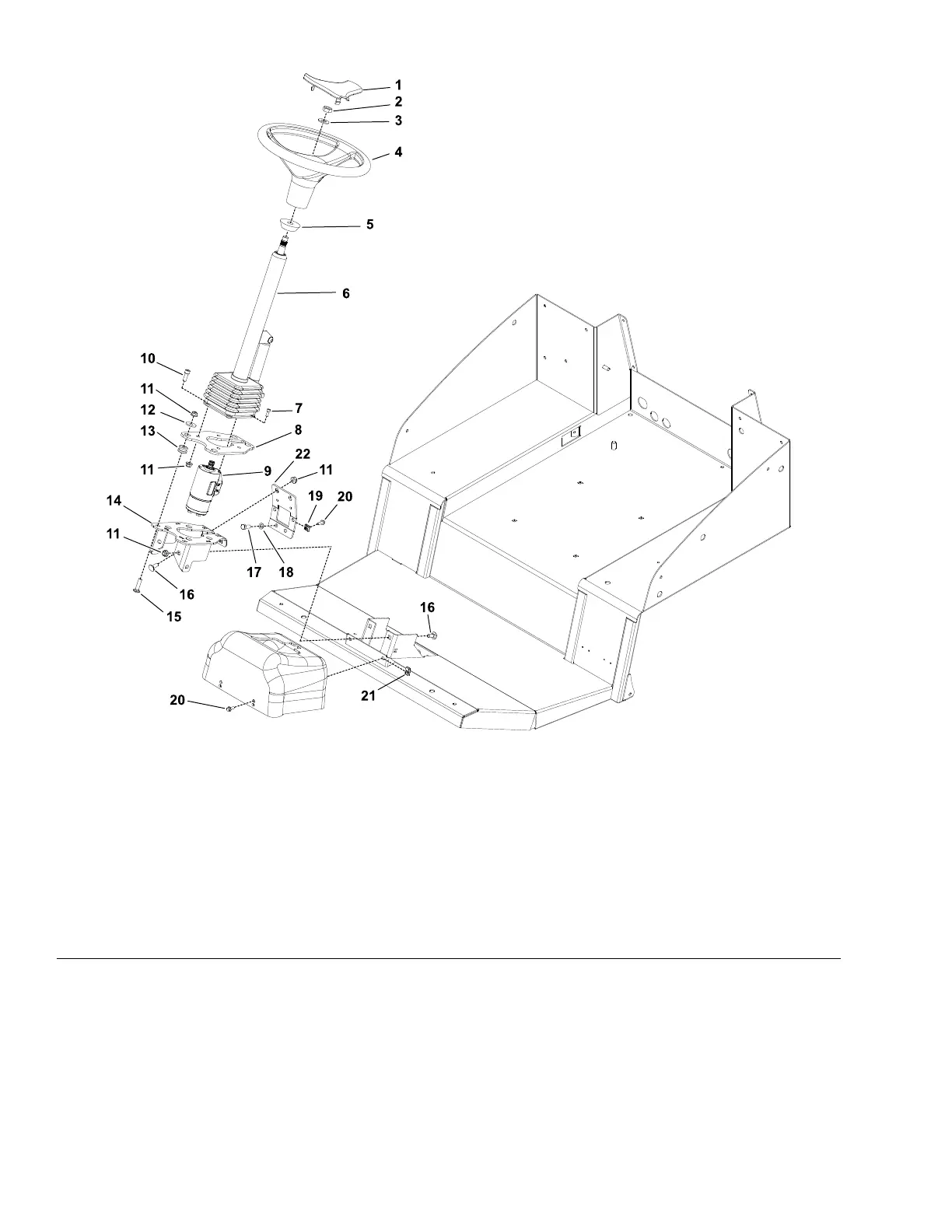

Figure292
1.Steeringwheelcover9.Steeringcontrolvalve17.Bolt(2each)
2.Hexnut
10.Bolt(4each)18.Lockwasher(2each)
3.Flatwasher
11.Nut(14each)19.Speednut(2each)
4.Steeringwheel12.Washer(4each)20.Bolt(4each)
5.Foamcollar
13.Mount(4each)21.Clip(2each)
6.Steeringshaft
14.Mountassembly
22.Columnsupport
7.Bolt(4each)15.Carriagebolt(4each)
8.Steeringmountplate16.Carriagebolt(6each)
Removal(Figure292)
1.Parkthemachineonthelevelsurface,settheparkingbrake,lowerthe
cuttingunits,shutofftheengine,andremovethekeyfromthekeyswitch.
2.Removethesteeringcovertoaccessthesteeringtowercomponents.
3.Removethelocknutandatwasherthatsecuresthesteeringwheeltothe
steeringtower.
Chassis:ServiceandRepairs
Page7–8
Groundsmaster
®
5900&5910
16227SLRevB
