Toro Groundsmaster 5910 Series User Manual

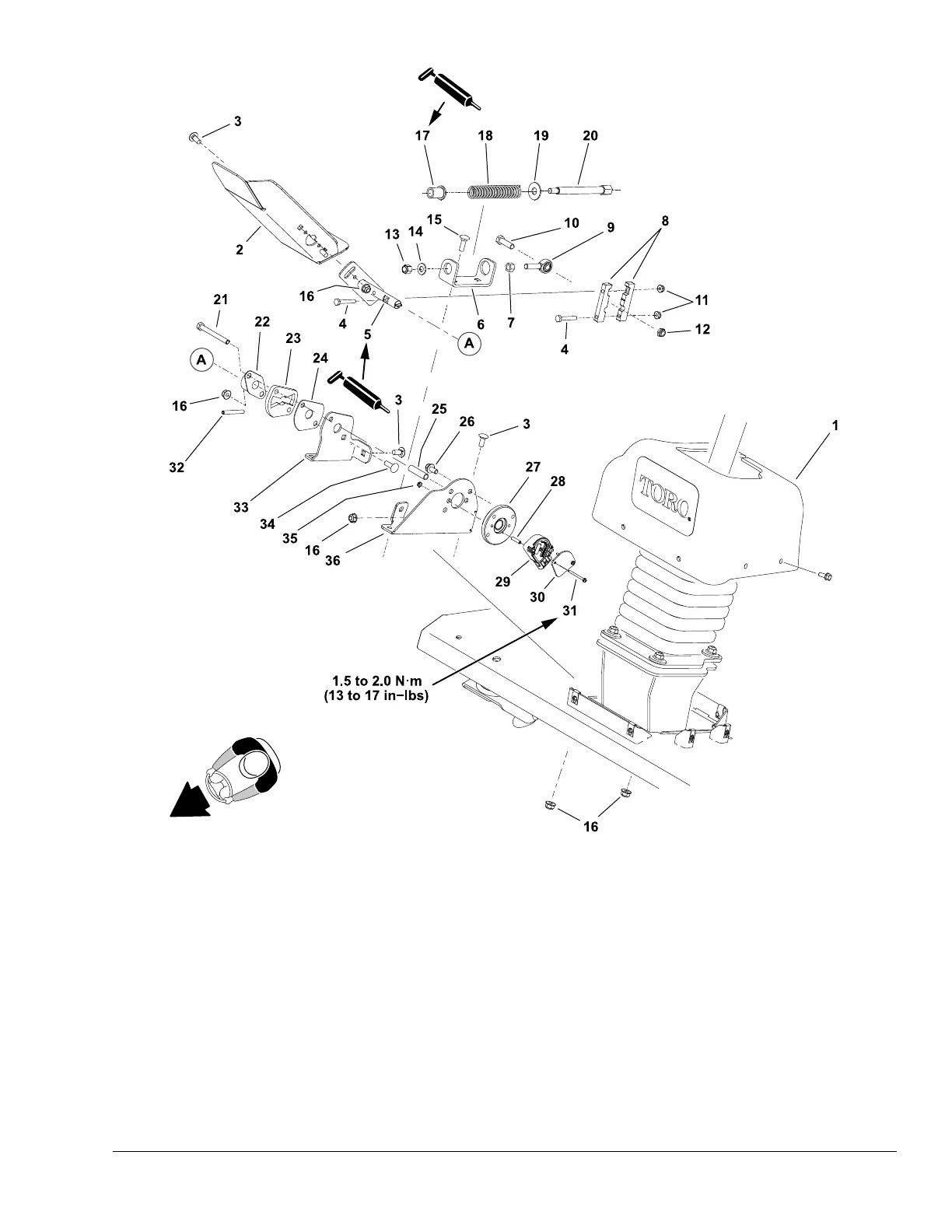

TractionPedal
g299131
Figure314
1.Steeringcover
13.Locknut
25.Spacer
2.Tractionpedal14.Flatwasher
26.Flangeheadscrew(2)
3.Carriagescrew(6)15.Carriagescrew(2)
27.Hubandbushingassembly
4.Capscrew(2)16.Flangenut(7)28.Standoff(2)
5.Pedalshaft
17.Flangebushing29.Positionsensor
6.Springbracket18.Spring30.Coverplate
7.Hexnut19.Flatwasher
31.Socketheadscrew(2)
8.Clampblock(2)20.Springshaft
32.Rollpin
9.Rodend
21.Capscrew33.Butterybracket
10.Capscrew
22.Bearing
34.Carriagescrew
11.Flangenut(2)23.Butteryplate35.Locknut(2)
12.Locknut
24.Coverplate36.Sensorbracket
Groundsmaster
®
5900&5910
Page7–37
Chassis:ServiceandRepairs
16227SLRevB
