Toro Groundsmaster 5910 Series User Manual

AirConditioningCompressor
g299743

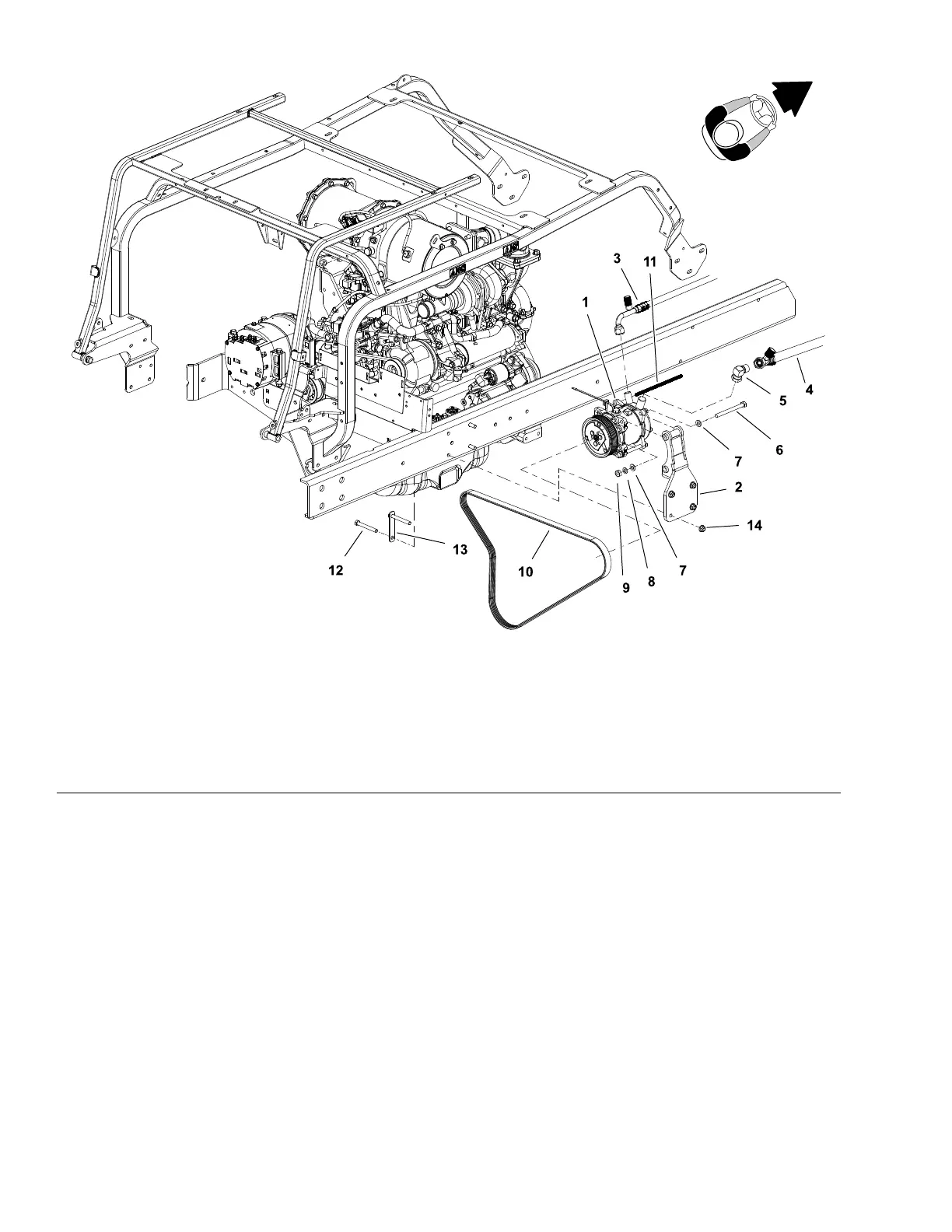

Figure341
1.Airconditioningcompressor
6.Capscrew(2)
11.Tubing
2.Compressormount7.Flatwasher(4)12.Capscrew(4)
3.AChose8.Lockwasher(2)13.Mountstrap(2)
4.AChose9.Hexnut(2)14.Flangenut(4)
5.Elbowtting
10.Drivebelt
Removal(Figure341)
1.Parkmachineonalevelsurface,lowercuttingdecksandstopengine.
Removekeyfromthekeyswitch.
2.Raisehoodtoallowaccesstoengineandairconditioningcompressor.
3.RemovedrivebeltfromA/Ccompressorpulley(see24VoltAlternator/Air
ConditioningCompressorDriveBelt(page6–147)).
4.Disconnectcompressorelectricalconnectorfrommachinewireharness.
5.ReadtheGeneralPrecautionsforRemovingandInstallingAirConditioning
SystemComponents(page9–4).
OperatorCab:ServiceandRepairs
Page9–6
Groundsmaster
®
5900&5910
16227SLRevB
