FrontDeckLiftArms
g298853

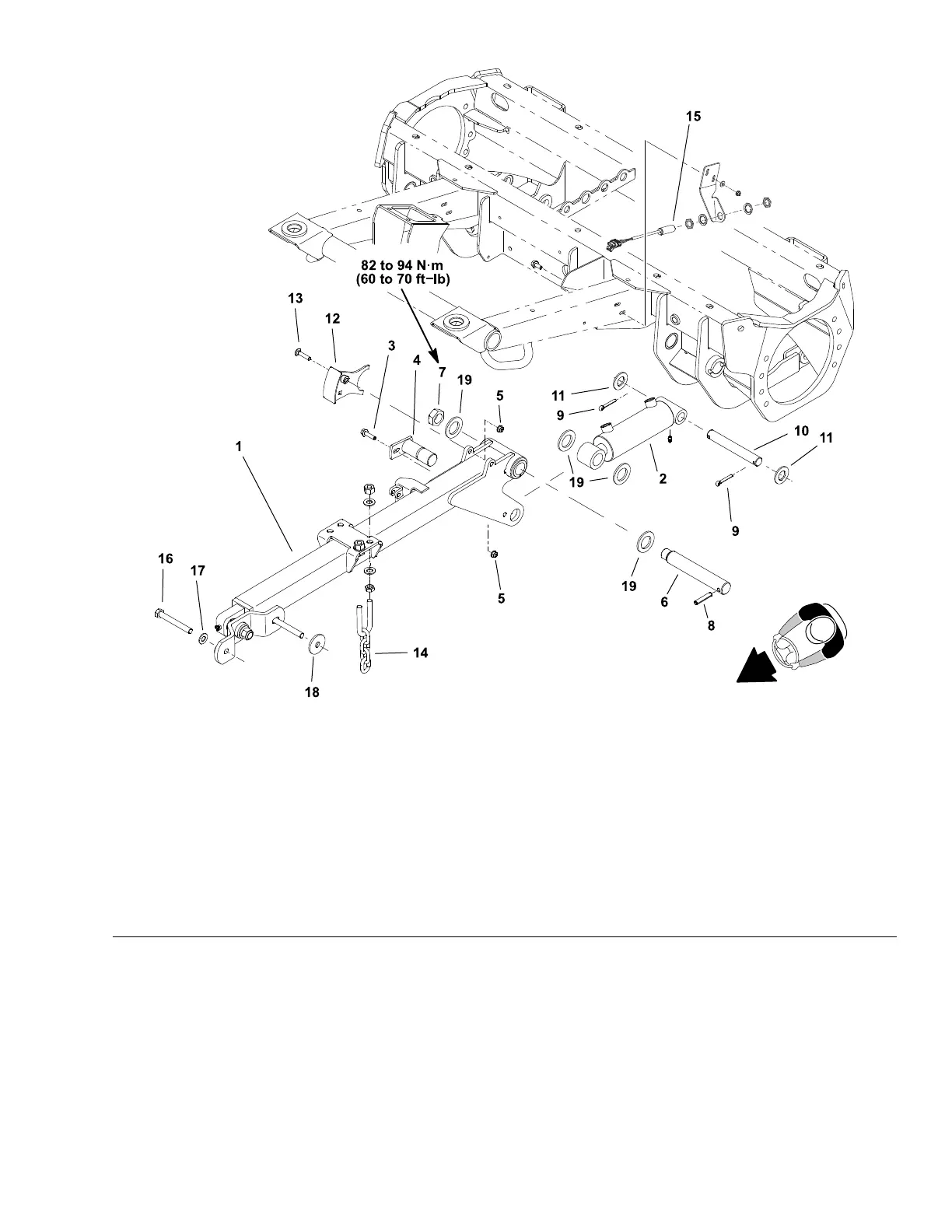

Figure299
1.Liftarm(leftshown)
8.Rollpin
15.Frontdeckpositionswitch(machine
serialnumbersabove316000200
shown)
2.Liftcylinder9.Cotterpin16.Switchbracket
3.Flangeheadscrew
10.Cylinderpin17.Capscrew
4.Pivotpin
11.Flatwasher(2percylinder)
18.Flatwasher
5.Flangenut
12.Sensingplate
19.Thrustwasher
6.Liftarmpin13.Carriagebolt(2)20.Washer(4percylinder)
7.Locknut
14.HOCChain
Note:SeeFrontCuttingDeckLiftCylinders(page5–143).
FrontDeckLiftArmRemoval(Figure299)
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengineand
removekeyfromthekeyswitch.
2.Removefrontcuttingdeck(seeFrontCuttingDeck(page8–3)).
Groundsmaster
®
5900&5910
Page7–17
Chassis:ServiceandRepairs
16227SLRevB
