MAINMENU

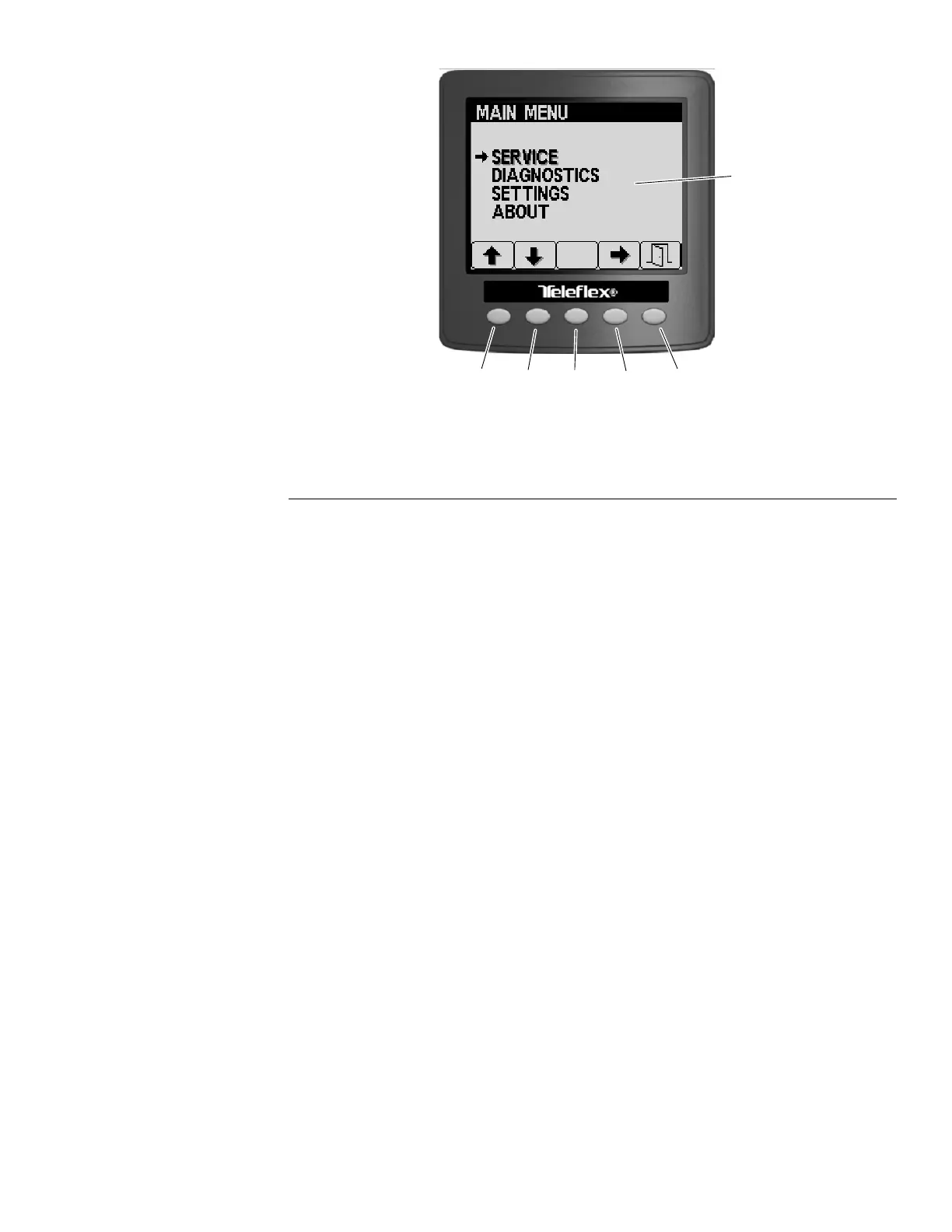

g288306

Figure142

1.Button14.Button4

2.Button25.Button5

3.Button36.MainMenuscreen

Themainmenu(Figure142)providesaccesstothefollowingscreens:

•Service

•Diagnostics

•Settings

•About

Themainmenuscreenisaccessedbypressinganholdingbutton5onthe

displayforapproximately4seconds.

Note:AccesstothemainmenuscreensmayrequireenteringaPersonal

IdenticationNumber(PIN).ThedefaultPINiseither1234or5900.Seethe

machineOperator’sManualforadditionalPINinformation.

Returntothepreviousscreenbypressingbutton5.

Groundsmaster

5900&5910

Page6–13

ElectricalSystem:InfoCenterDisplay

16227SLRevB
