Toro Groundsmaster 5910 Series - Electrical Schematic (Machine Serial Numbers 316000201 to 399999999)

To Next Page

To Previous Page

PageA–6

16227SLRevB

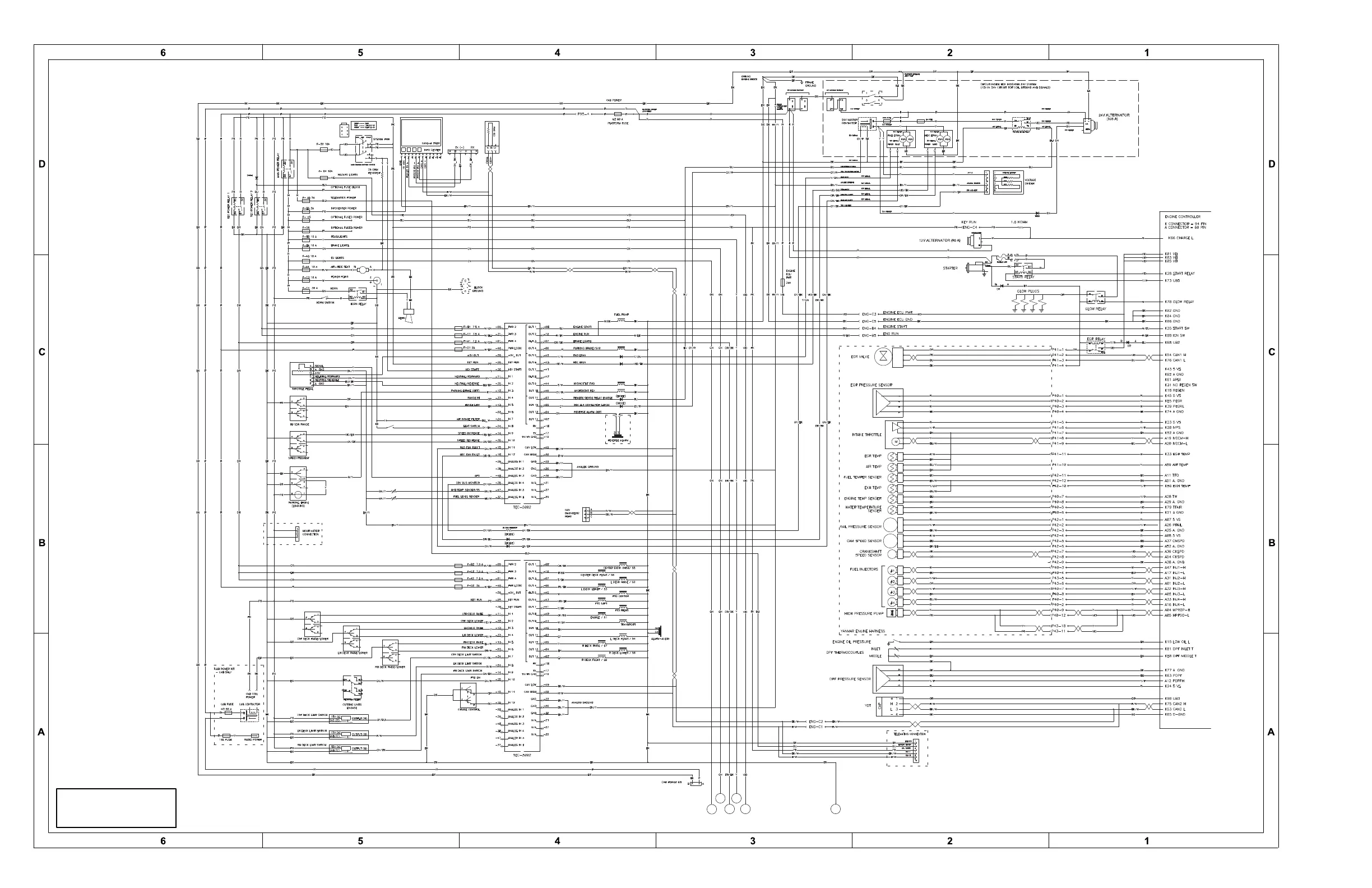

Groundsmaster5900/5910,Drawing122-0805RevA,Sheet1of2

ElectricalSchematic(machineserialnumbers316000201to399999999)

All relays and solenoids

are shown as de−energized.

All ground wires are black.

SHEET 2

g299966
