24VoltAlternator

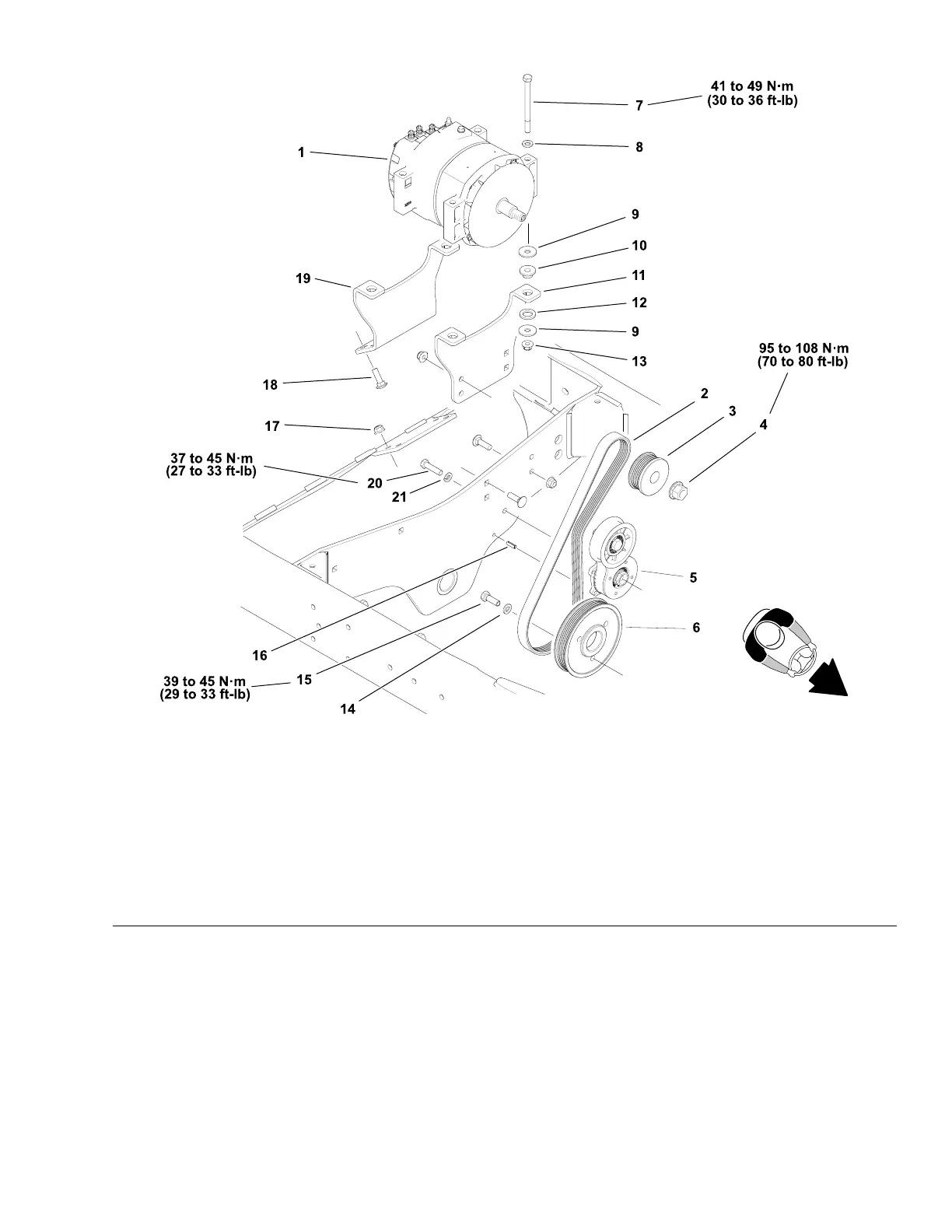

g298625
Figure286
1.24Voltalternator
8.Hardenedwasher(4)15.Capscrew(3)
2.Alternatordrivebelt
9.Hardenedwasher(8)
16.Rollpin
3.Alternatorpulley
10.Plasticisolator(4)17.Flangenut(8)
4.Flangenut11.Frontmountingbracket
18.Carriagebolt(8)
5.T ensionerassembly
12.Plasticwasher(4)
19.Rearmountingbracket
6.Enginepulley
13.Flangenut(4)20.Capscrew
7.Capscrew(4)14.Lockwasher(3)
21.Lockwasher
Removal
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengineand
removekeyfromthekeyswitch.
2.Turnbattery−disconnectswitchtotheOFFposition.
3.Removetheleftsidelowershroud.
Groundsmaster
®
5900&5910
Page6–149
ElectricalSystem:ServiceandRepairs
16227SLRevB
