Toro Groundsmaster 5910 Series User Manual

DriveBeltIdlerAssemblies
g299397

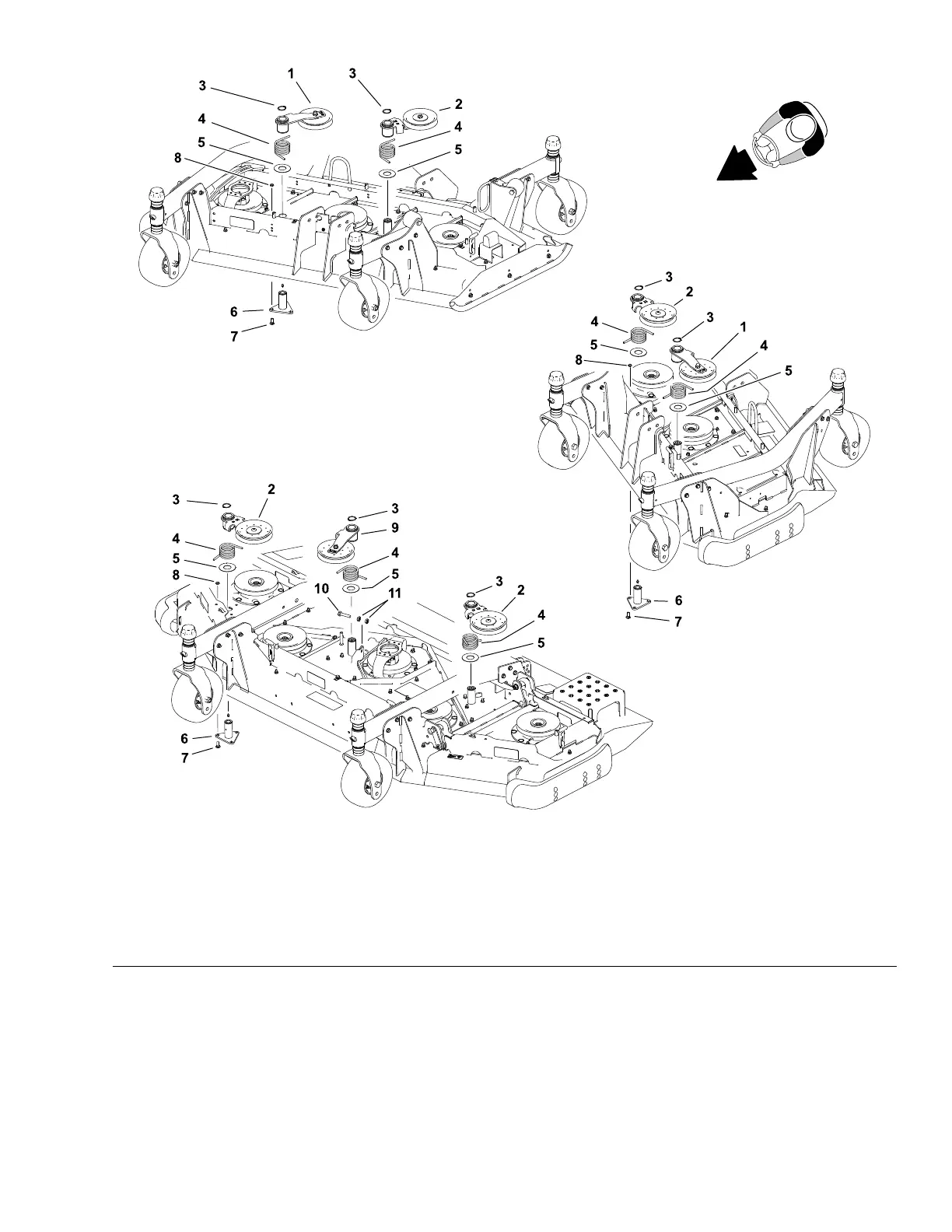

Figure328
1.LowerbeltIdlerassy−wingdeck
(2)
5.Washer(1peridler)9.LowbeltIdlerassy−frontdeck
2.Upperbeltidlerassembly(4)6.Idlerpivot(1peridler)
10.Idlerstopbolt
3.Retainingring(1peridler)7.Carriagescrew(3perpivot)11.Jamnut(2)
4.T orsionspring(1peridler)8.Locknut(3perpivot)
DriveBeltIdlerAssemblyRemoval(Figure328)
1.Parkmachineonalevelsurfacewithcuttingdecklowered.Stopengine
andremovekeyfromthekeyswitch.
2.Removedeckcoversfromtopofcuttingdeck.
3.Ifremovinglowerbelt(center)idlerassemblyonfrontdeck,loosenjamnuts
thatsecureidlerstopbolt(item10)tocuttingdecktoincreaseclearance
betweentheidlerarmandthestopbolt.
Groundsmaster
®
5900&5910
Page8–11
CuttingDecks:ServiceandRepairs
16227SLRevB
