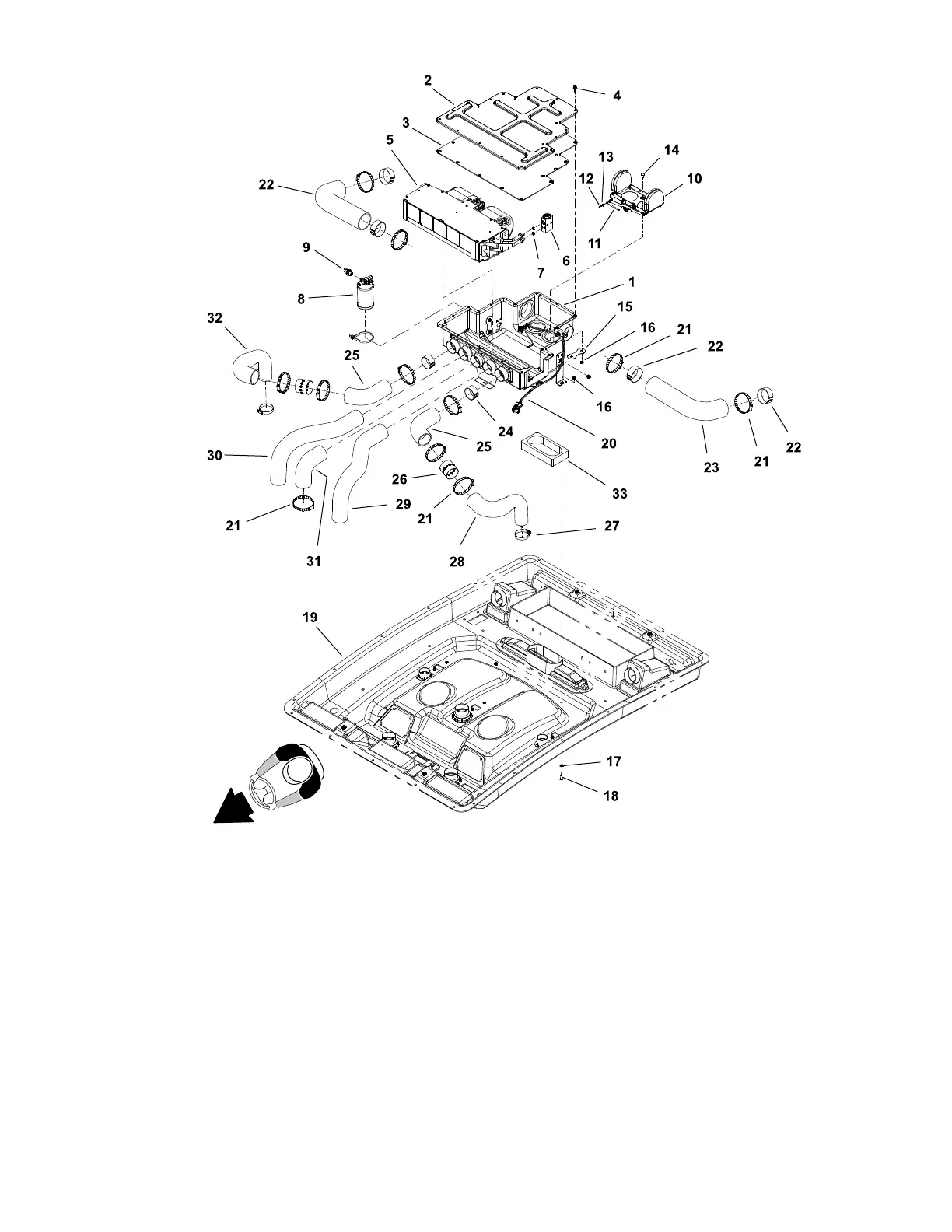

MixingBoxAssembly
g299905
Figure350
1.Mixingbox12.Hairpin
23.Venthose(2)
2.Mixingboxcover
13.Flatwasher
24.Tubesupport(2)
3.Coverinsulation14.Carriagescrew(2)25.Venthose(2)
4.Rivet(19)15.Supportplate26.Adapter(2)
5.HeatercoreA/Cevaporator/fan
assy
16.Flangenut(4)27.Hoseclamp(2)
6.Expansionvalve
17.Flatwasher(2)
28.Venthose
7.O−ring(2)18.Buttonheadscrew(2)
29.Venthose
8.A/Cdrier−receiver19.Cabheadliner
30.Venthose
9.Binaryswitch20.Mixingboxwireharness31.Venthose
10.Airdiverterassembly
21.Hoseclamp(11)
32.Venthose
11.Controlcable22.Tubesupport(4)33.Mixingboxinletfoam
Groundsmaster
®
5900&5910
Page9–19
OperatorCab:ServiceandRepairs
16227SLRevB
