SteeringControlValveService(Formachinesserialnumberabove
403450001)

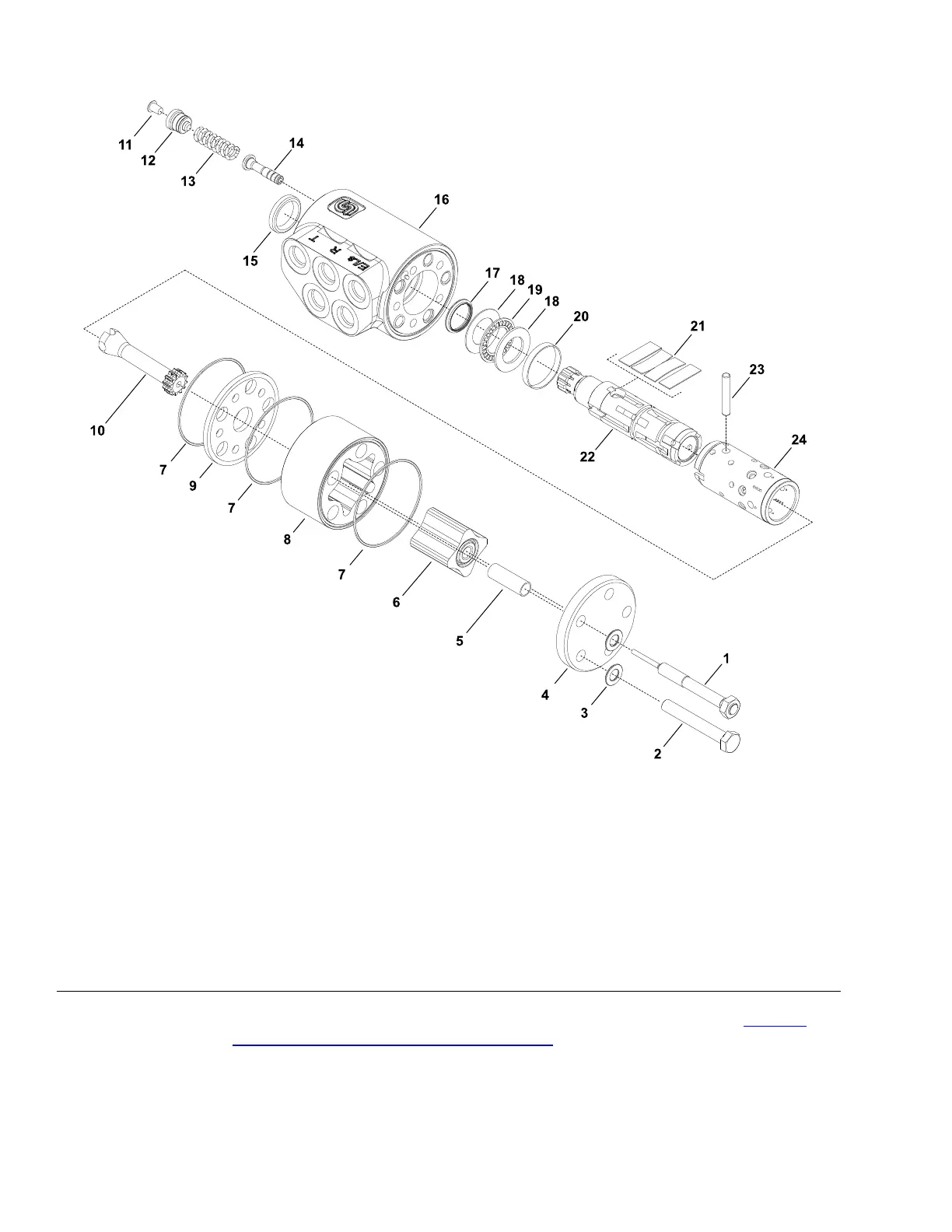

g278299
Figure122
1.Pinbolt9.Distributorplate
17.Shaftseal
2.Bolt(4each)10.Cardanshaft18.Thrustwasher(2each)
3.Washer(5each)
11.Plug19.Bearing
4.Endcover12.Plug20.Ring
5.Tube(2each)
13.spring
21.Springset
6.Innergearwheel
14.Reliefvalve22.Spool
7.O-ring(3each)
15.Dustsealingring
23.Crosspin
8.Outergearwheel
16.Housing
24.Sleeve
Note:Forthesteeringcontrolvalverepairprocedures,refertotheDanfoss
SteeringUnitTypeOSPMServiceManual.
HydraulicSystem:ServiceandRepairs
Page5–138
Groundsmaster
®
5900&5910
16227SLRevB
