DIAGNOSTICSSCREENS
1
2
3
4
5
6
g288373

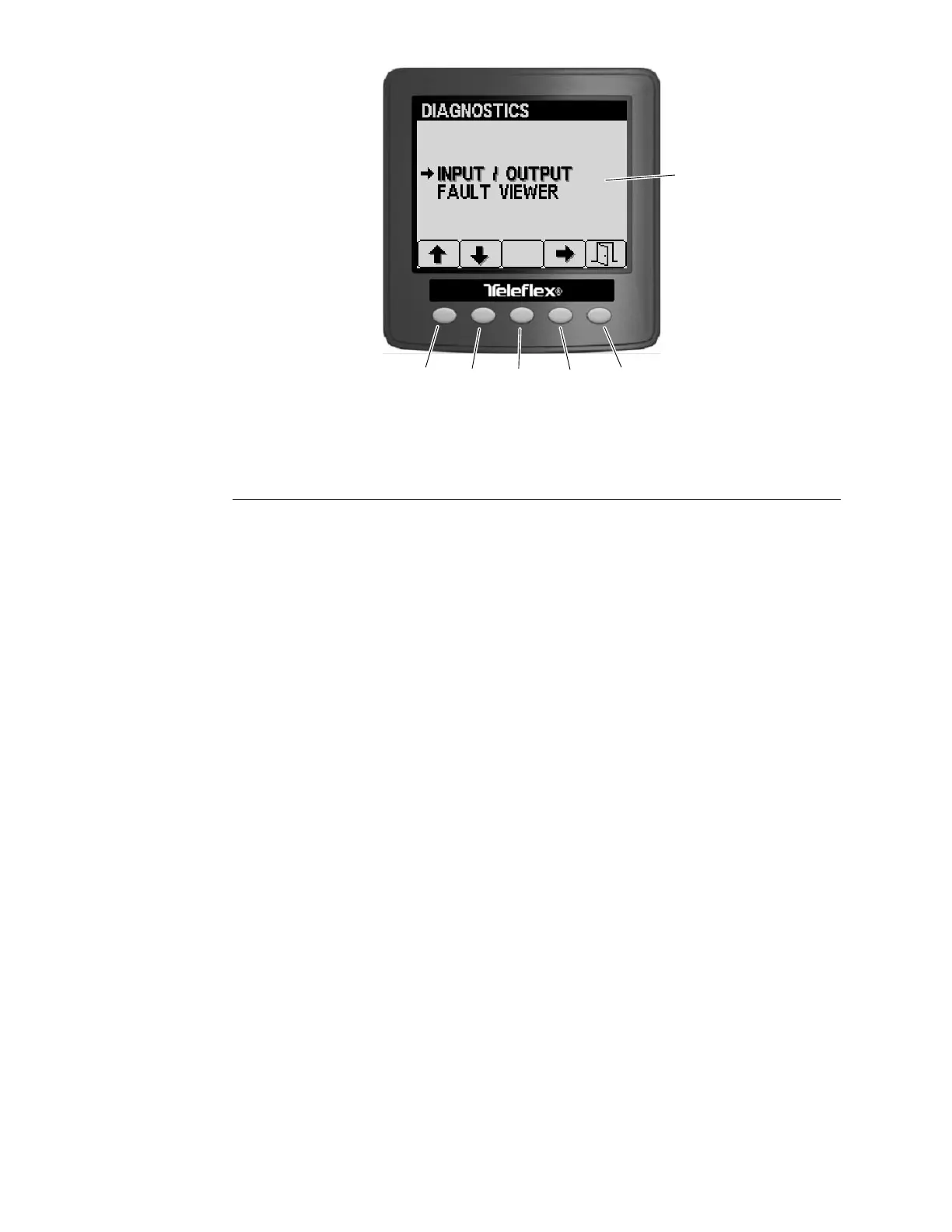

Figure151
1.Button14.Button4
2.Button25.Button5
3.Button36.Diagnosticsscreen
TheDiagnosticscreen(Figure151)isaccessedfromthemainmenuand
providesaccesstothefollowingscreens:
•Input/Output
•FaultViewer
Accessthediagnosticsscreensbypressingbuttons1or2tohighlightthe
desiredscreenandbutton4toselectthehighlightedscreen.
Returntothepreviousscreenbypressingbutton5.
INPUT/OUTPUT
Theinput/outputscreensdisplaythecurrentstateofthevariousT oroElectronic
Controller(TEC)inputs,qualiersandoutputsnecessarytoallowamachine
functionstooccur.Theinput/outputscreensshouldbeusedtotroubleshoot
machineoperationissues,andcheckthatnecessarycomponentsandcircuit
wiringarefunctioningcorrectly(seeTroubleshootingchapter).Scrollthrough
theinput/outputscreensbypressingbuttons1or2.
Eachofthefollowingmachinefunctionshasitsowninput/outputscreen:
•Leftcuttingdeckraiseandlower
•Centercuttingdeckraiseandlower
•Rightcuttingdeckraiseandlower
•Tractioncontrolforwardandreverse
•Tractioncontrolhigh/lowspeedrangeselection
•PTOengagement
•Cruisecontrol
•Enginestartingandrunning
•Airlterserviceindicator
ElectricalSystem:InfoCenterDisplay
Page6–22
Groundsmaster
®
5900&5910
16227SLRevB
