PageA–36

16227SLRevB

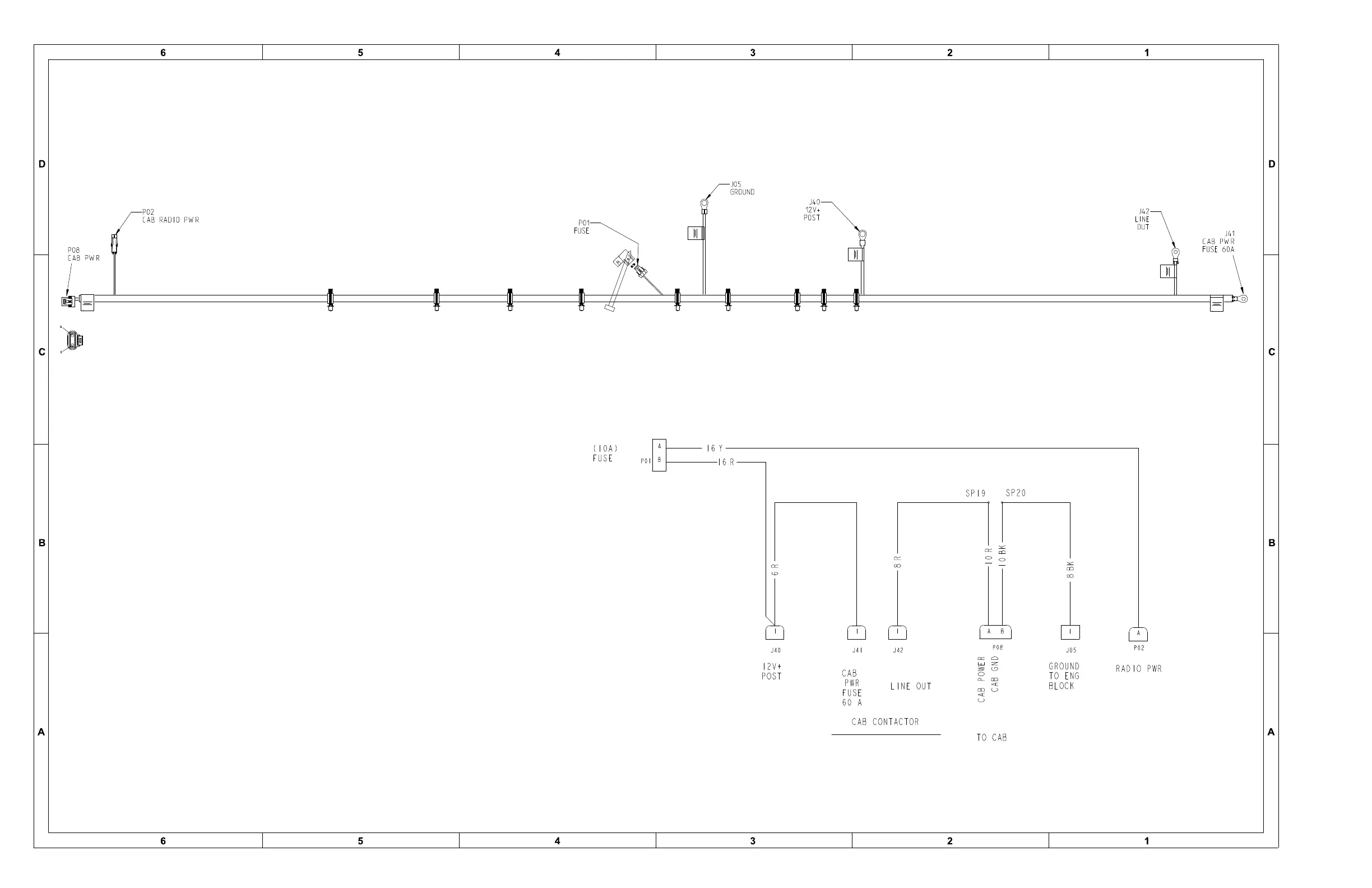

Groundsmaster5910,Drawing122-0640RevB,Sheet1of1

CabPowerSupplyWireHarness(Machineserialnumbersbelow316000200)

g299994
