Toro Groundsmaster 5910 Series User Manual

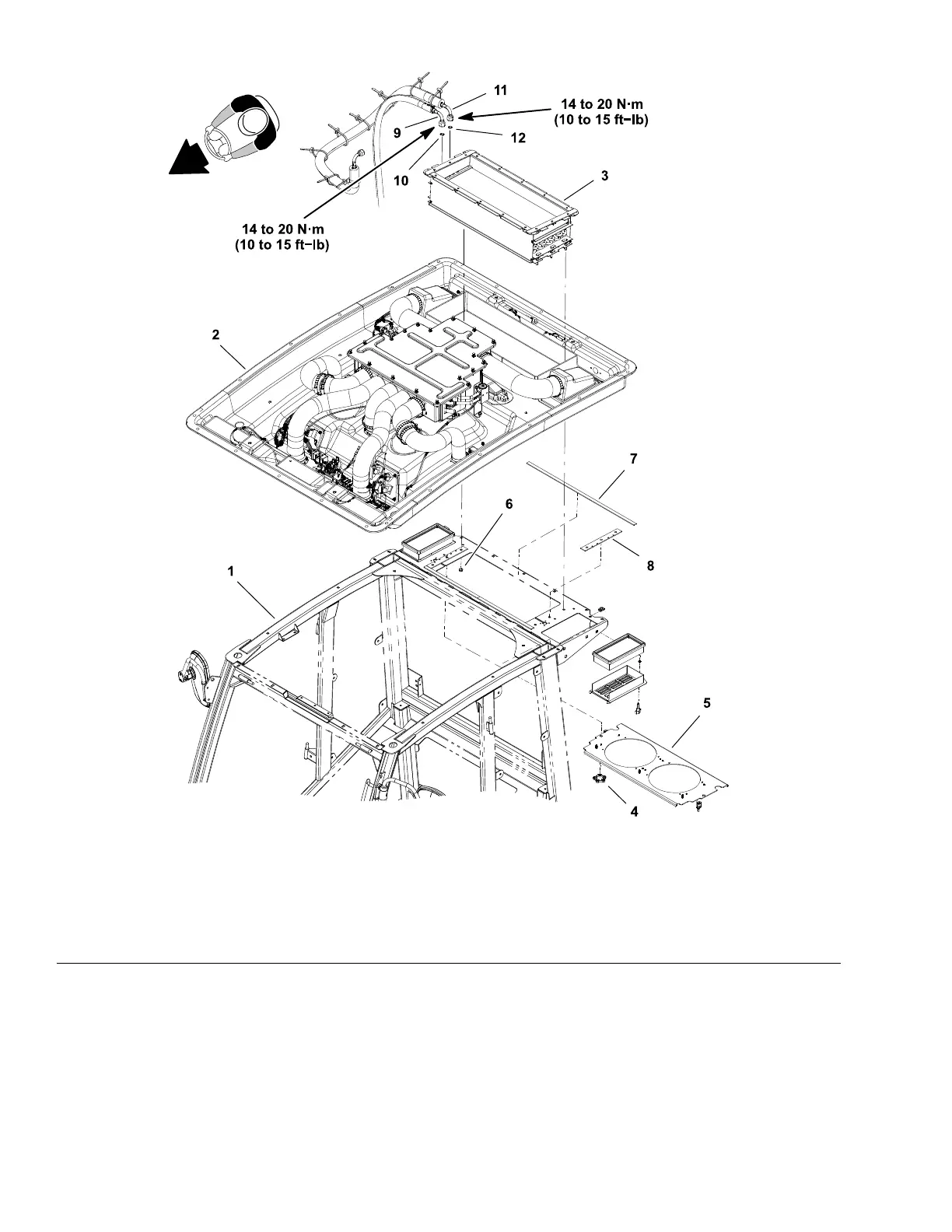

A/CCondenserAssembly
g299873
Figure348
1.Cabframe5.Condenserfanassembly9.AChose(fromcompressor)
2.Cabheadlinerassembly6.Flangenut(4)10.O−ring
3.A/Ccondenserassembly7.Stripseal(2)11.AChose(todrier−receiver)
4.Knob(2)8.Edgeseal(2)12.O−ring
Removal(Figure348)
1.Parkmachineonalevelsurface,lowercuttingdecksandstopengine.
Removekeyfromthekeyswitch.
2.ToaccessA/Ccondenserassembly,removeroofpanelfromtopofcab(see
RoofAssembly(page9–9)).
3.Removecondenserfanassemblyfrommachine(seeA/CCondenserFan
Assembly(page9–13)).
OperatorCab:ServiceandRepairs
Page9–16
Groundsmaster
®
5900&5910
16227SLRevB
