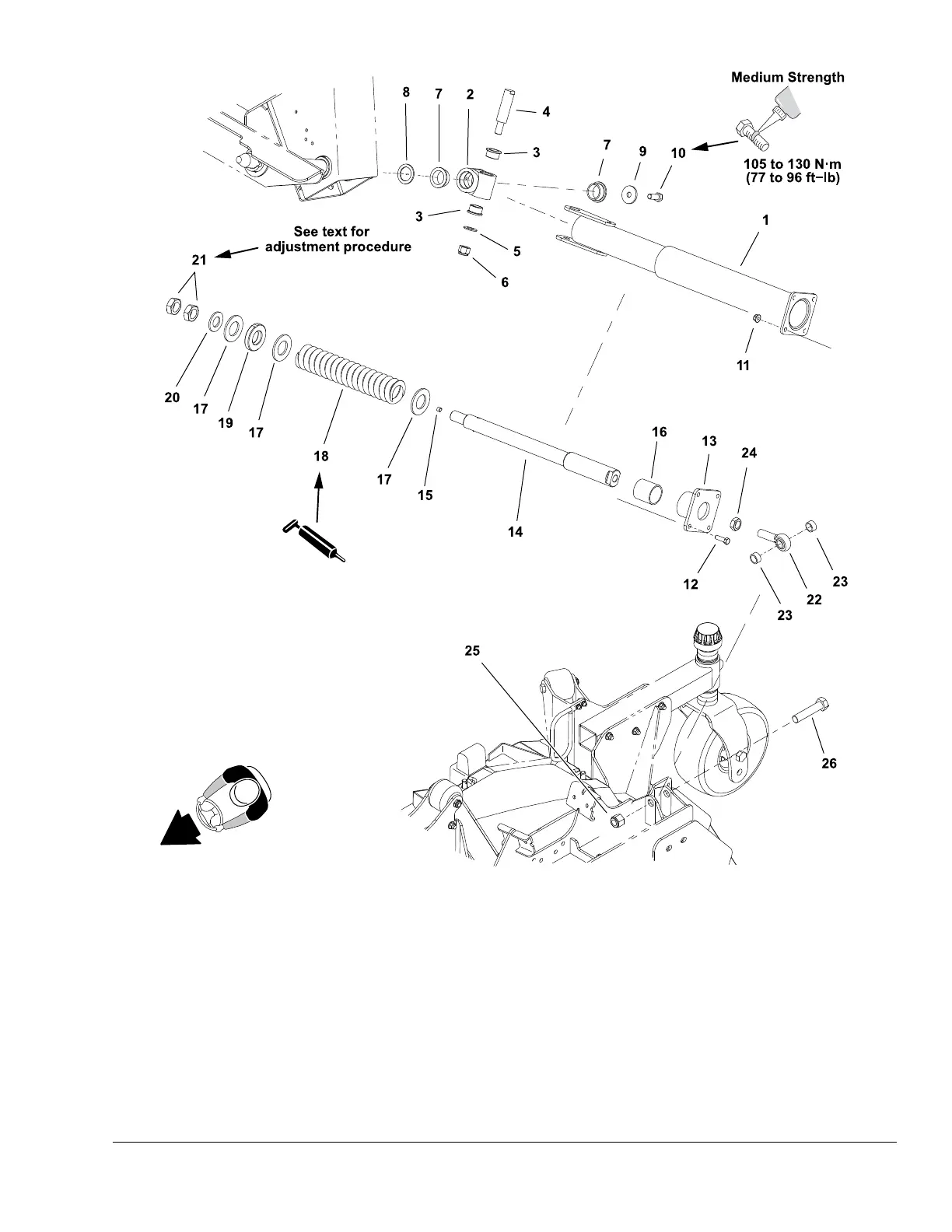

WingDeckImpactArmAssembly

g299090

Figure310

(Formachinesserialnumberbelow403450000)

1.Impactarmhousing

10.Capscrew

19.Plasticbearing

2.Pivothub

11.Flangenut(4)

20.Flatwasher

3.Flangebushing(2)12.Capscrew(4)21.Jamnut(2)

4.Pivotshaft

13.Housing22.Rodend

5.Flatwasher

14.Springshaft23.Spacer(2)

6.Locknut15.Pipeplug24.Jamnut

7.Flangebushing16.Bushing25.Locknut

8.Thrustwasher17.Washer

26.Capscrew

9.Thrustwasher

18.Spring

Groundsmaster

5900&5910

Page7–31

Chassis:ServiceandRepairs

16227SLRevB
