Toro Groundsmaster 5910 Series User Manual

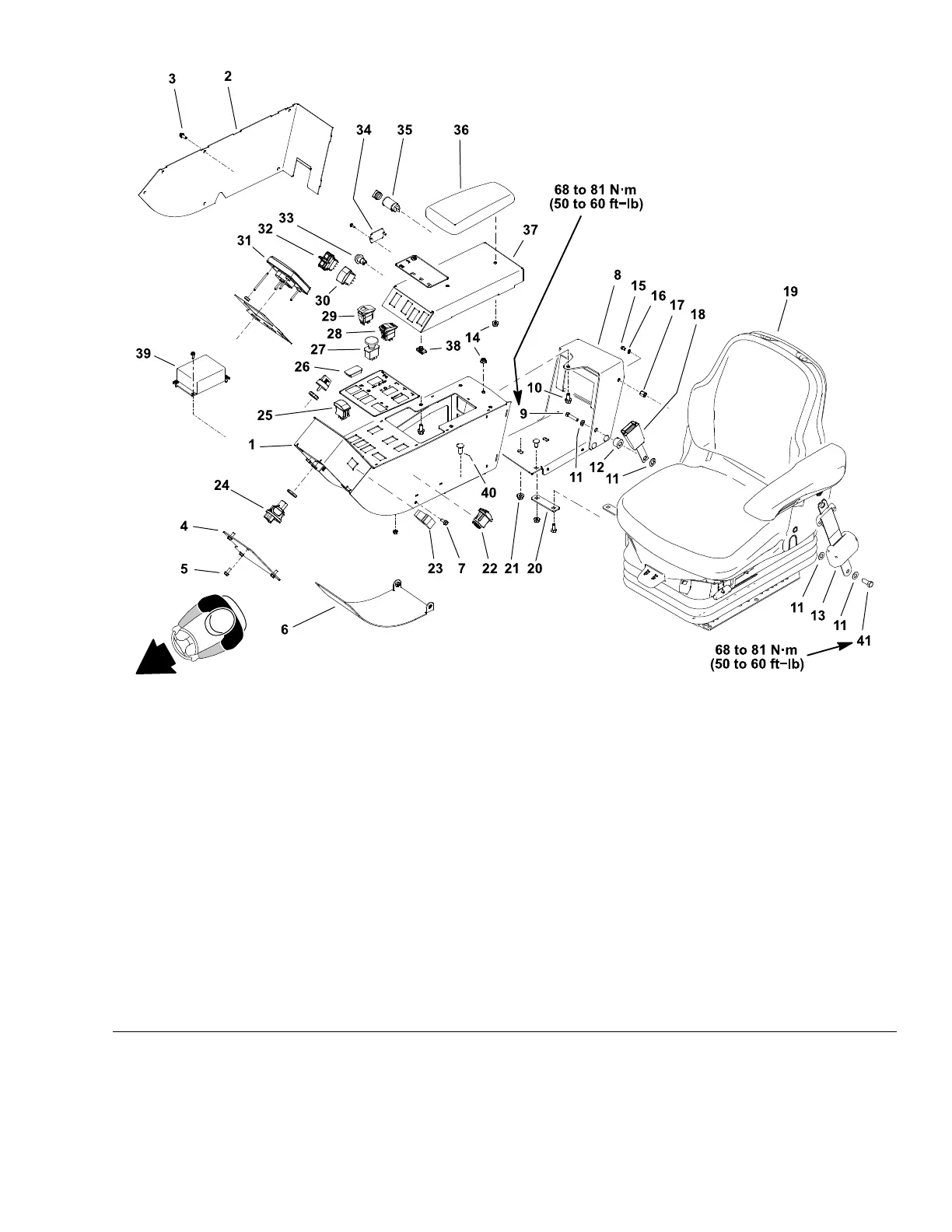

ConsoleArm
g299122
Figure313
1.Consolearm15.Capscrew29.Switch−high/lowrange
2.Sidecover
16.Lockwasher
30.Switch−lift(3)
3.Flangeheadscrew(6)17.Couplingnut31.InfoCenterdisplay
4.Frontcover
18.Seatbeltreceptacle32.Switch−cruisecontrol
5.Flangeheadscrew(4)19.Seatassembly
33.Button−horn
6.Consolegate20.Supportstrap34.Coverplate
7.Flangeheadscrew(2)21.Flangenut(2)
35.Powerport
8.Consolesupport22.Switch−parkingbrake
36.Armrest
9.Capscrew23.Switch−headlight37.Controlpanel
10.Flangeheadscrew
24.Switch−ignition38.Nut−U(4)
11.Flatwasher(4)25.Switch−turnsignal
39.Flasher
12.Spacer
26.Plug−switch
40.Carriagescrew(2)
13.Retractableseatbelt
27.Switch−PTO41.Capscrew
14.Flangenut(3)28.Switch−throttle
Groundsmaster
®
5900&5910
Page7–35
Chassis:ServiceandRepairs
16227SLRevB
