Toro Groundsmaster 5910 Series User Manual

BladeSpindleService

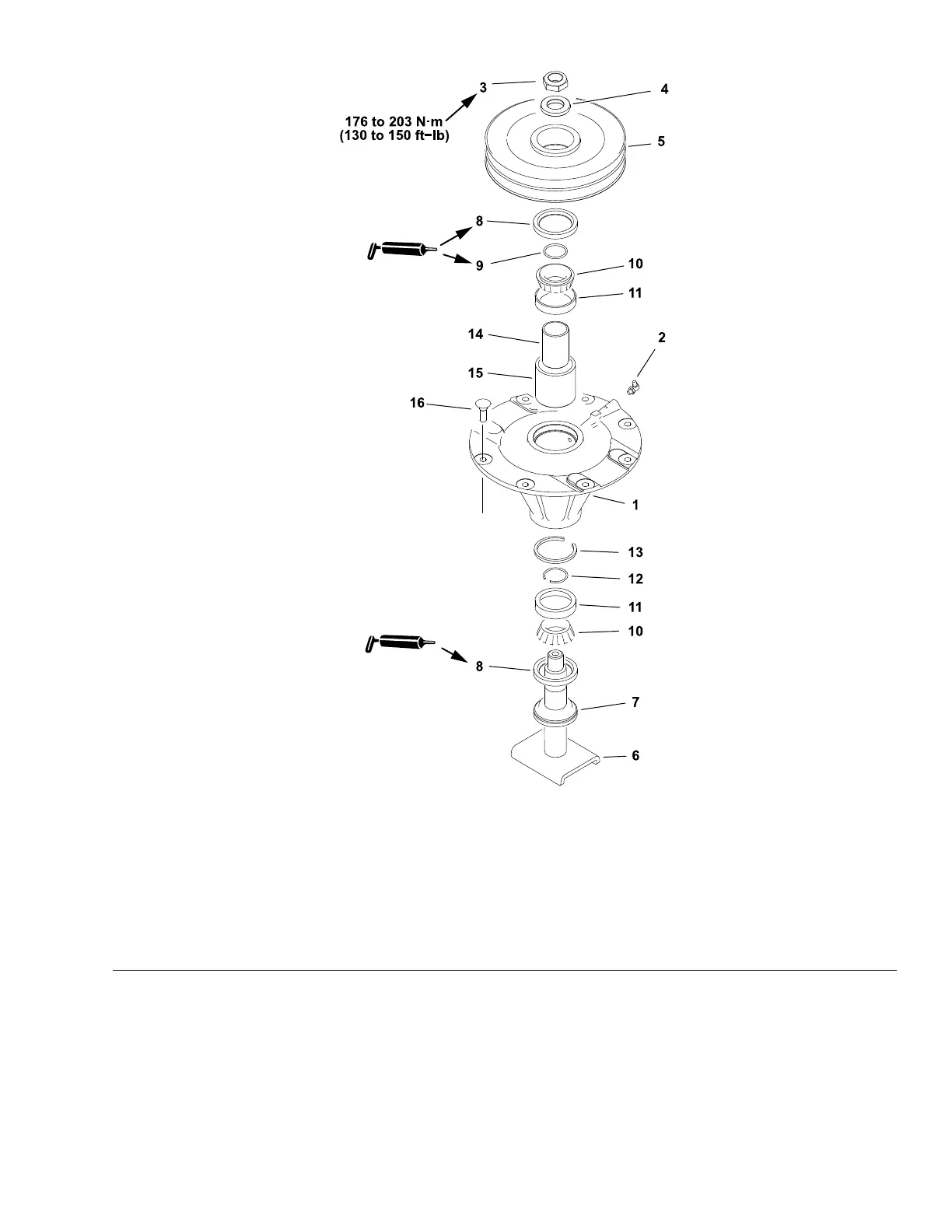

g299693
Figure333
1.Spindlehousing7.Spindlespacer
13.Largesnapring
2.Greasetting8.Seal(2)
14.Innerbearingspacer
3.Locknut
9.O−ring15.Outerbearingspacer
4.Hardenedwasher
10.Bearingcone(2)
16.DriveStud
5.Pulley
11.Bearingcup(2)
6.Spindleshaft12.Spacerring
BladeSpindleDisassembly(Figure333)
1.Loosenandremovelocknutfromtopofspindleshaft.Removehardened
washerandpulleyfromspindle.Fordrivespindle,removehydraulicmotor
mount.
2.Removethespindleshaftfromthespindlehousingwhichmayrequirethe
useofanarborpress.Theshaftspacer(item7)shouldremainonthe
spindleshaft.
Groundsmaster
®
5900&5910
Page8–17
CuttingDecks:ServiceandRepairs
16227SLRevB
