WingDeckLiftArmRemoval(Figure302)
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengineand
removekeyfromthekeyswitch.
2.Removewingdeckfromliftarm(seeWingCuttingDecks(page8–9)).
3.Removewingdeckimpactarmassemblyfrompivothub(seeWingDeck
ImpactArmAssembly(page7–31)).
4.Removejointyokeandcuttingdeckconnectionfromliftarm(Figure305
andFigure306):
A.Supportcuttingdeckconnectiontopreventitfromfalling.
B.Removecotterpin,slottedhexnut,hardenedwasherandthrustwashers
fromjointyokeshaft.
C.Lowerjointyoke,cuttingdeckconnectionandwingdeckimpactarm
assemblyfromliftarm.
5.Removecapscrewandangenutthatsecureliftcylinderpin(item5)tolift
arm.Slidecylinderpinfromliftcylinderandliftarm.Separateliftcylinder
fromliftarm.
6.Removecapscrew(item23)andatwasherfromliftarmpivotshaft.
7.Slidewingdeckimpactarmpivothubandthrustwasher(item29)fromlift
armpivotshaft.
8.Driveoutrollpins(item22)thatretainliftarmpivotshafttoframe.Discard
rollpins.

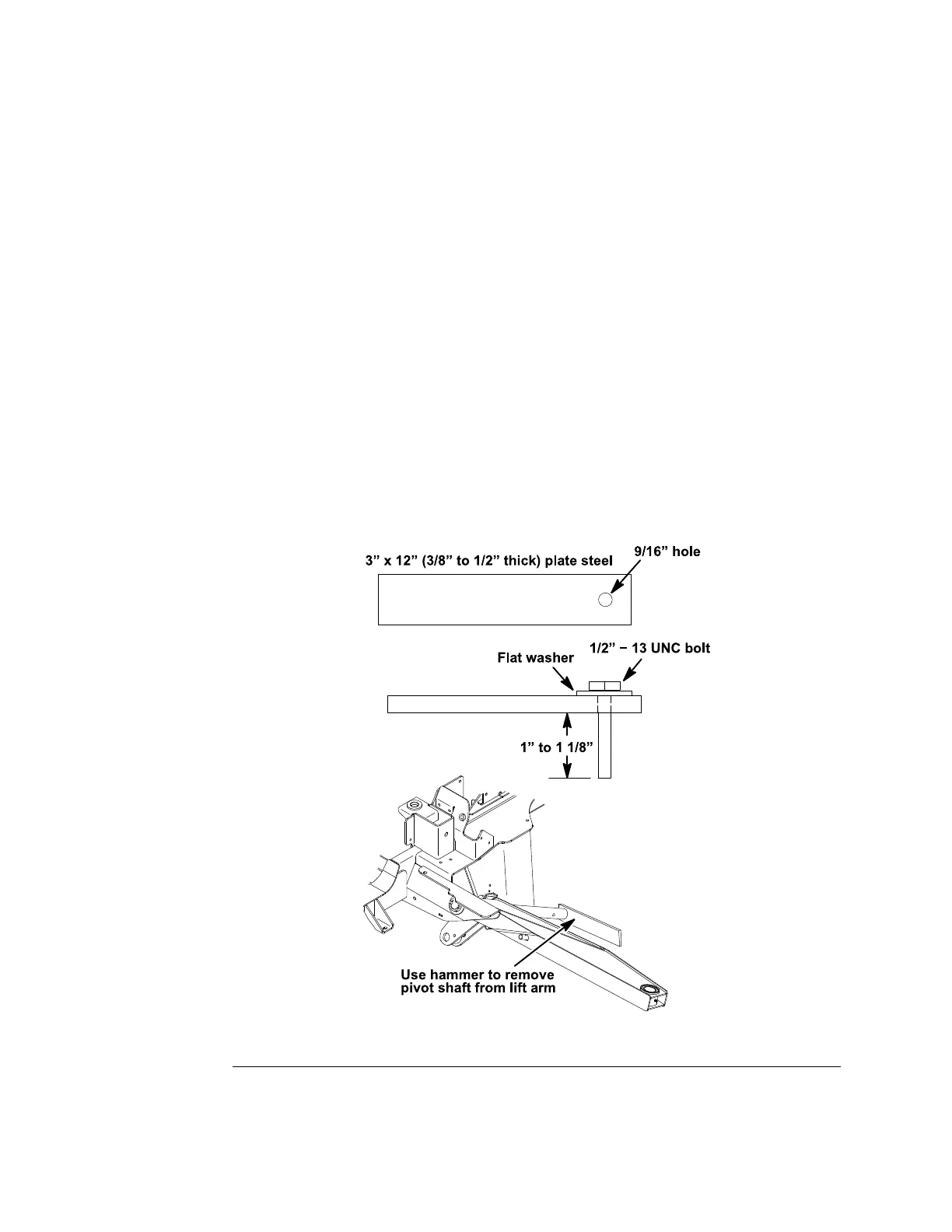

g298891
Figure303
Chassis:ServiceandRepairs
Page7–22
Groundsmaster
®
5900&5910
16227SLRevB
