WingDeckLiftArmInstallation(Figure302)(continued)

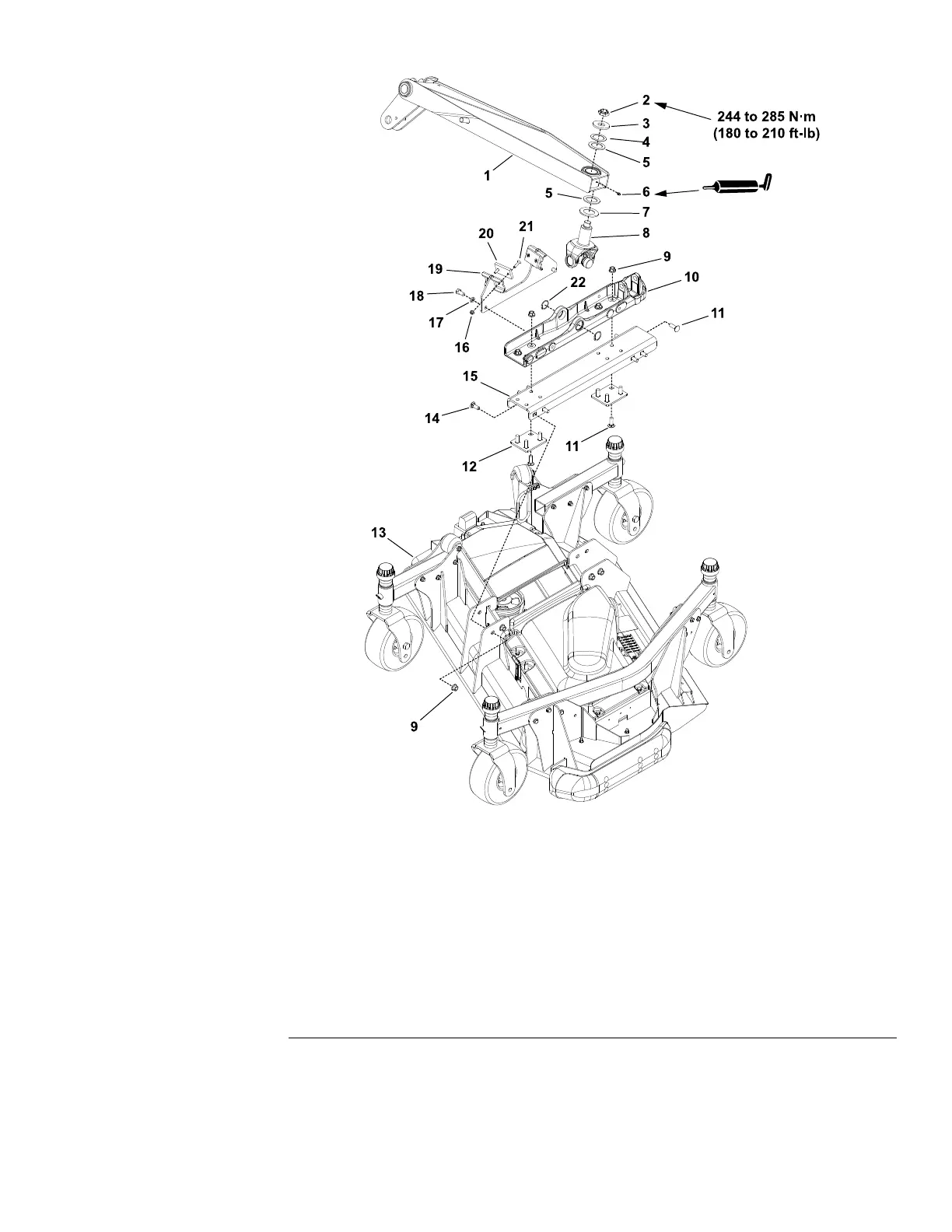

g301648
Figure306
(Formachinesserialnumberabove403450001)
1.Liftarm(LHshown)
8.Yokejoint15.LHchannelassembly
2.Locknut
9.Nut(16each)16.Nut(4each)
3.Hardenedwasher10.Deckmount
17.Lockwasher(2each)
4.Thrustwasher
11.Carriagebolt(10each)18.Bolt(2each)
5.Thrustwasher
12.Spacerplate
19.Deckstop
6.Greasetting13.Leftcuttingdeck20.Bumperpad(2each)
7.Spacer14.Carriagebolt(6each)21.Screw(4each)
7.Installjointyokeandcuttingdeckconnectiontoliftarm(Figure305and
Figure306):
A.Makesurethatspacerandthrustwasherareinstalledonjointyoke.
Groundsmaster
®
5900&5910
Page7–25
Chassis:ServiceandRepairs
16227SLRevB
