Configuration example with TIA® Portal
TR-Electronic GmbH 2008, All Rights Reserved Printed in the Federal Republic of Germany
Page 232 of 252 TR - EMO - BA - DGB - 0019 - 08 06/06/2019
13.3 Incorporating encoTRive into the network
In accordance with the profile, the drive MD-300 or MA-XXX can now be taken out of
the hardware catalog and attached to the PROFINET network.

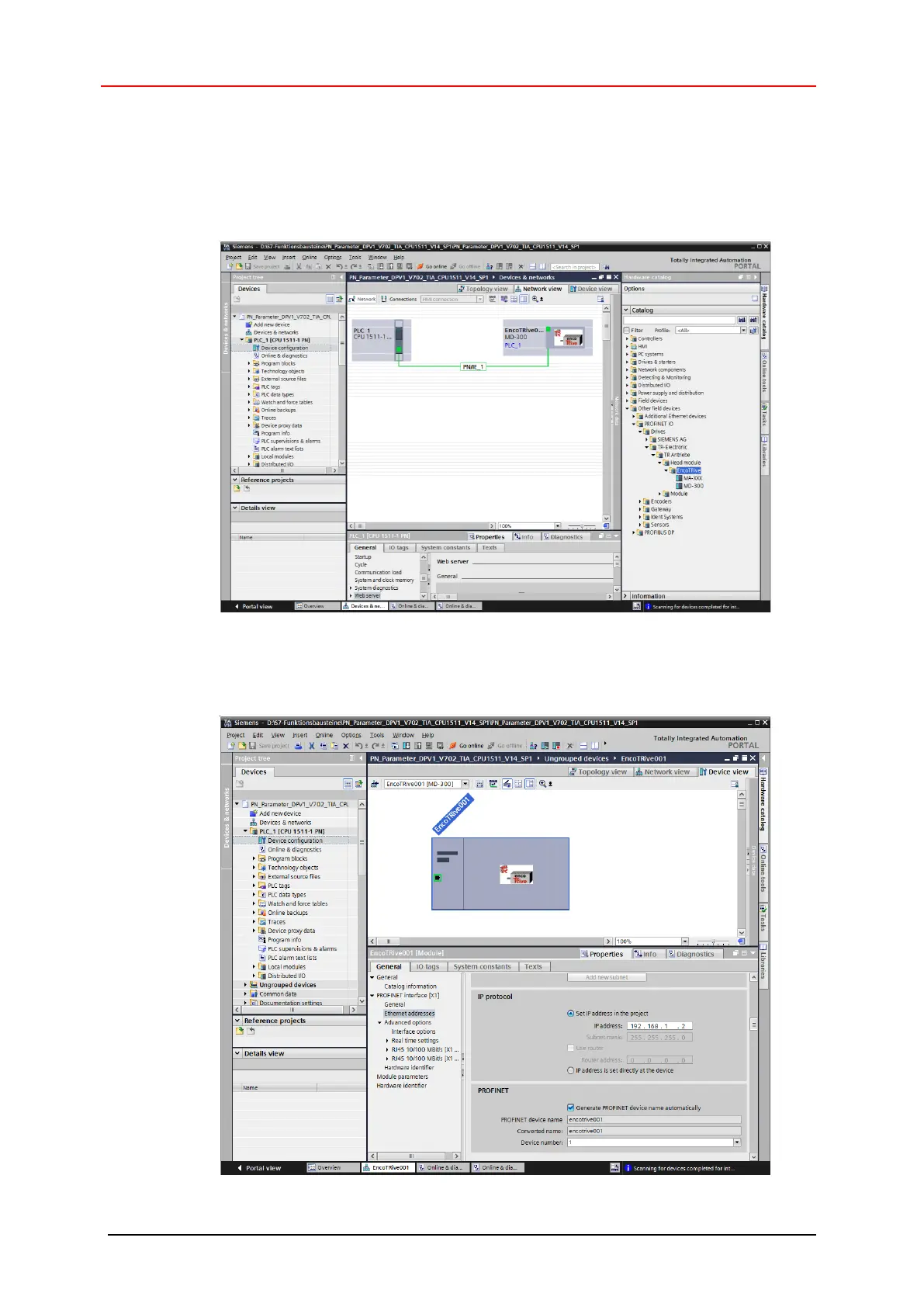

Figure 34: Incorporating encoTRive into the network
For unique identification within the network, the device name previously allocated in
the device must be entered in the properties, furthermore the interface must be
connected and assigned.
Figure 35: Allocation of the device name in the configuration
