9 2D system measurements

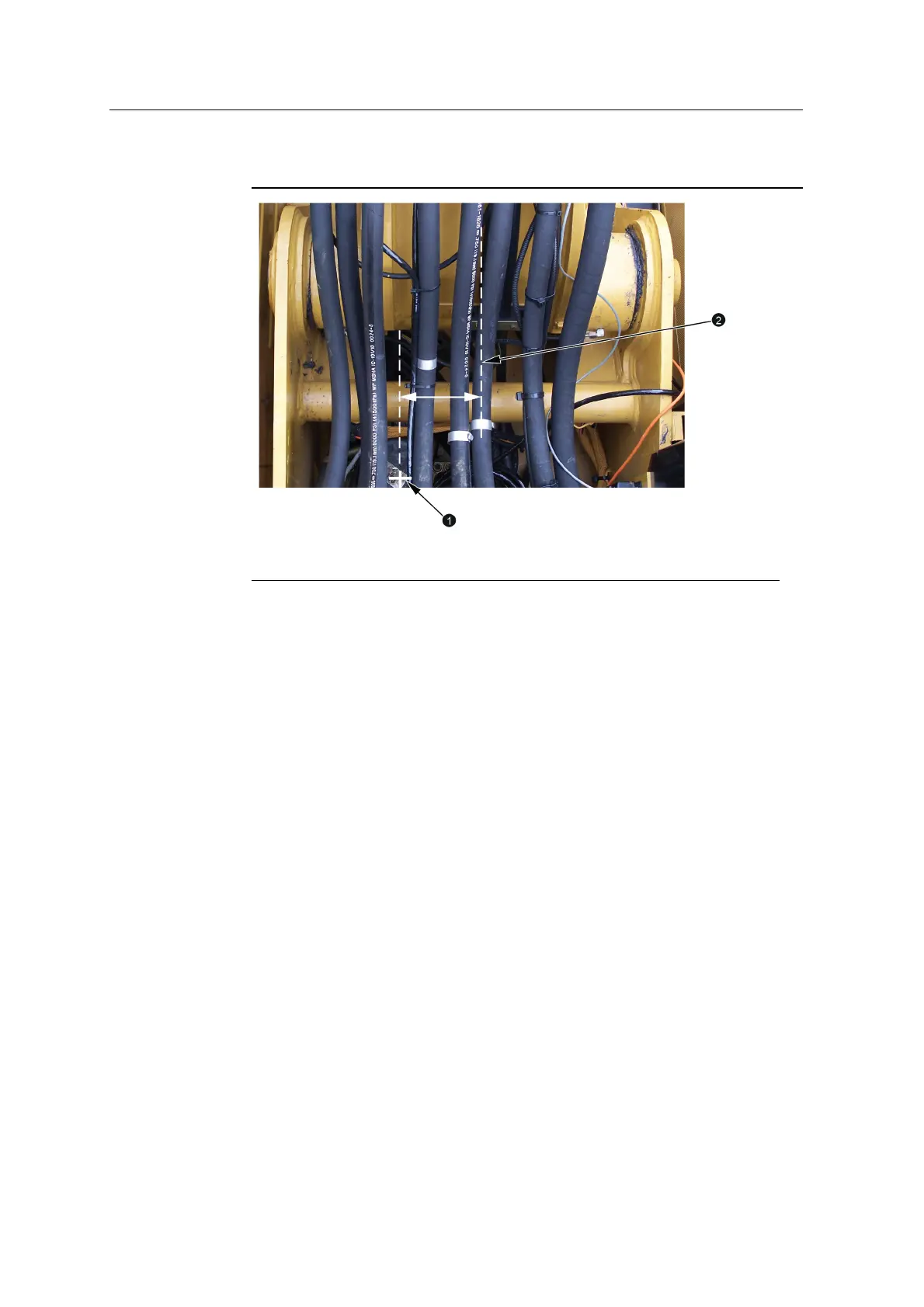

COR to the boom centerline:
1
COR
2
Boom centerline
Measuring the boom pin reach offset
Use a square and a tape measure to find the perpendicular distance from the boom
pin centerline to the COR:
