REP 7.1.1
Initial Issue
Repairs and Adjustments

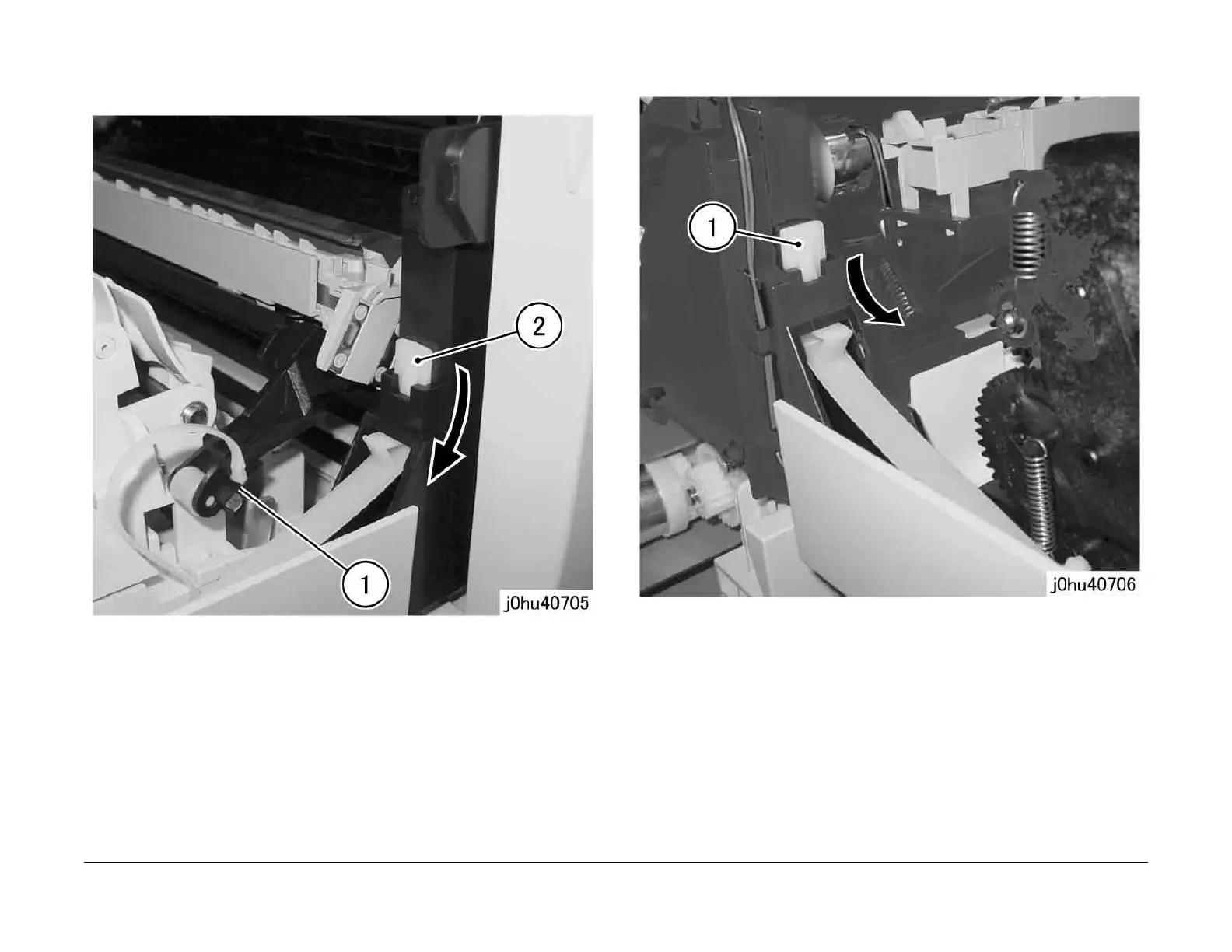

5. Remove the Front Stopper (Figure 3).
1 Remove the Front Stopper from the Registration.
2 Release the tab to remove the Front Stopper.
Figure 3
6. Remove the Rear Stopper (Figure 4).
1 Release the tab to remove the Rear Stopper.
Figure 4
