Xerox WorkCentre 5020 Service Documentation

July, 2007
4-87
WorkCentre 5020
REP 11.4.2
Repairs and Adjustments
Initial Issue
REP 11.4.2 Tray 2 Retard Roll
Parts List on PL 11.4
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
1. Remove Tray 2 (REP 11.1.1).

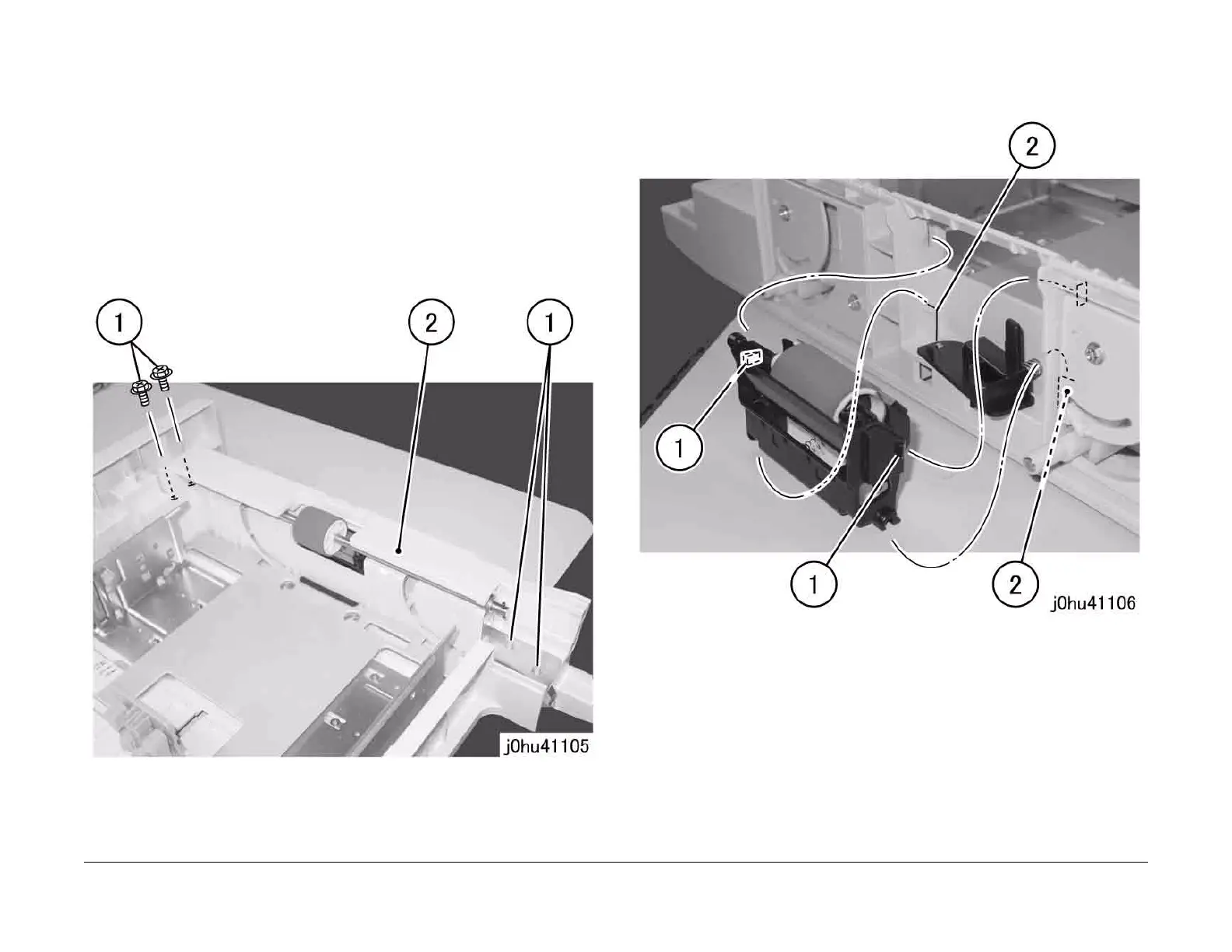

2. Remove the Tray 2 Feeder (Figure 1).
1 Remove the Tapping Screws (4).
2 Remove the Tray 2 Feeder.
Figure 1
3. Remove the Tray 2 Retard Roll Housing (Figure 2).
1 Release the hooks (2).
2 Remove the Tray 2 Retard Roll Housing from the tabs (2).
Figure 2
