5-43
WorkCentre 5020
PL 11.2
Parts List

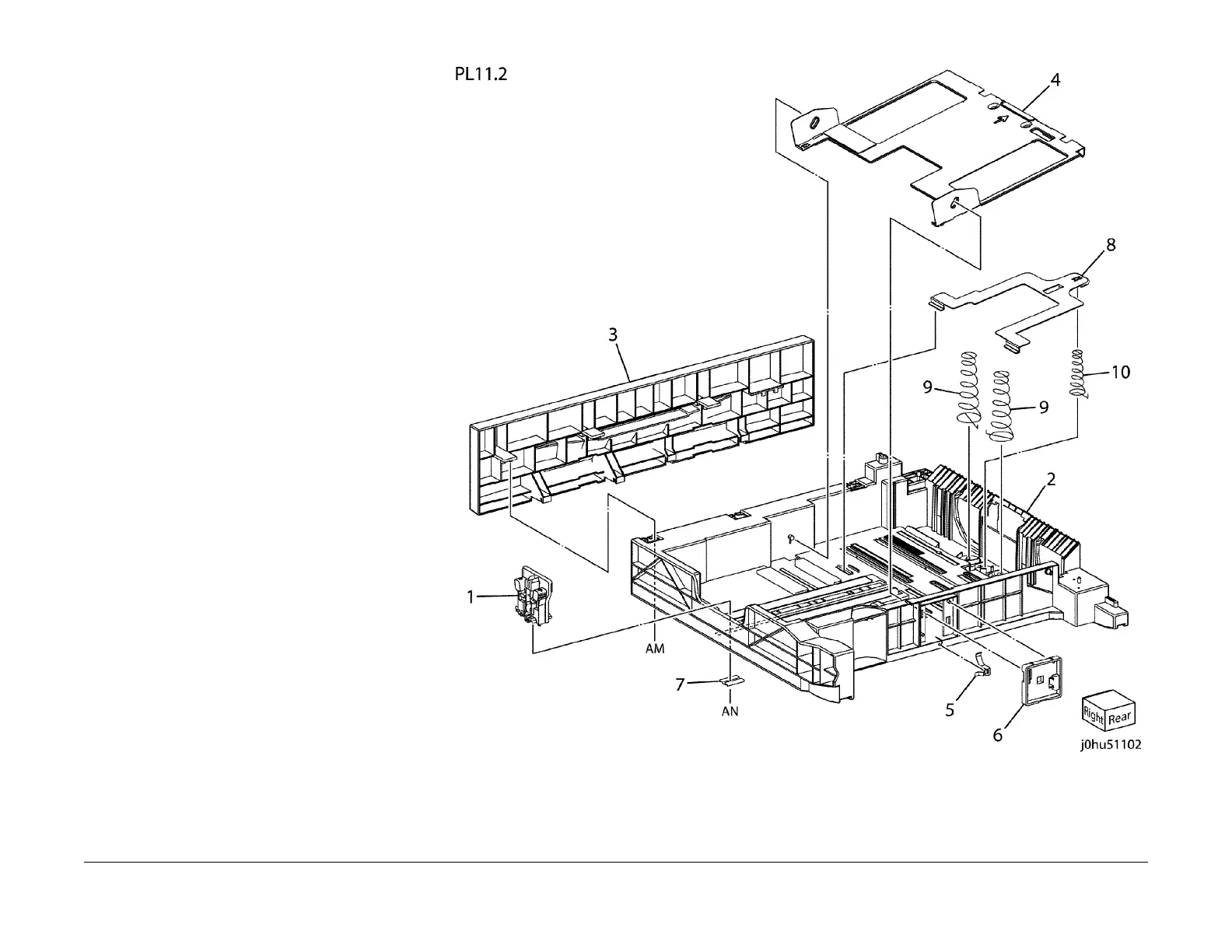

PL 11.2 Tray 2 Component (1 OF 3)
Item Part Description
1 End Guide (P/O PL11.1 Item 1)
2 Tray (P/O PL11.1 Item 1)
3 Tray Front Cover (P/O PL11.1 Item
1)
4 End Guide Spring (P/O PL11.1 Item
1)
5 Earth Plate (P/O PL11.1 Item 1)
6 Cover (P/O PL11.1 Item 1)
7 End Guide Lock (P/O PL11.1 Item
1)
8 Mini Bottom Plate (P/O PL11.1 Item
1)
9 Spring (Side) (P/O PL11.1 Item 1)
10 Spring (Center) (P/O PL11.1 Item 1)
