Xerox WorkCentre 5020 Service Documentation

07/26/2007
5-24
WorkCentre 5020
PL 6.2
Parts List

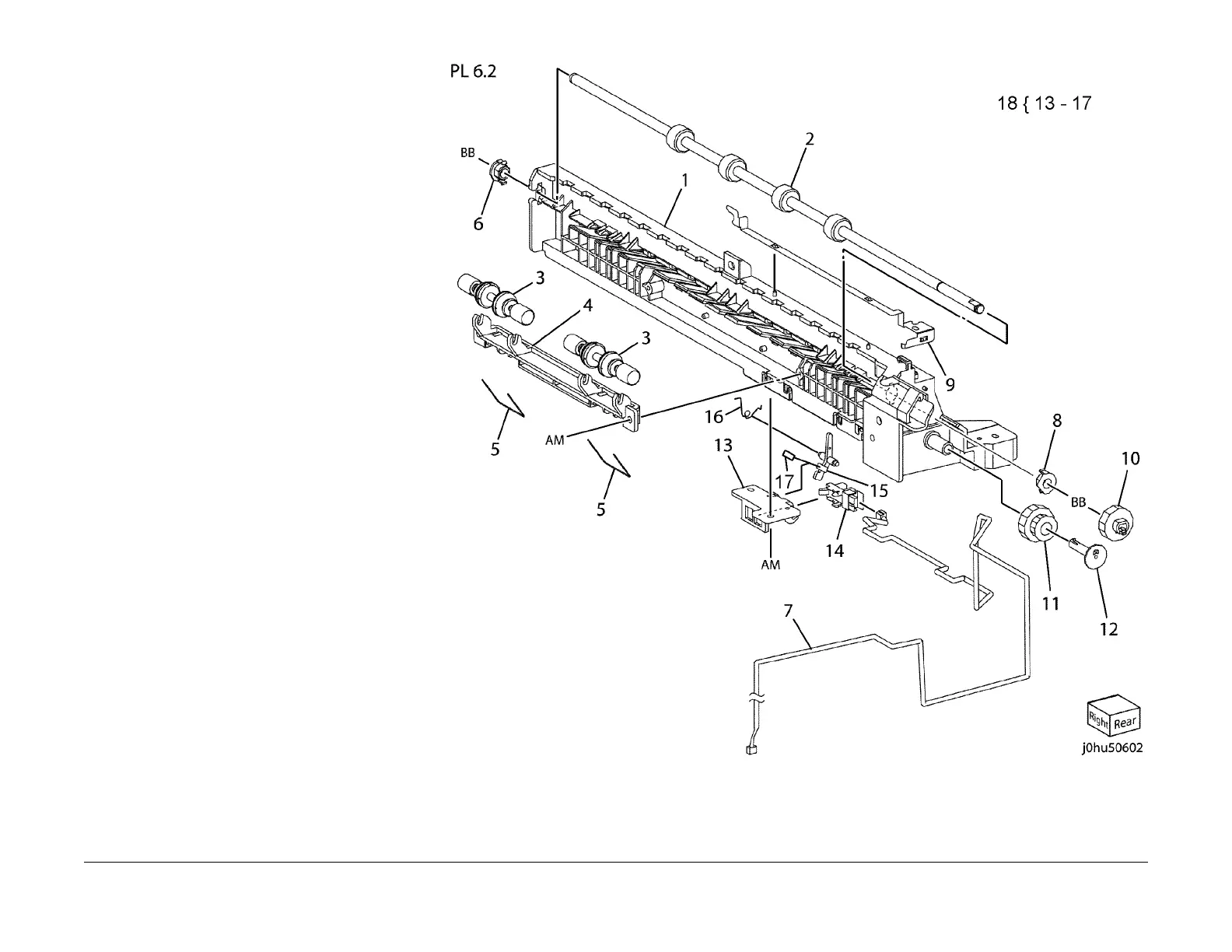

PL 6.2 Exit Transport Component
(Simplex)
Item Part Description
1 – Lower Chute (P/O PL6.1 Item 1)
2 059K43000 Exit Roll
3 059E99331 Pinch Roll
4 – Pinch Roll Support (P/O PL6.1 Item
1)
5 809E76520 Pinch Spring
6 013E30050 Bearing
7 – Sensor Wire Harness (P/O PL6.1
Item 1)
8 – Bearing (P/O PL6.1 Item 1)
9 – Earth Plate (P/O PL6.1 Item 1)
10 – Gear (19T) (P/O PL6.1 Item 1)
11 – Gear Pulley (P/O PL6.1 Item 1)
12 – Cap (P/O PL6.1 Item 1)
13 – Sensor Support (P/O Item 18)
14 130E87090 Fuser Exit Sensor
15 – Actuator (P/O Item 18)
16 – Actuator Spring (P/O Item 18)
17 – Insulator (P/O Item 18)
18 604K43840 Exit Sensor Kit
