Xerox WorkCentre 5020 Service Documentation

July, 2007
4-35
WorkCentre 5020
REP 5.1.4
Repairs and Adjustments
Initial Issue
REP 5.1.4 Fuser Roll
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or electrical shock, ensure that the machine is completely off
before disassembling or adjusting. Turn OFF the power and unplug the machine.
WARNING
The Fuser and Exit Transport are hot. Do not work on them until they are cool enough.
CAUTION
Do not touch the glass part of the Fuser Lamp unless you are are wearing gloves.
1. Remove the Fuser Lamp (REP 5.1.3).
2. Remove the Fuser Cover (Figure 1).
1 Remove the 2 Screws.
2 Remove the Fuser Cover.
NOTE: Do not lose the Cover Mount (Figure 2).

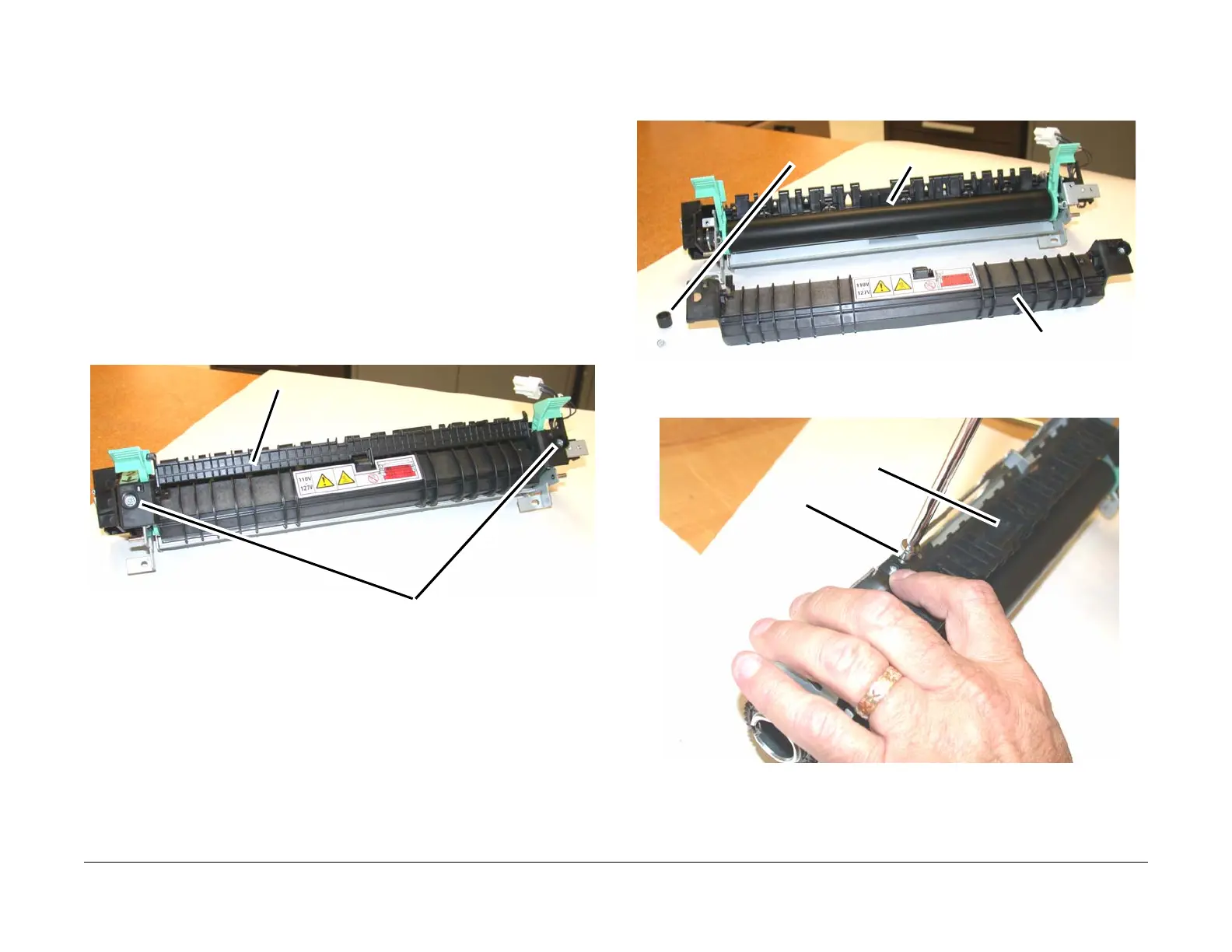

Figure 1 Removing the Fuser Cover
3. Remove the Stripper Finger Assembly (Figure 2 and Figure 3).
1 Remove the Screw.
2 Remove the Stripper Finger Assembly.
Figure 2 Fuser Cover Removed
Figure 3 Removing the Stripper Finger Assembly
Screws
Fuser Cover
Fuser Cover
Cover Mount
Stripper Finger Assembly
Screw
Stripper Finger Assembly
