Xerox WorkCentre 5020 Service Documentation

07/26/2007
5-28
WorkCentre 5020
PL 7.6
Parts List

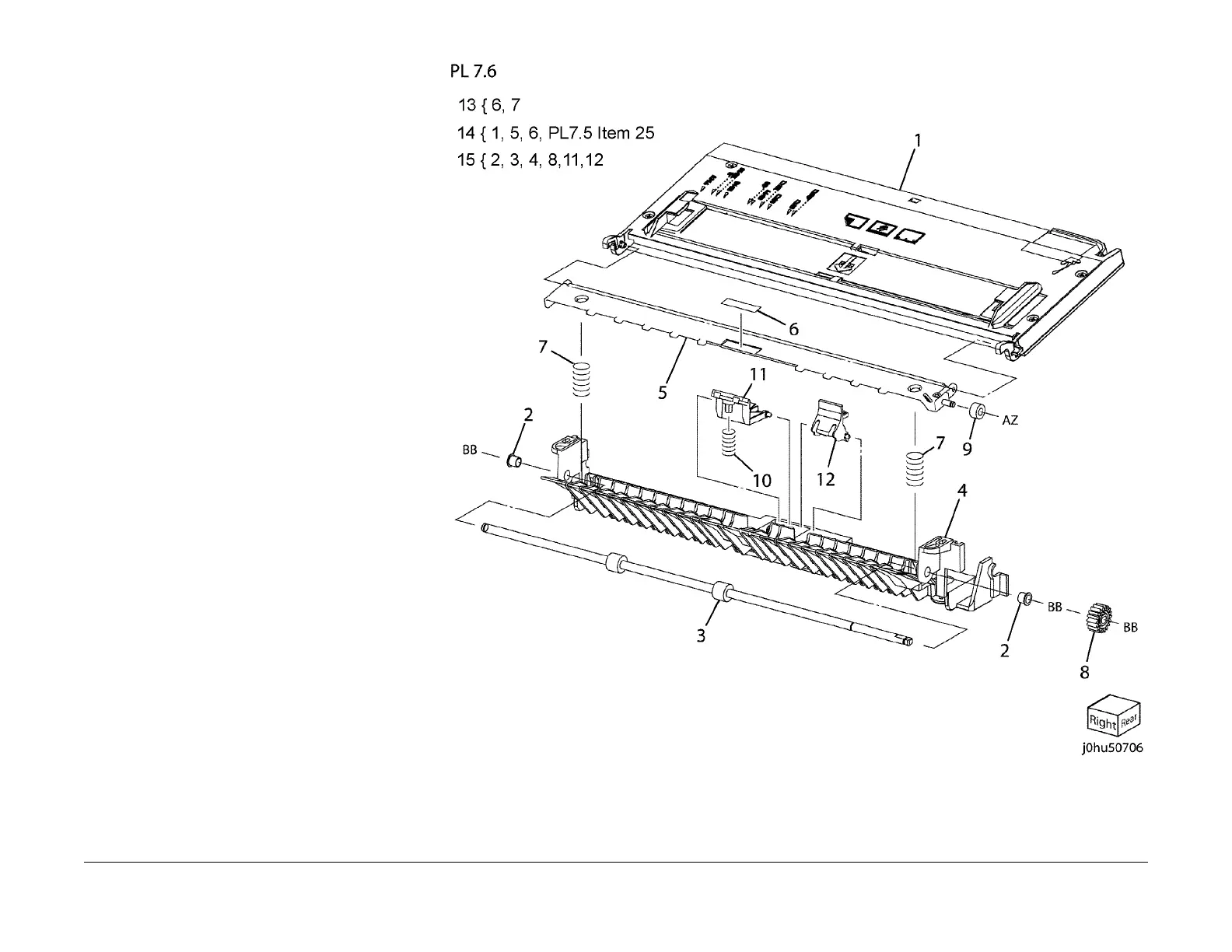

PL 7.6 Bypass Tray Component
Item Part Description
1 050K58051 Bypass Tray Assembly
2 – Bearing (P/O Item 15)
3 – Bypass Take Away Roll (P/O Item
15)
4 – Lower Baffle (P/O Item 15)
5 – Nudger Plate (P/O Item 14)
6 – Nudger Pad (P/O Item 13, Item 14)
7 – Nudger Spring (P/O Item 13, PL7.5
Item 29)
8 – Gear (18T) (P/O Item 15)
9 – Roll (Not Spared)
10 – Retard Spring (P/O PL7.5 Item 24)
11 019K08890 Retard Pad Assembly
12 – Pre Shingler Bracket (P/O Item 15)
13 604K43830 Bypass Retard Kit
14 604K45740 MSI Assembly No. 1 Repair Kit
15 604K45760 MSI Assembly No. 3 Repair Kit

Xerox WorkCentre 5020 Specifications

General

Print Technology	Laser
Print Speed	Up to 20 ppm
Print Resolution	Up to 600 x 600 dpi
Max Paper Size	A3
Standard Paper Capacity	250 sheets
Bypass Tray Capacity	100 sheets
Duplex Printing	Manual
Copy Speed	Up to 20 cpm
First Page Out Time (Copying)	Less than 10 seconds
Scan Resolution	Up to 600 x 600 dpi
Operating System Compatibility	Windows, Mac OS
Automatic Document Feeder	50 sheets
Connectivity	USB 2.0
Functions	Print, Copy
Reduction / Enlargement	25% - 400%
Scan Destinations	USB, Email
Fax Transmission Speed	33.6 kbps
First Page Out Time (Printing)	Less than 8 seconds
